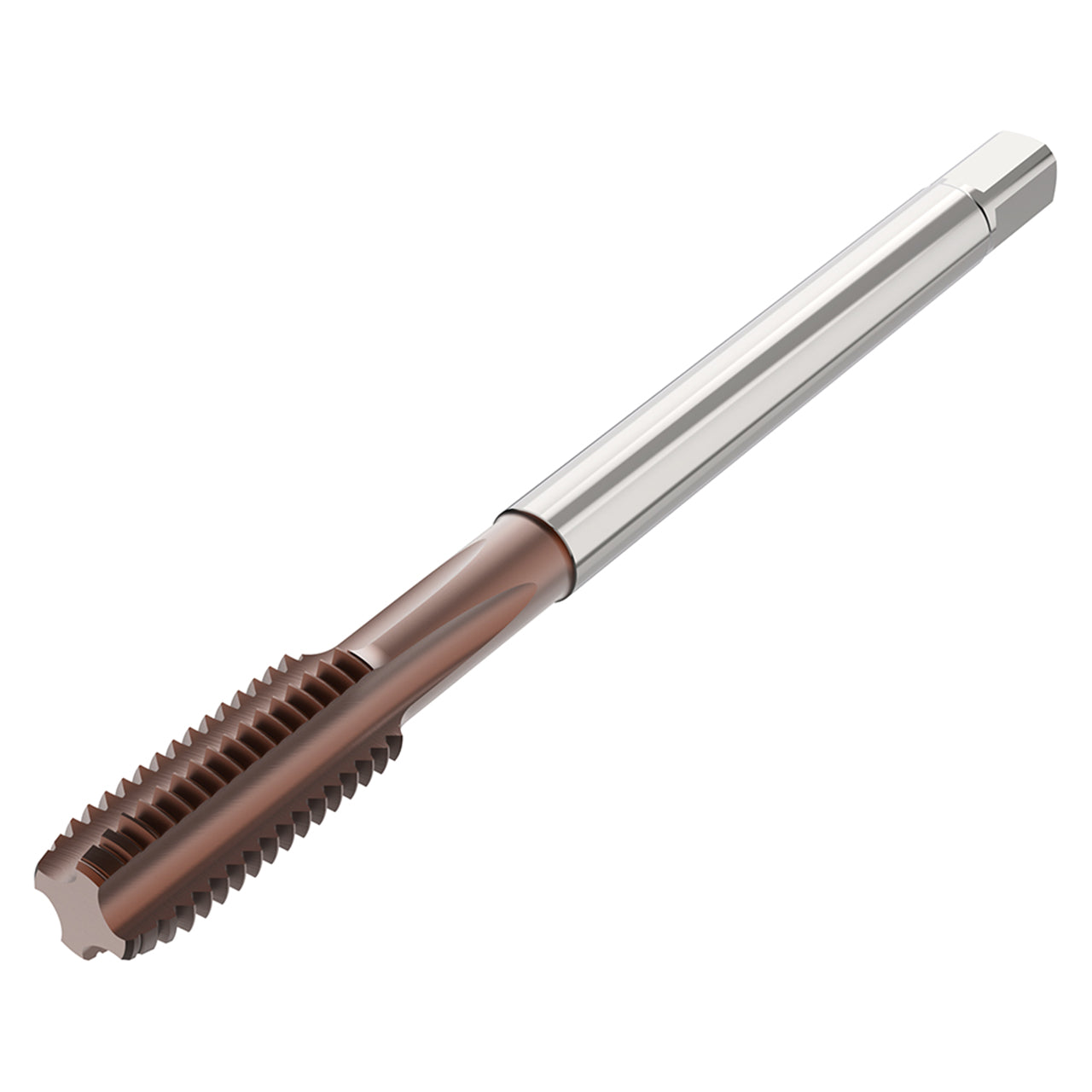

Product Specifications
| Manufacturer Part Number | 10310002 |
| Machine Side Connection Diameter (Decimal Inch) | 0.433" |
| Shank Diameter (Decimal Inch) | 0.433" |
| Functional length (Decimal Inch) | 4.102" |
| Usable Length (Decimal Inch) | 3.189" |
| Overall Length (Decimal Inch) | 4.331" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.472" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.481" |
| Tap Chamfer Length (Decimal Inch) | 0.227" |
| Thread Diameter (Decimal Inch) | 0.551" |
| Thread Diameter Size | M14 |
| Threading Chamfer Length (Decimal Inch) | 0.227" |
| Thread Length (Decimal Inch) | 0.984" |
| Minimum Thread Pitch (Decimal Inch) | 0.079" |
| Maximum Thread Pitch (Decimal Inch) | 0.079" |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Connection Size Code | 11.00 x 9.00 |
| Machine Side Connection Size Code | 11.00 x 9.00 |
| Number of Flutes | 4 |
| Basic Standard Group | DIN376 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlSiN |
| Material | High Speed Steel-E-PM |
| Product Type | Straight Flute Tap |
