Product Specifications
| Manufacturer Part Number | 10309981 |
| Machine Side Connection Diameter (Decimal Inch) | 0.177" |
| Shank Diameter (Decimal Inch) | 0.177" |
| Functional length (Decimal Inch) | 2.402" |
| Usable Length (Decimal Inch) | 0.807" |
| Overall Length (Decimal Inch) | 2.543" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.130" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.135" |
| Tap Chamfer Length (Decimal Inch) | 0.077" |
| Thread Diameter (Decimal Inch) | 0.158" |
| Thread Diameter Size | M4 |
| Threading Chamfer Length (Decimal Inch) | 0.077" |
| Thread Length (Decimal Inch) | 0.472" |
| Minimum Thread Pitch (Decimal Inch) | 0.028" |
| Maximum Thread Pitch (Decimal Inch) | 0.028" |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Connection Size Code | 4.50 x 3.40 |
| Machine Side Connection Size Code | 4.50 x 3.40 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN371 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlSiN |
| Material | High Speed Steel-E-PM |

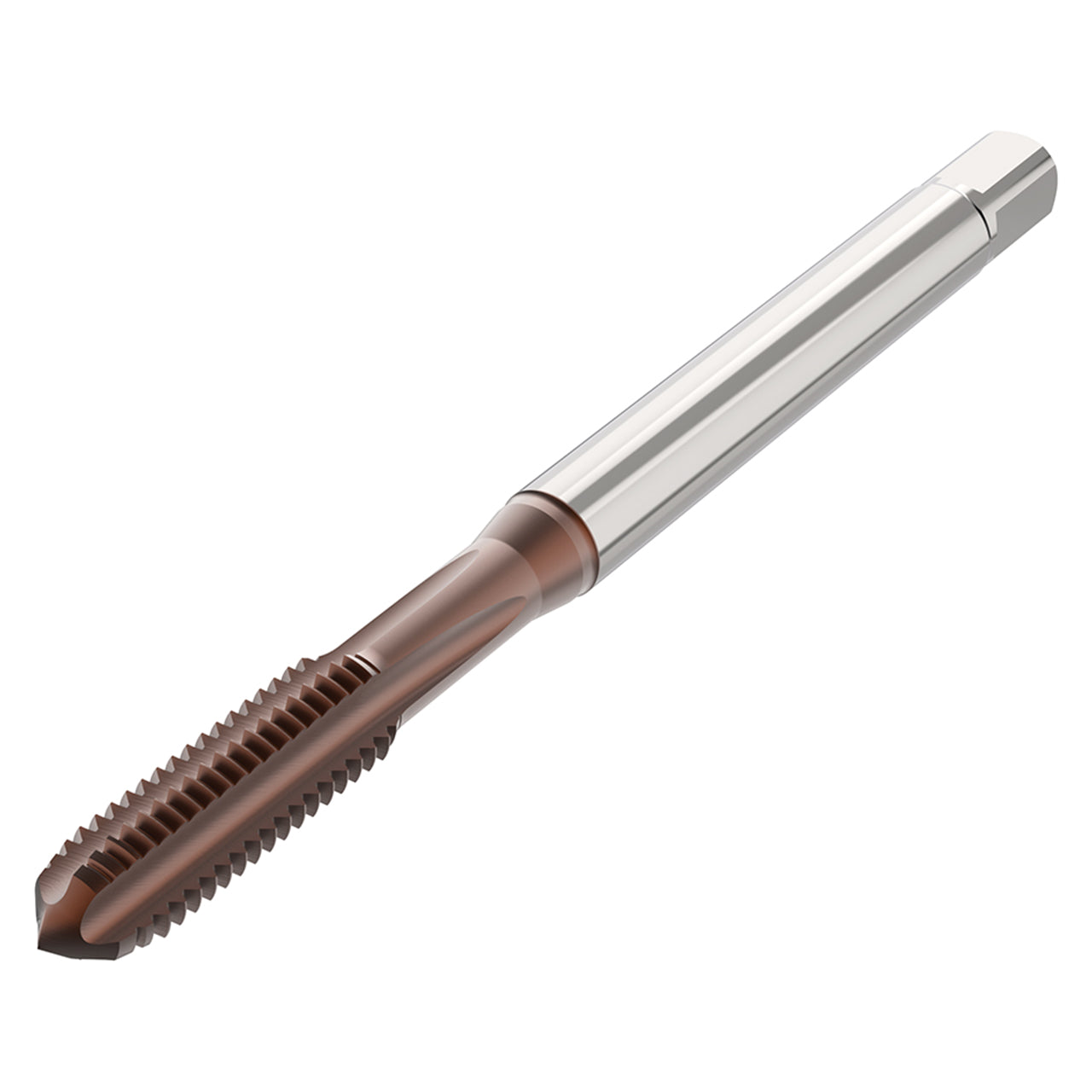

| Product Type | Straight Flute Tap |
