Product Specifications
| Manufacturer Part Number | 10309932 |
| Machine Side Connection Diameter (Decimal Inch) | 0.138" |
| Shank Diameter (Decimal Inch) | 0.138" |
| Functional length (Decimal Inch) | 2.118" |
| Usable Length (Decimal Inch) | 0.709" |
| Overall Length (Decimal Inch) | 2.252" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.098" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.102" |
| Tap Chamfer Length (Decimal Inch) | 0.089" |
| Thread Diameter (Decimal Inch) | 0.118" |
| Thread Diameter Size | M3 |
| Threading Chamfer Length (Decimal Inch) | 0.089" |
| Thread Length (Decimal Inch) | 0.394" |
| Minimum Thread Pitch (Decimal Inch) | 0.020" |
| Maximum Thread Pitch (Decimal Inch) | 0.020" |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Connection Size Code | 3.50 x 2.70 |
| Machine Side Connection Size Code | 3.50 x 2.70 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN371 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | TiAlSiN |
| Material | High Speed Steel-E-PM |

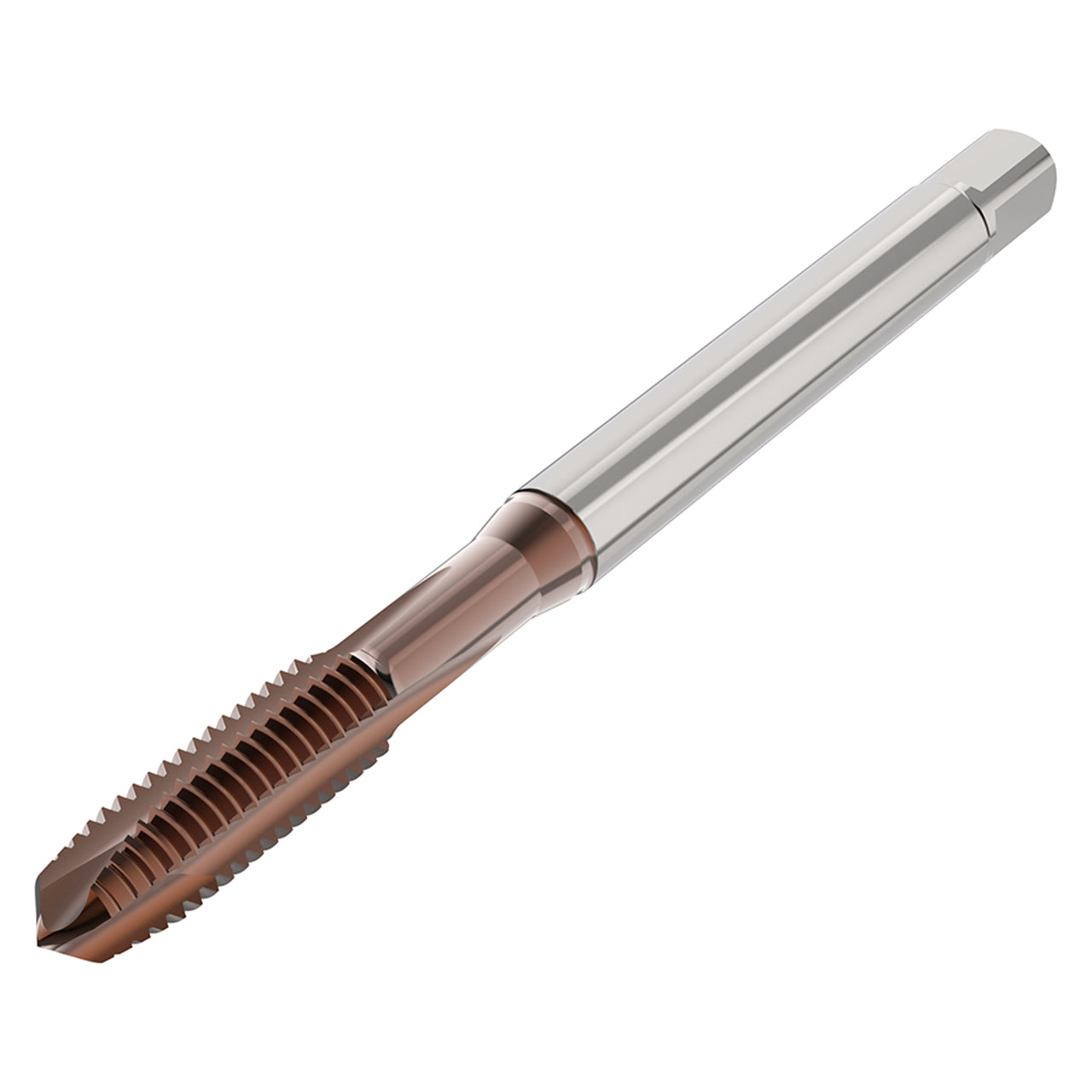

| Product Type | Spiral Point Tap |
