Product Specifications
| Manufacturer Part Number | 10309864 |
| Machine Side Connection Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (Decimal Inch) | 0.315" |
| Functional length (Decimal Inch) | 3.441" |
| Usable Length (Decimal Inch) | 1.378" |
| Overall Length (Decimal Inch) | 3.610" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.276" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.282" |
| Tap Chamfer Length (Decimal Inch) | 0.102" |
| Thread Diameter (Decimal Inch) | 0.315" |
| Thread Diameter Size | MF 8 x 1 |
| Threading Chamfer Length (Decimal Inch) | 0.102" |
| Thread Length (Decimal Inch) | 0.512" |
| Minimum Thread Pitch (Decimal Inch) | 0.039" |
| Maximum Thread Pitch (Decimal Inch) | 0.039" |
| Threading Chamfer Type | C |
| Thread Form Type | MF |
| Connection Size Code | 8.00 x 6.20 |
| Machine Side Connection Size Code | 8.00 x 6.20 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN371 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Coating | TiAlSiN |
| Material | High Speed Steel-E-PM |

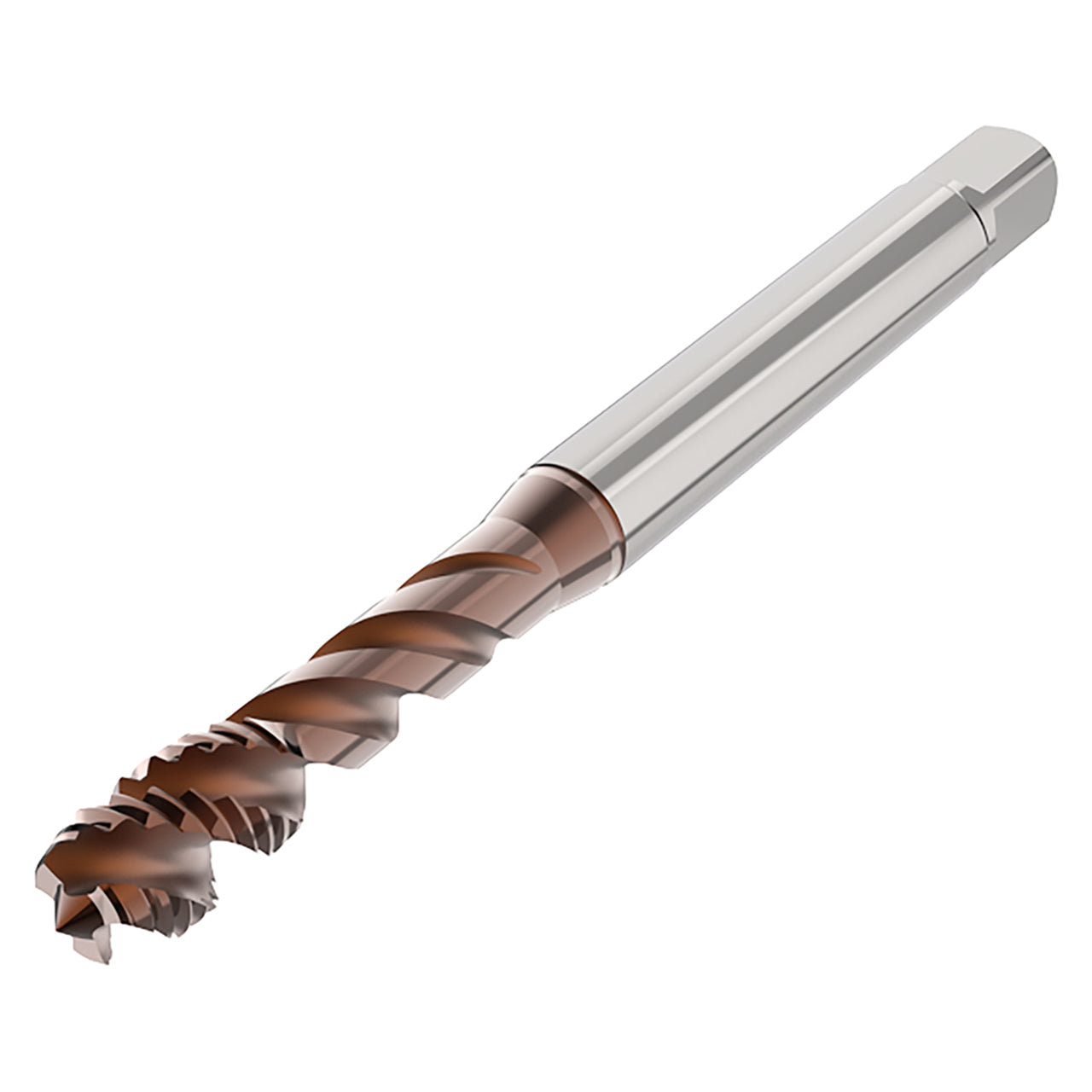

| Product Type | Spiral Flute Tap |
