Product Specifications
| Manufacturer Part Number | 10309782 |
| Machine Side Connection Diameter (Decimal Inch) | 1.102" |
| Shank Diameter (Decimal Inch) | 1.102" |
| Functional length (Decimal Inch) | 7.114" |
| Usable Length (Decimal Inch) | 5.158" |
| Overall Length (Decimal Inch) | 7.874" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.339" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.350" |
| Tap Chamfer Length (Decimal Inch) | 0.760" |
| Thread Diameter (Decimal Inch) | 1.500" |
| Thread Diameter Size | UNC 11/2 - 6 |
| Threading Chamfer Length (Decimal Inch) | 0.760" |
| Thread Length (Decimal Inch) | 2.165" |
| Minimum Threads per Inch (TPI) | 6.00 TPI |
| Maximum Threads per Inch (TPI) | 6.00 TPI |
| Threading Chamfer Type | B |
| Thread Form Type | UNC |
| Connection Size Code | 28.00 x 22.00 |
| Machine Side Connection Size Code | 28.00 x 22.00 |
| Number of Flutes | 4 |
| Basic Standard Group | DIN376 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

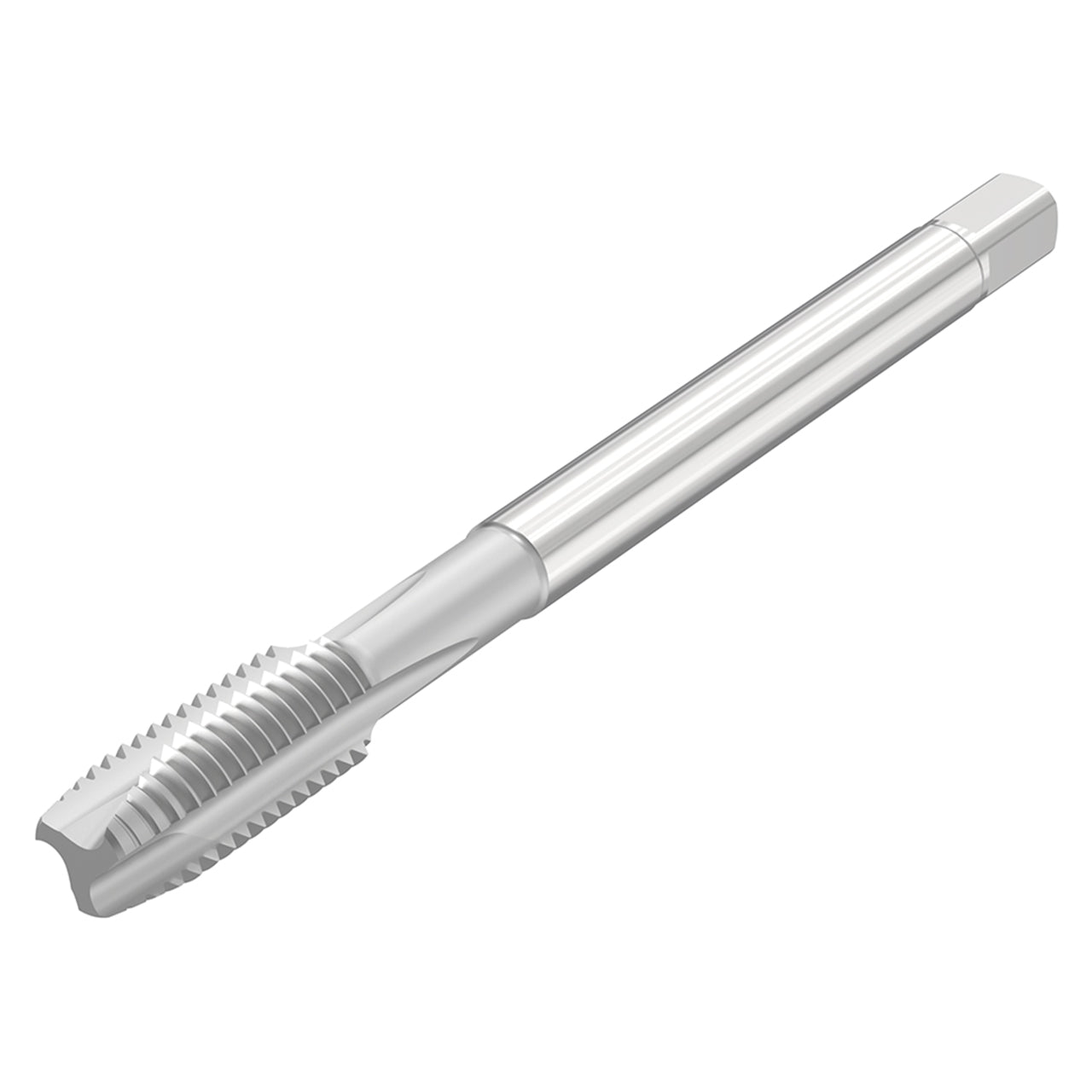

| Product Type | Spiral Point Tap |
