Product Specifications
| Manufacturer Part Number | 10309781 |
| Machine Side Connection Diameter (Decimal Inch) | 1.575" |
| Shank Diameter (Decimal Inch) | 1.575" |
| Functional length (Decimal Inch) | 8.972" |
| Usable Length (Decimal Inch) | 5.748" |
| Overall Length (Decimal Inch) | 9.843" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.850" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.862" |
| Tap Chamfer Length (Decimal Inch) | 0.869" |
| Thread Diameter (Decimal Inch) | 2.047" |
| Thread Diameter Size | M52 |
| Threading Chamfer Length (Decimal Inch) | 0.869" |
| Thread Length (Decimal Inch) | 2.559" |
| Minimum Thread Pitch (Decimal Inch) | 0.197" |
| Maximum Thread Pitch (Decimal Inch) | 0.197" |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Connection Size Code | 40.00 x 32.00 |
| Machine Side Connection Size Code | 40.00 x 32.00 |
| Number of Flutes | 5 |
| Basic Standard Group | DIN376 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

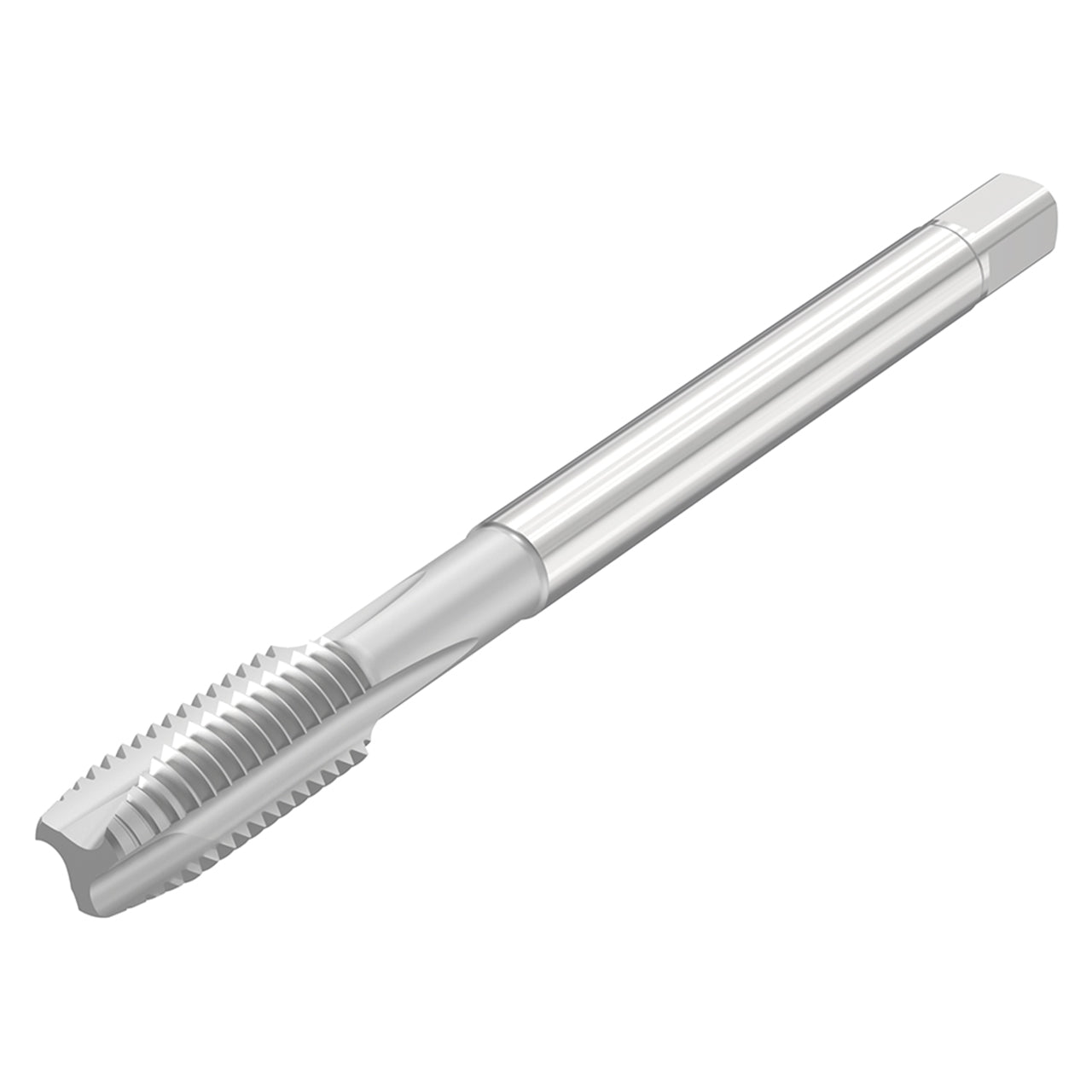

| Product Type | Spiral Point Tap |
