Product Specifications
| Manufacturer Part Number | 10309780 |
| Machine Side Connection Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (Decimal Inch) | 0.787" |
| Functional length (Decimal Inch) | 5.992" |
| Usable Length (Decimal Inch) | 3.819" |
| Overall Length (Decimal Inch) | 6.299" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.945" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.955" |
| Tap Chamfer Length (Decimal Inch) | 0.308" |
| Thread Diameter (Decimal Inch) | 0.945" |
| Thread Diameter Size | M27 |
| Threading Chamfer Length (Decimal Inch) | 0.308" |
| Thread Length (Decimal Inch) | 1.181" |
| Minimum Thread Pitch (Decimal Inch) | 0.118" |
| Maximum Thread Pitch (Decimal Inch) | 0.118" |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Connection Size Code | 20.00 x 16.00 |
| Machine Side Connection Size Code | 20.00 x 16.00 |
| Number of Flutes | 4 |
| Basic Standard Group | DIN376 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Coating | Vaporised |
| Material | High Speed Steel-E |

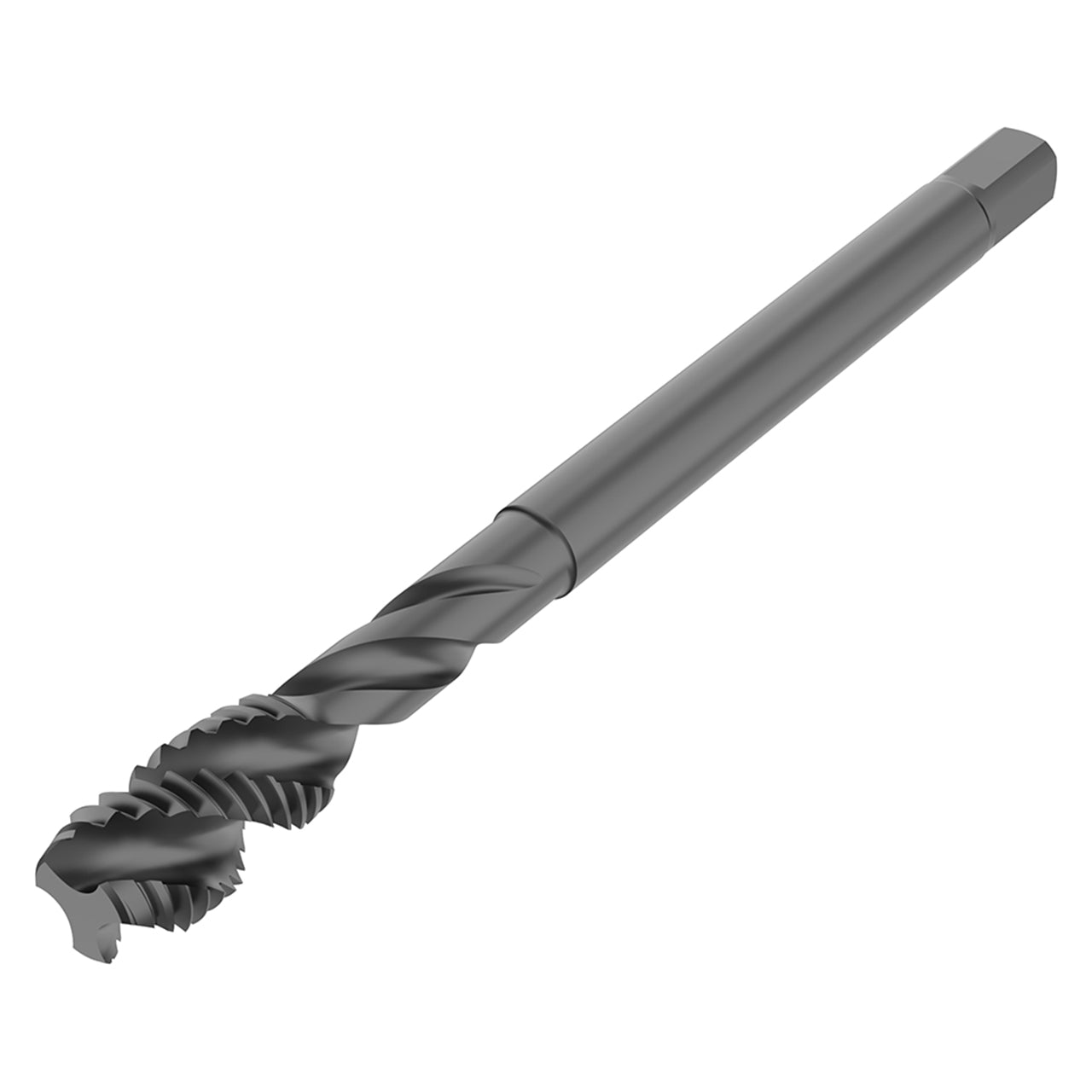

| Product Type | Spiral Flute Tap |
