Product Specifications
| Manufacturer Part Number | 10309722 |
| Machine Side Connection Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (Decimal Inch) | 0.236" |
| Functional length (Decimal Inch) | 3.445" |
| Usable Length (Decimal Inch) | 2.638" |
| Overall Length (Decimal Inch) | 3.543" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.242" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.242" |
| Tap Chamfer Length (Decimal Inch) | 0.100" |
| Thread Diameter (Decimal Inch) | 0.304" |
| Thread Diameter Size | Rc 1/16 |
| Threading Chamfer Length (Decimal Inch) | 0.100" |
| Thread Length (Decimal Inch) | 0.591" |
| Minimum Threads per Inch (TPI) | 28.00 TPI |
| Maximum Threads per Inch (TPI) | 28.00 TPI |
| Threading Chamfer Type | C |
| Thread Form Type | Rc |
| Connection Size Code | 6.00 x 4.90 |
| Machine Side Connection Size Code | 6.00 x 4.90 |
| Number of Flutes | 3 |
| Basic Standard Group | DIN5156 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

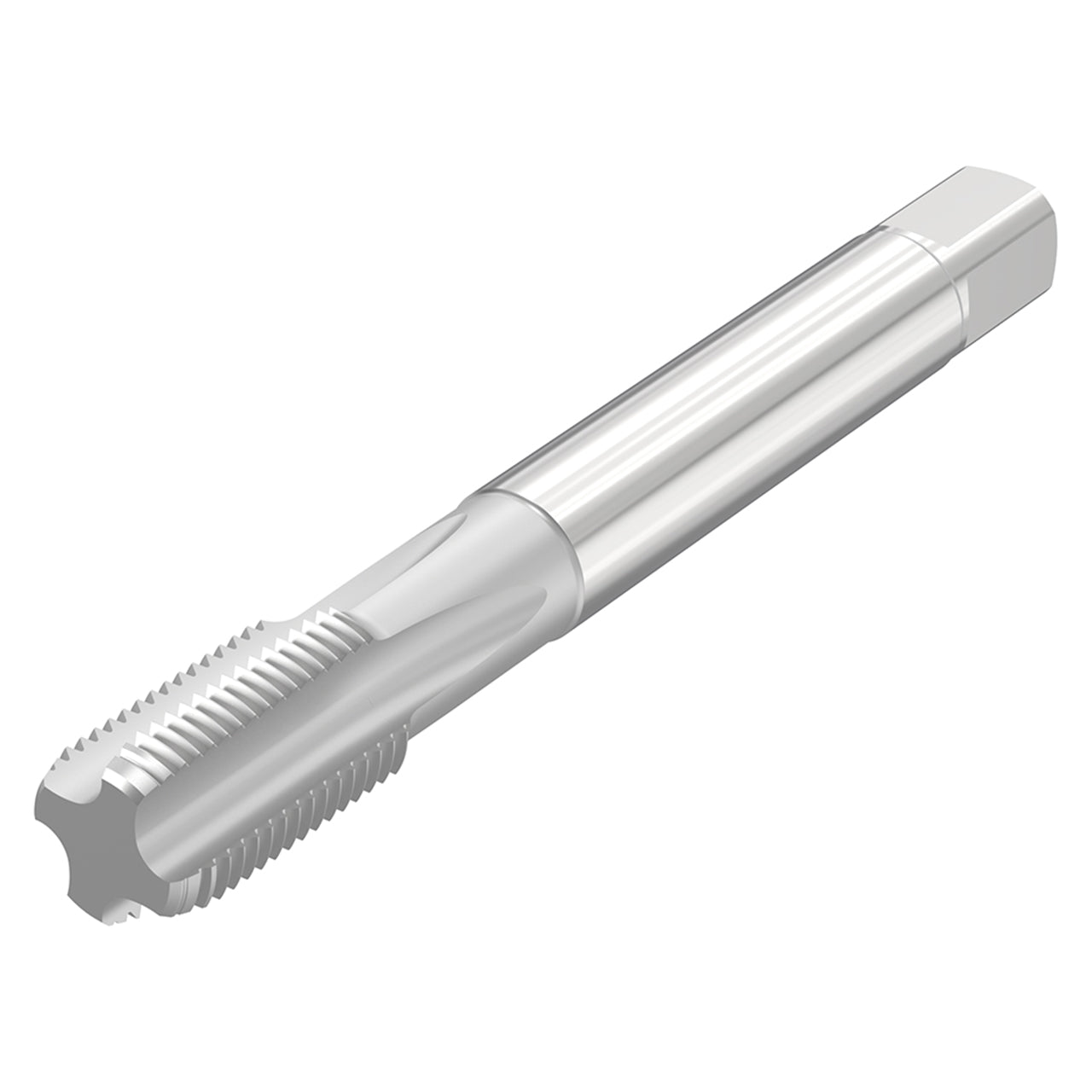

| Product Type | Straight Flute Tap |
