Product Specifications
| Manufacturer Part Number | 10309697 |
| Machine Side Connection Diameter (Decimal Inch) | 1.772" |
| Shank Diameter (Decimal Inch) | 1.772" |
| Functional length (Decimal Inch) | 8.201" |
| Usable Length (Decimal Inch) | 4.370" |
| Overall Length (Decimal Inch) | 8.661" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 2.244" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 2.256" |
| Tap Chamfer Length (Decimal Inch) | 0.461" |
| Thread Diameter (Decimal Inch) | 2.347" |
| Thread Diameter Size | G 2 |
| Threading Chamfer Length (Decimal Inch) | 0.461" |
| Thread Length (Decimal Inch) | 1.575" |
| Minimum Threads per Inch (TPI) | 11.00 TPI |
| Maximum Threads per Inch (TPI) | 11.00 TPI |
| Threading Chamfer Type | B |
| Thread Form Type | G |
| Connection Size Code | 45.00 x 35.00 |
| Machine Side Connection Size Code | 45.00 x 35.00 |
| Number of Flutes | 5 |
| Basic Standard Group | DIN5156 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E |

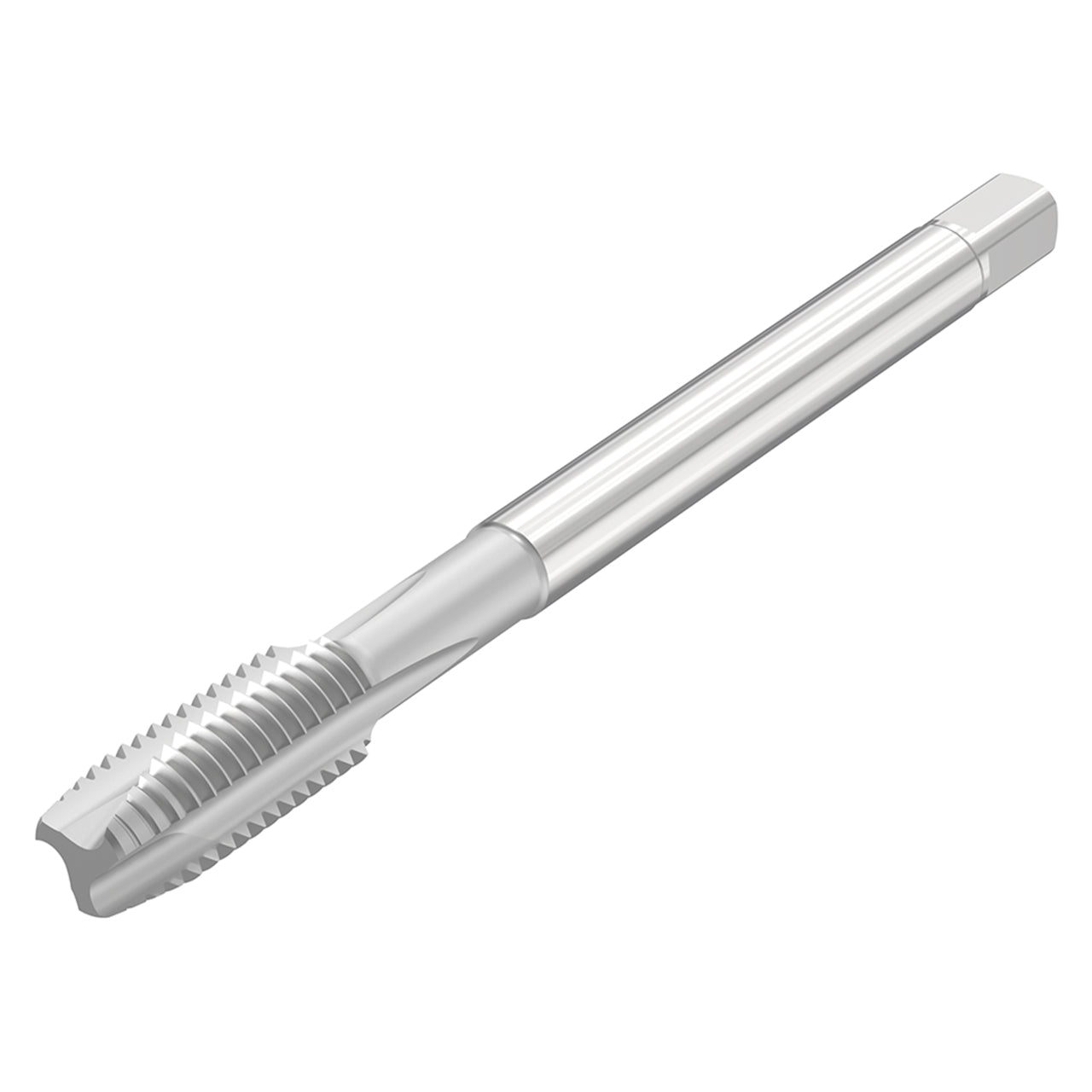

| Product Type | Spiral Point Tap |
