Product Specifications
| Manufacturer Part Number | 10309644 |
| Machine Side Connection Diameter (Decimal Inch) | 0.110" |
| Shank Diameter (Decimal Inch) | 0.110" |
| Functional length (Decimal Inch) | 1.685" |
| Usable Length (Decimal Inch) | 0.512" |
| Overall Length (Decimal Inch) | 1.823" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.073" |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.074" |
| Tap Chamfer Length (Decimal Inch) | 0.080" |
| Thread Diameter (Decimal Inch) | 0.086" |
| Thread Diameter Size | UNC 2 - 56 |
| Threading Chamfer Length (Decimal Inch) | 0.080" |
| Thread Length (Decimal Inch) | 0.315" |
| Minimum Threads per Inch (TPI) | 56.00 TPI |
| Maximum Threads per Inch (TPI) | 56.00 TPI |
| Threading Chamfer Type | B |
| Thread Form Type | UNC |
| Connection Size Code | 2.80 x 2.10 |
| Machine Side Connection Size Code | 2.80 x 2.10 |
| Number of Flutes | 2 |
| Basic Standard Group | DIN371 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Material | High Speed Steel-E-PM |

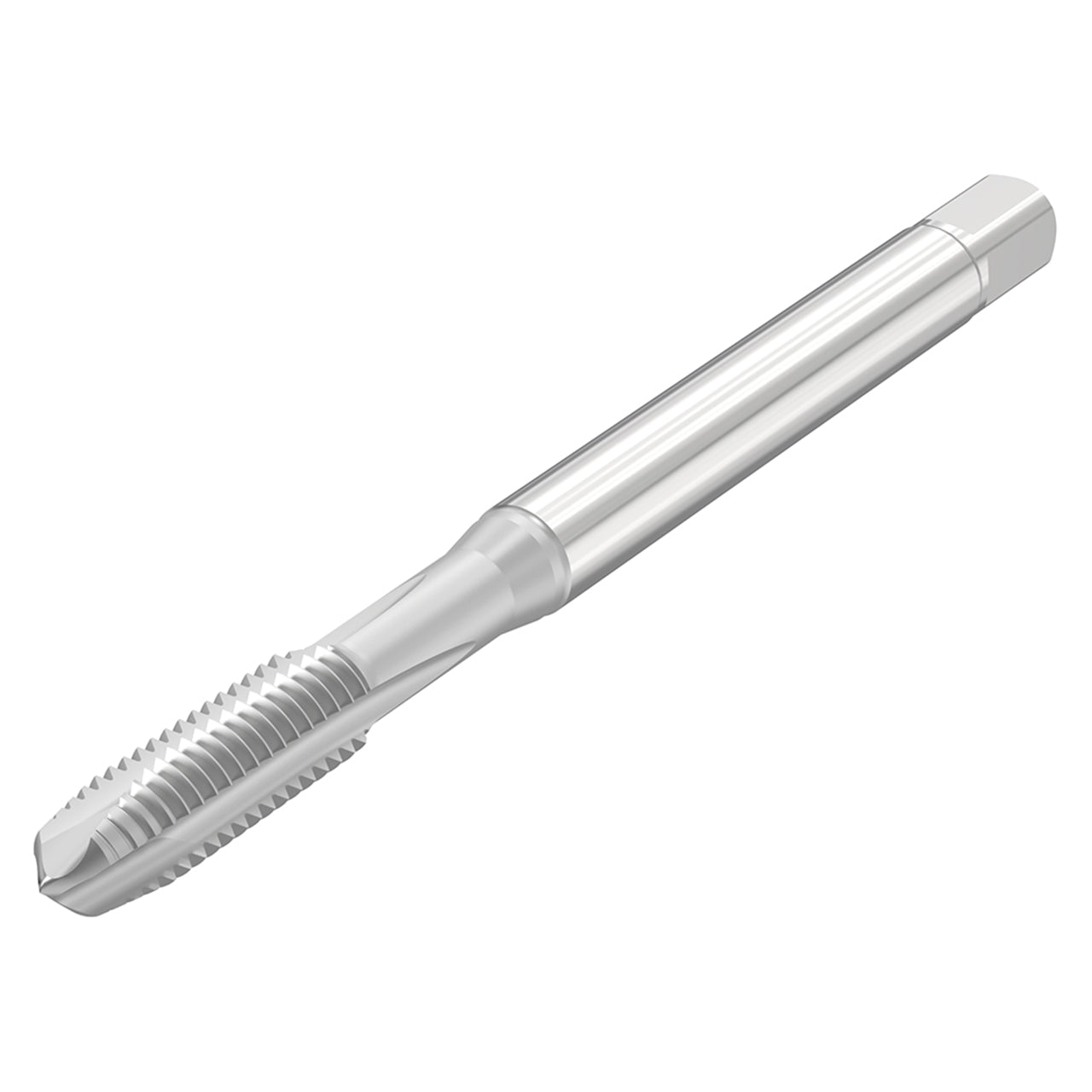

| Product Type | Spiral Point Tap |
