Product Specifications
| Manufacturer Part Number | 10303392 |
| Maximum Depth of cut in Feed Direction Side (mm) | 52.00mm |
| Cutting Diameter (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Overall Length (mm) | 125.00mm |
| Corner Radius (mm) | 1.00mm |
| Shank Diameter Tolerance Class | h5 |
| Series | ST5551 |
| Number of Flutes | 5 |
| Grade | SIRA |
| Pheripheral Cutting Edge Count | 5 |
| Shank Type | Weldon |
| Center Cutting | Yes |
| Helix Angle (Degree) | 40 Degree |
| Coating | SIRON-A |

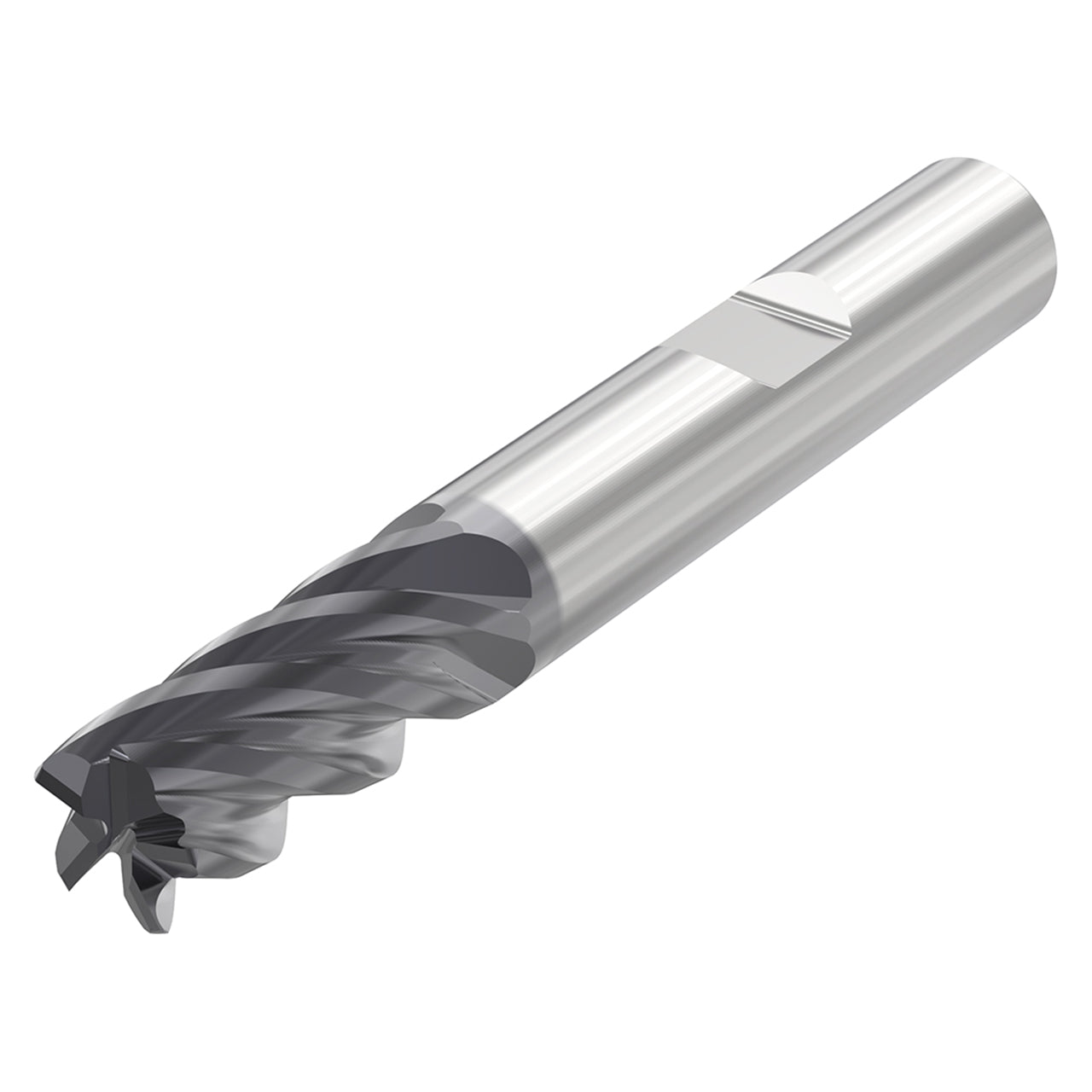

| Product Type | Corner Radius End Mill |
