Product Specifications
| Manufacturer Part Number | 10303338 |
| Maximum Depth of cut in Feed Direction Side (mm) | 52.00mm |
| Chamfer Width (mm) | 0.30mm |
| Cutting Diameter (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Overall Length (mm) | 125.00mm |
| Shank Diameter Tolerance Class | h5 |
| Series | ST5551 |
| Number of Flutes | 5 |
| Grade | SIRA |
| Pheripheral Cutting Edge Count | 5 |
| Shank Type | Cylindrical |
| Center Cutting | Yes |
| Helix Angle (Degree) | 40 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Coating | SIRON-A |

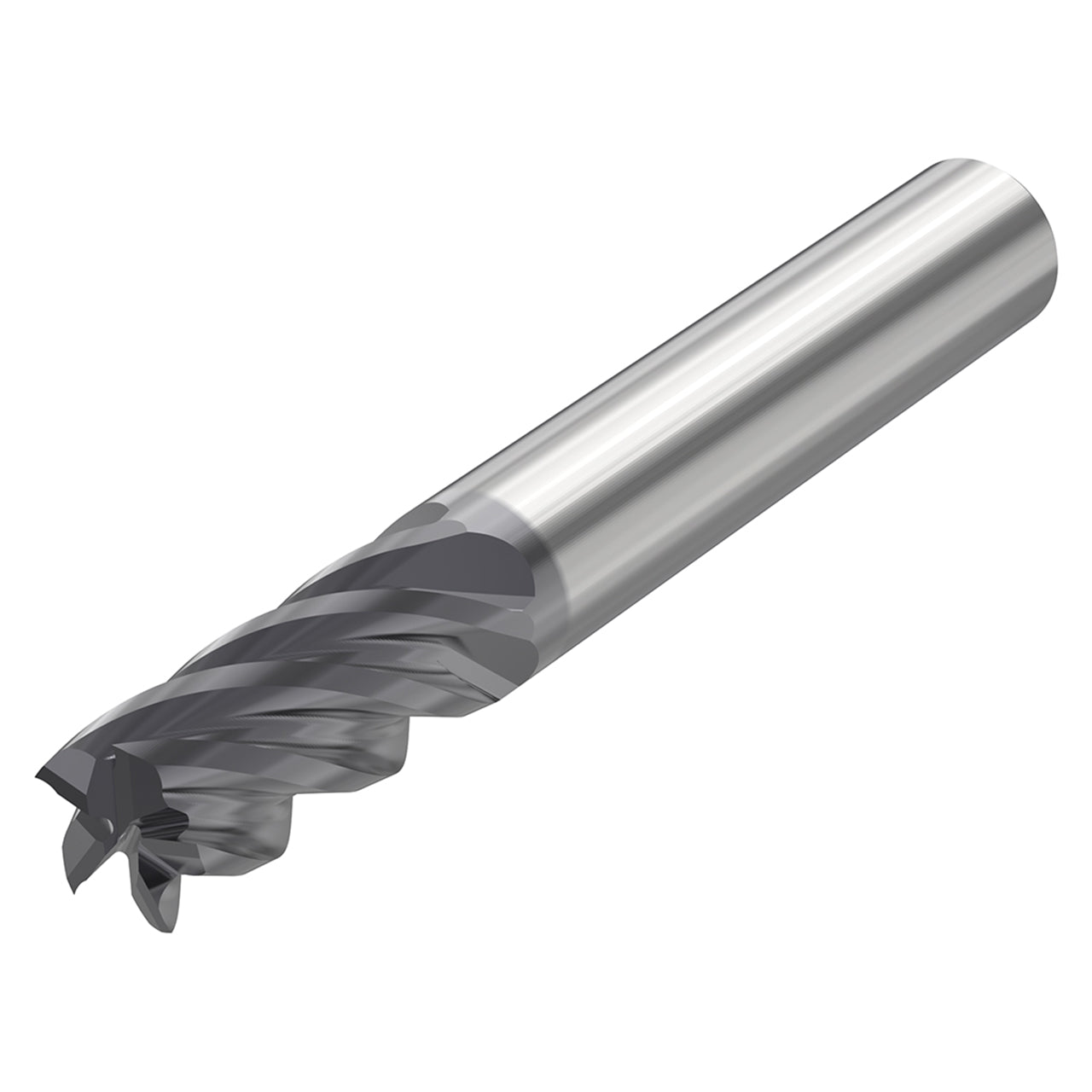

| Product Type | Corner Chamfer End Mill |
