Product Specifications
| Manufacturer Part Number | 10303317 |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 0.500" |
| Cutting Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Neck Diameter (Decimal Inch) | 0.360" |
| Neck Length (Decimal Inch) | 3.125" |
| Overall Length (Decimal Inch) | 6.000" |
| Corner Radius (Decimal Inch) | 0.030" |
| Series | ST5551 |
| Number of Flutes | 5 |
| Grade | SIRA |
| Pheripheral Cutting Edge Count | 5 |
| Shank Type | Weldon |
| Center Cutting | Yes |
| Helix Angle (Degree) | 40 Degree |
| Coating | SIRON-A |

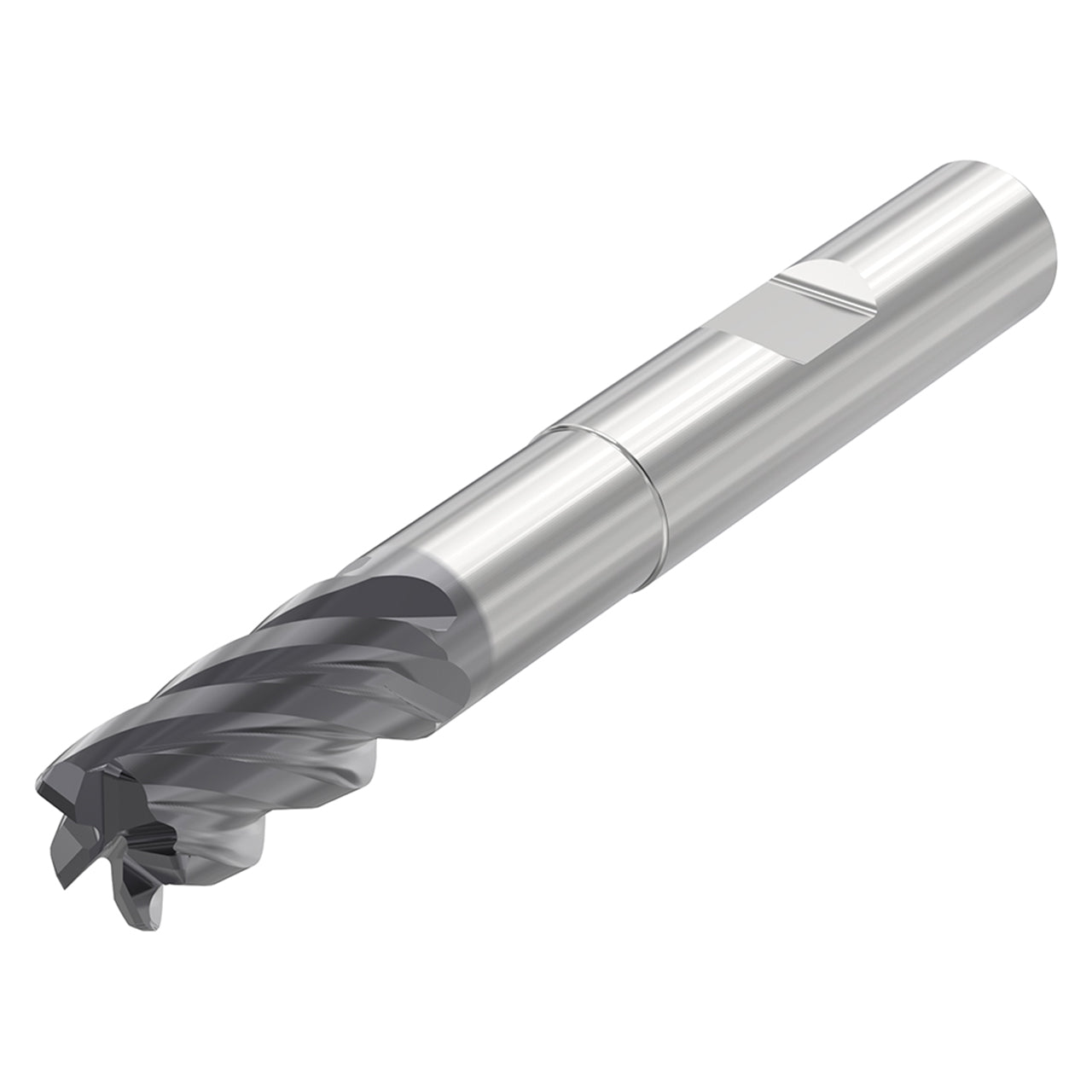

| Product Type | Corner Radius End Mill |
