Product Specifications
| Manufacturer Part Number | 10296540 |
| Maximum Depth of cut in Feed Direction Side (mm) | 10.00mm |
| Depth of Key Way (mm) | 14.00mm |
| Maximum Cutting Depth (mm) | 94.50mm |
| Bolt Circle Diameter (mm) | 101.60mm |
| Cutting Diameter (mm) | 320.00mm |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Machine Side Diameter (mm) | 130.00mm |
| Keyway Width (mm) | 25.70mm |
| Functional length (mm) | 51.52mm |
| Maximum Rotational Speed (RPM) | 4100 RPM |
| Cutting Pitch Density | Normal |
| Complete Insert Compatibility | RP..2006 |
| Peripheral Effective Cutting Edge Count | 20 |
| Peripheral Edges in the Tool | 20 |
| Shank Type | Arbor |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Axial Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Cutting Direction | Right Hand |

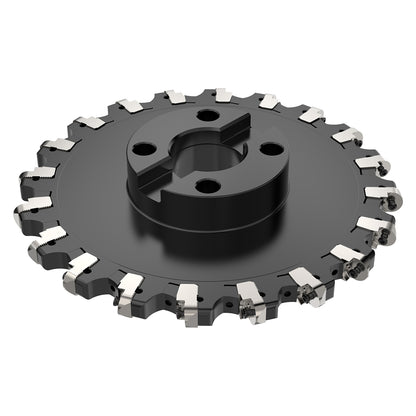

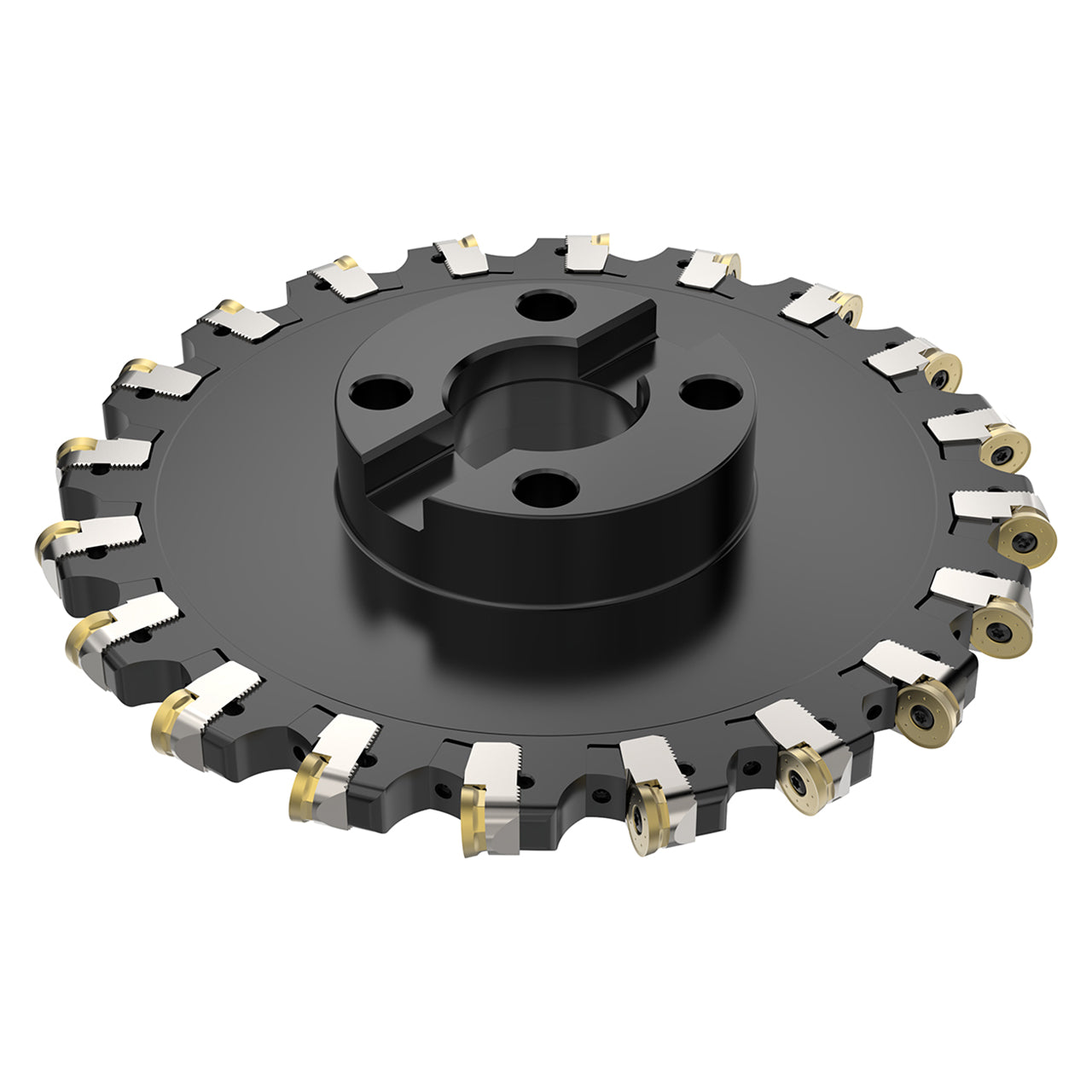

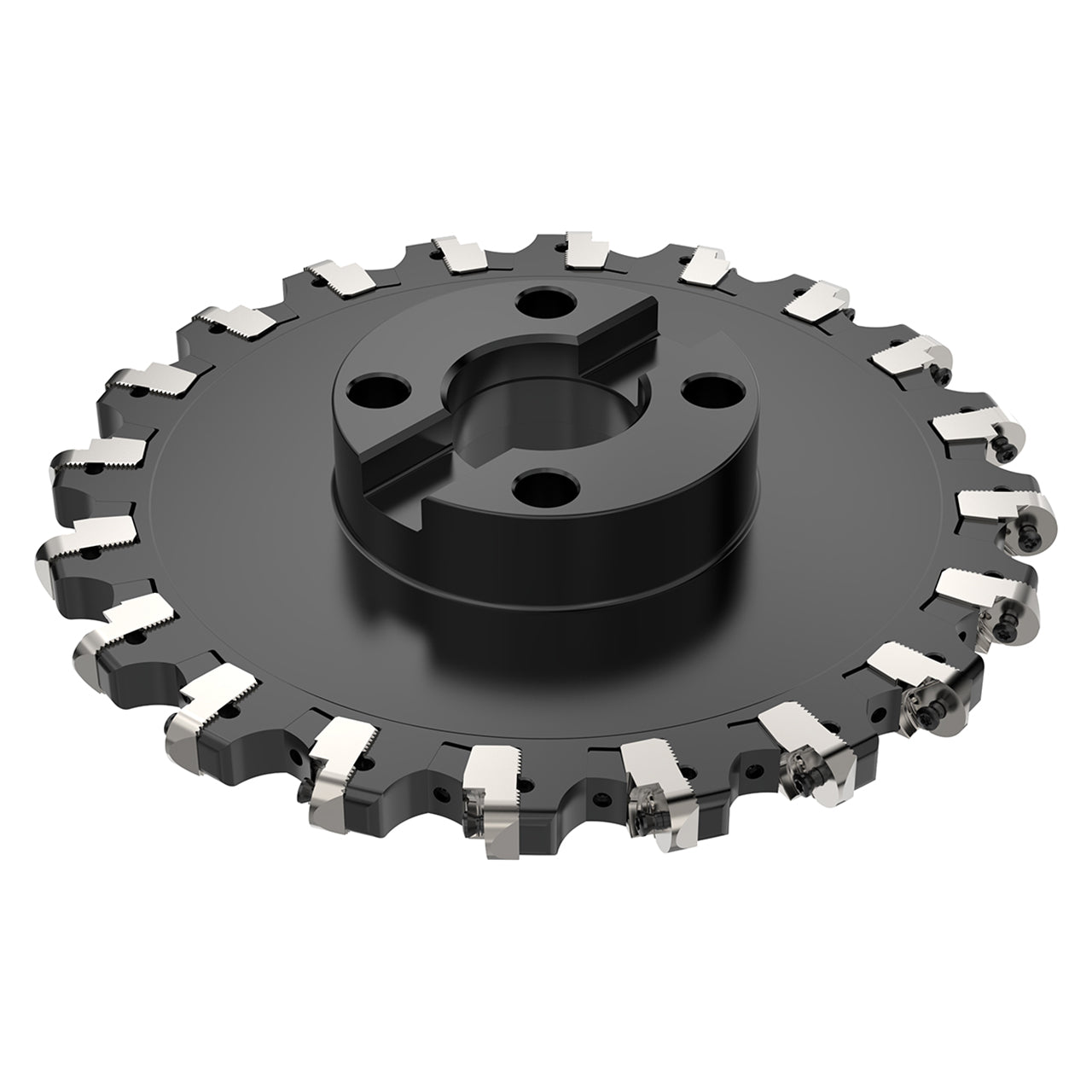

| Product Type | Indexable Slotting Cutter |
