Product Specifications
| Manufacturer Part Number | 10296535 |
| Maximum Depth of cut in Feed Direction Side (mm) | 10.00mm |
| Maximum Cutting Depth (mm) | 124.10mm |
| Cutting Diameter (mm) | 320.00mm |
| Connection Bore Diameter (mm) | 50.00mm |
| Contact Surface Machine Side Diameter (mm) | 69.00mm |
| Keyway Width (mm) | 12.00mm |
| Functional length (mm) | 0.48mm |
| Hub Thickness (mm) | 21.00mm |
| Maximum Rotational Speed (RPM) | 4100 RPM |
| Cutting Pitch Density | Normal |
| Complete Insert Compatibility | RP..2006 |
| Peripheral Effective Cutting Edge Count | 20 |
| Peripheral Edges in the Tool | 20 |
| Shank Type | Arbor hole |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Axial Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90 Degree |
| Cutting Direction | Neutral |

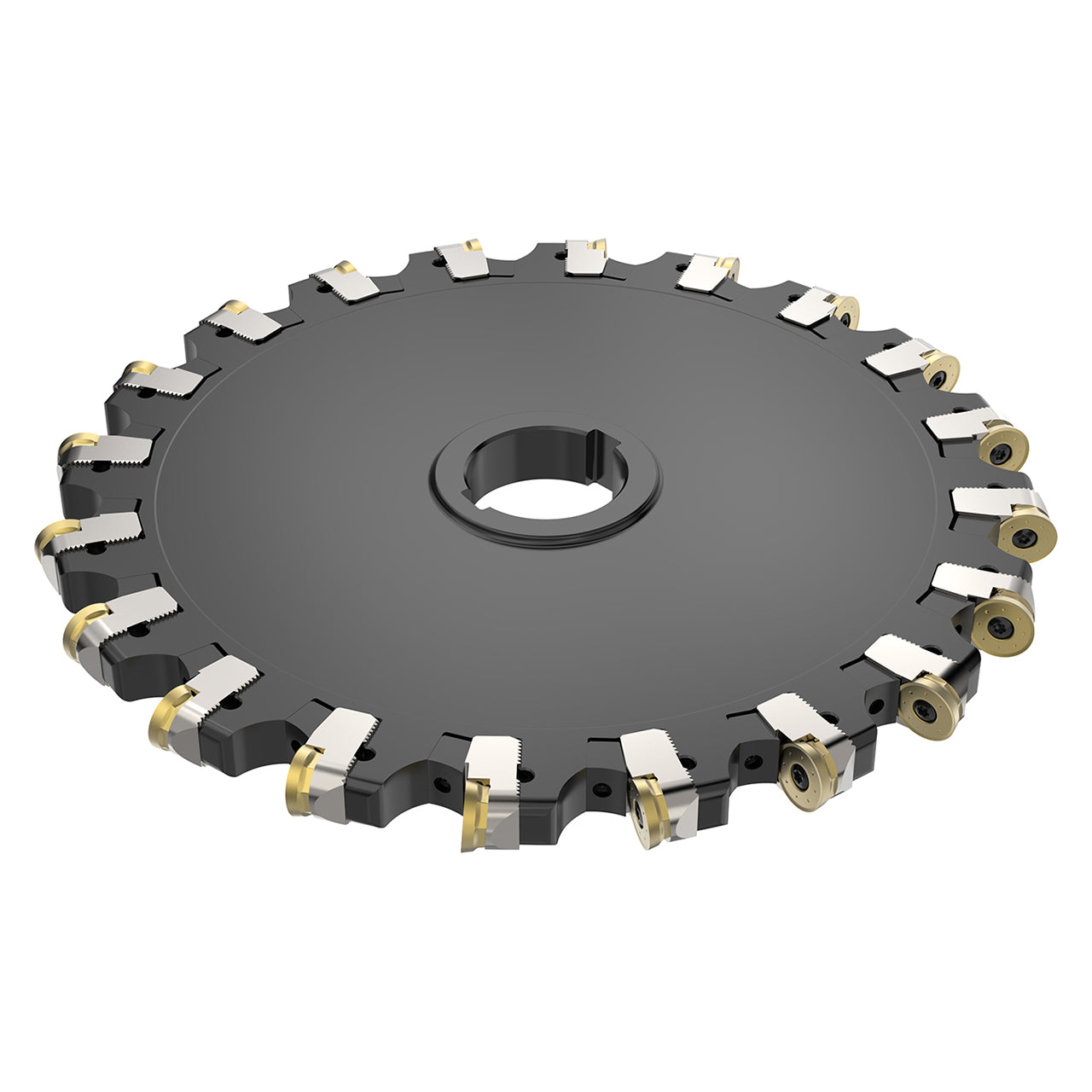

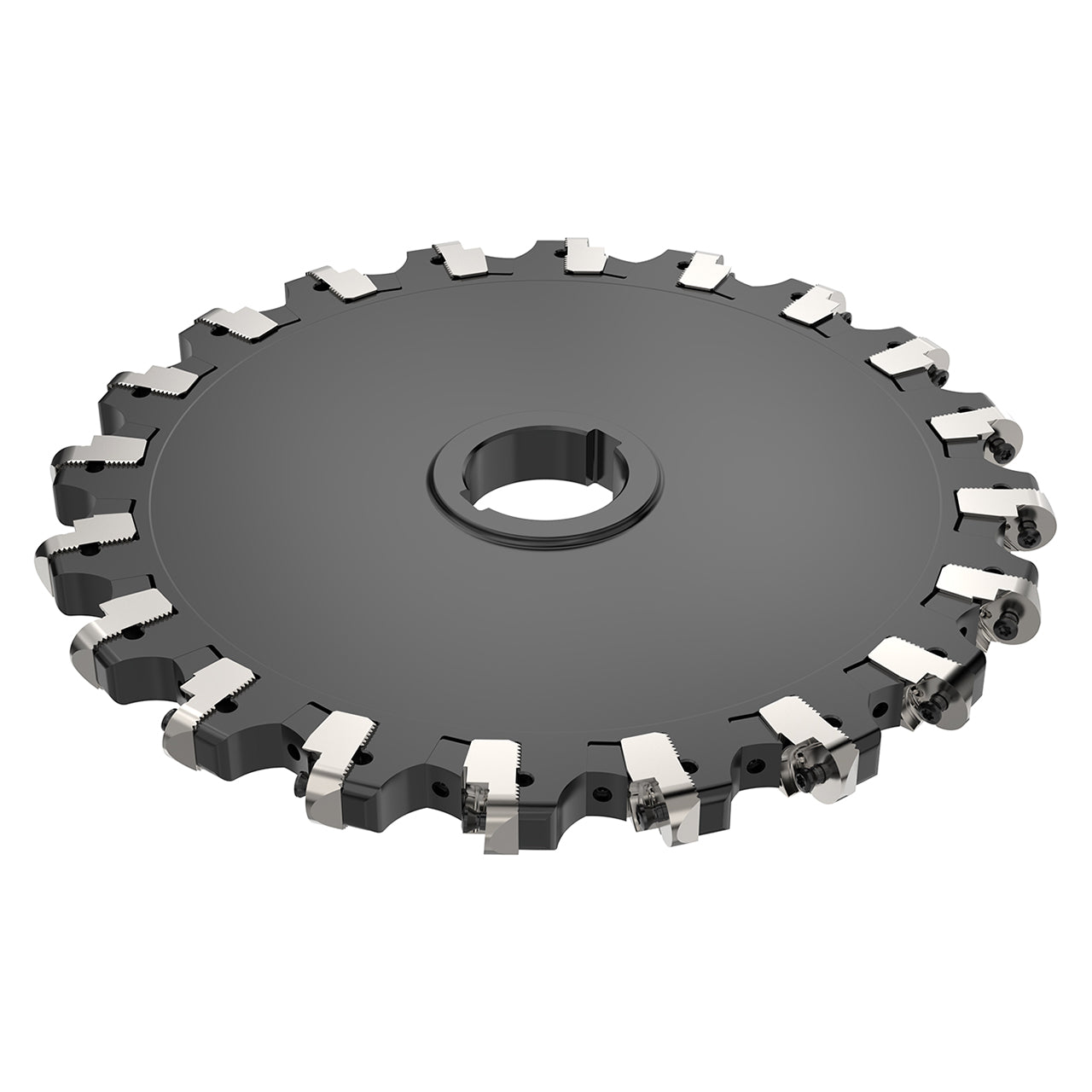

| Product Type | Indexable Slotting Cutter |
