Product Specifications
| Manufacturer Part Number | 10286997 |
| Maximum Depth of cut in Feed Direction Side (mm) | 40.00mm |
| Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Neck Diameter (mm) | 19.00mm |
| Neck Length (mm) | 90.00mm |
| Overall Length (mm) | 150.00mm |
| Corner Radius (mm) | 1.00mm |
| Series | S4531 |
| Number of Flutes | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Shank Type | Weldon |
| Center Cutting | Yes |
| Helix Angle (Degree) | 35 Degree |
| Coating | AXT |

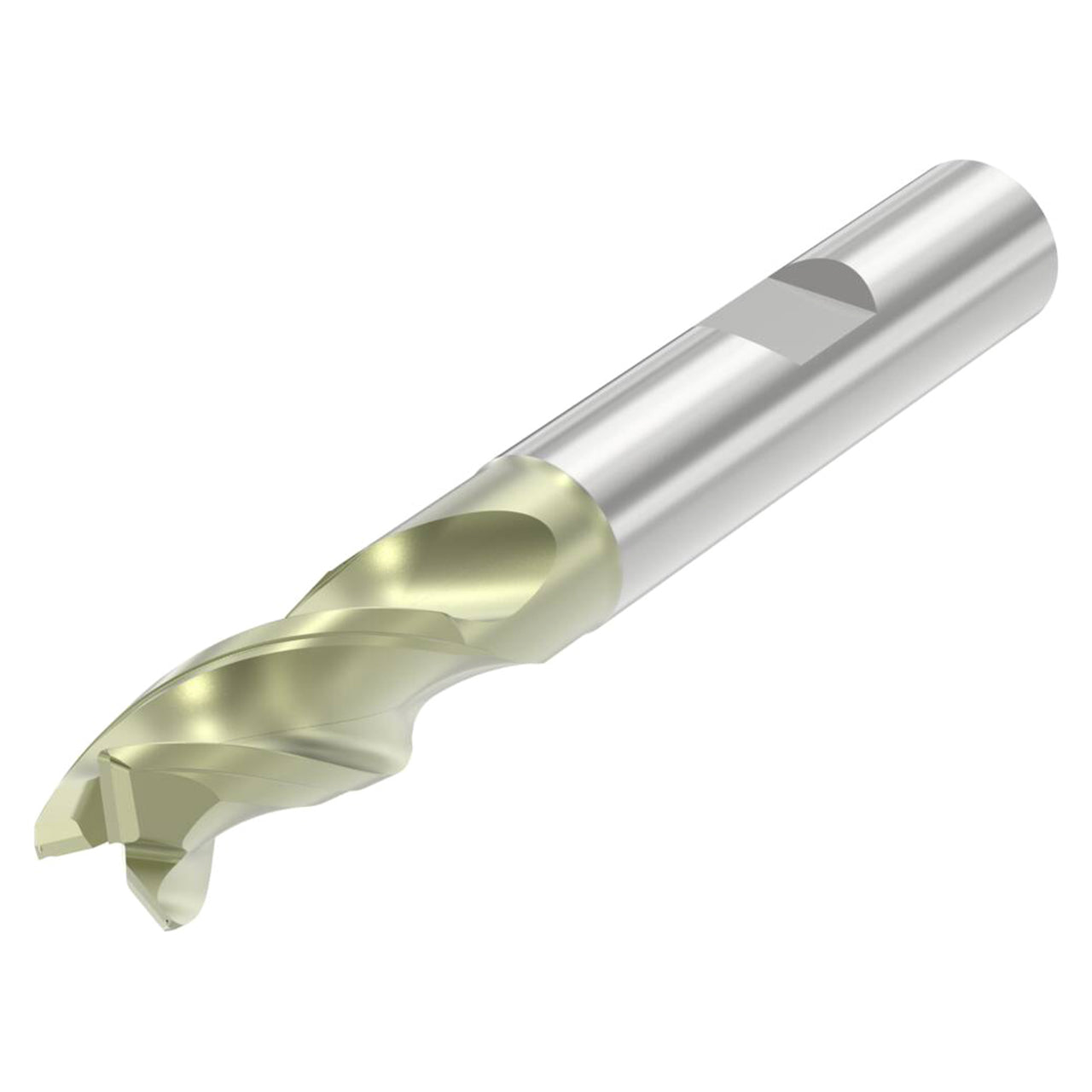

| Product Type | Corner Radius End Mill |
