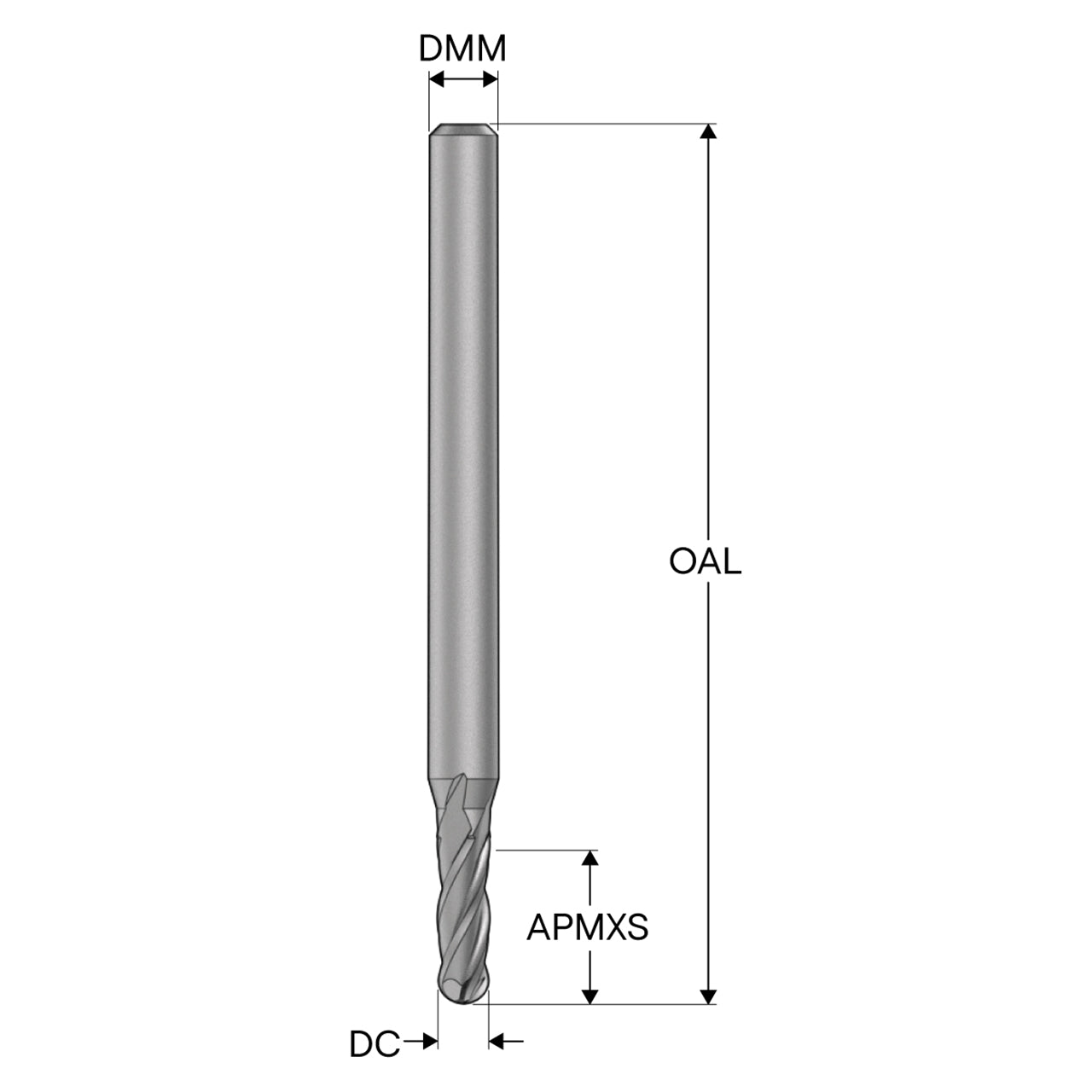

Product Specifications
| Manufacturer Part Number | 10268496 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.500" |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | C5341 |
| Coating | SIRON-A |
| Cutting Diameter (Decimal Inch) | 0.141" |
| Shank Diameter (Decimal Inch) | 0.188" |
| Neck Diameter (Decimal Inch) | 0.146" |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Neck Length (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 2.000" |
| Cutting Edge Count | 4 |
| Corner Radius (Decimal Inch) | 0.070" |
| Shank Type | Cylindrical |
| Product Series | C5341 |

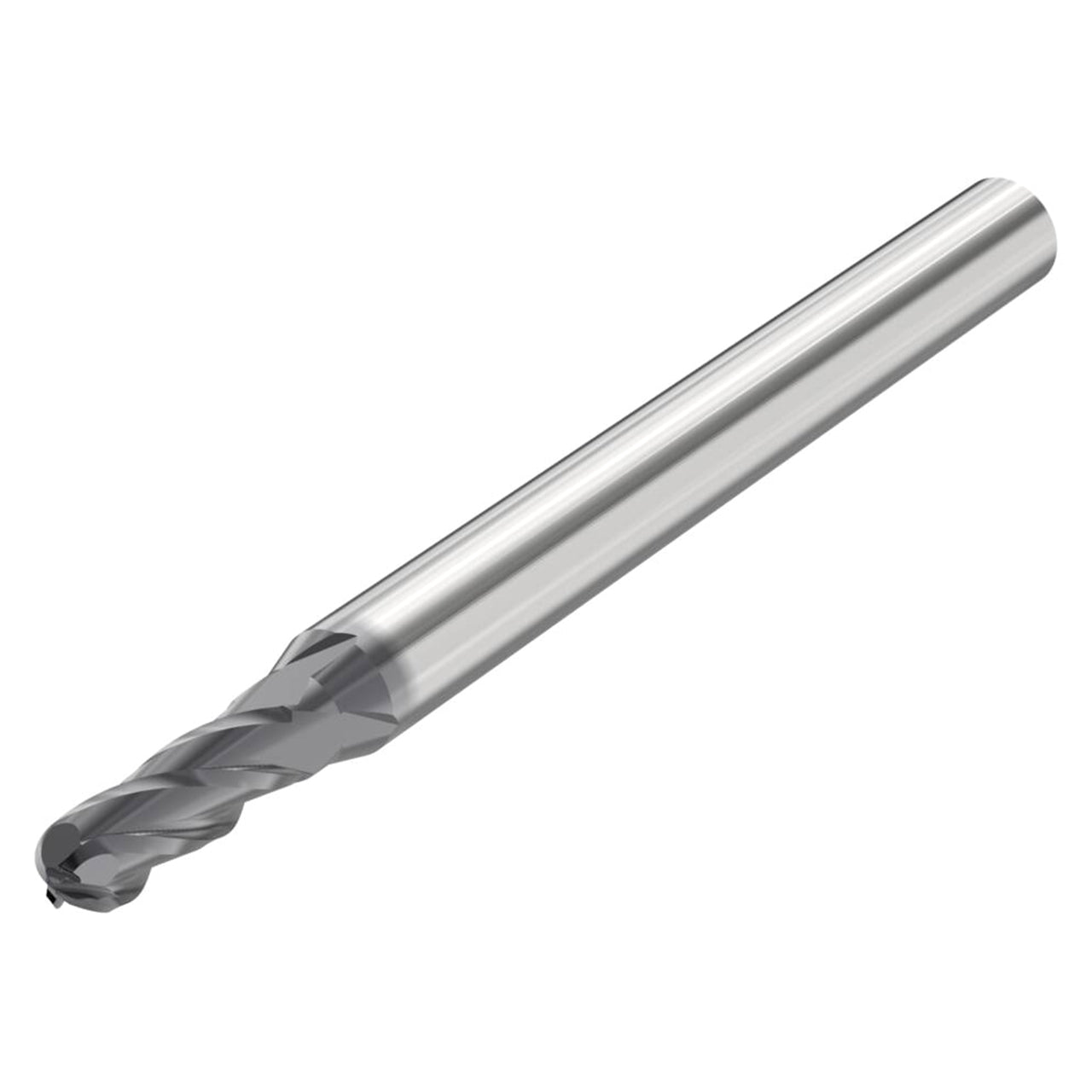

| Product Type | Ball End Mill |
