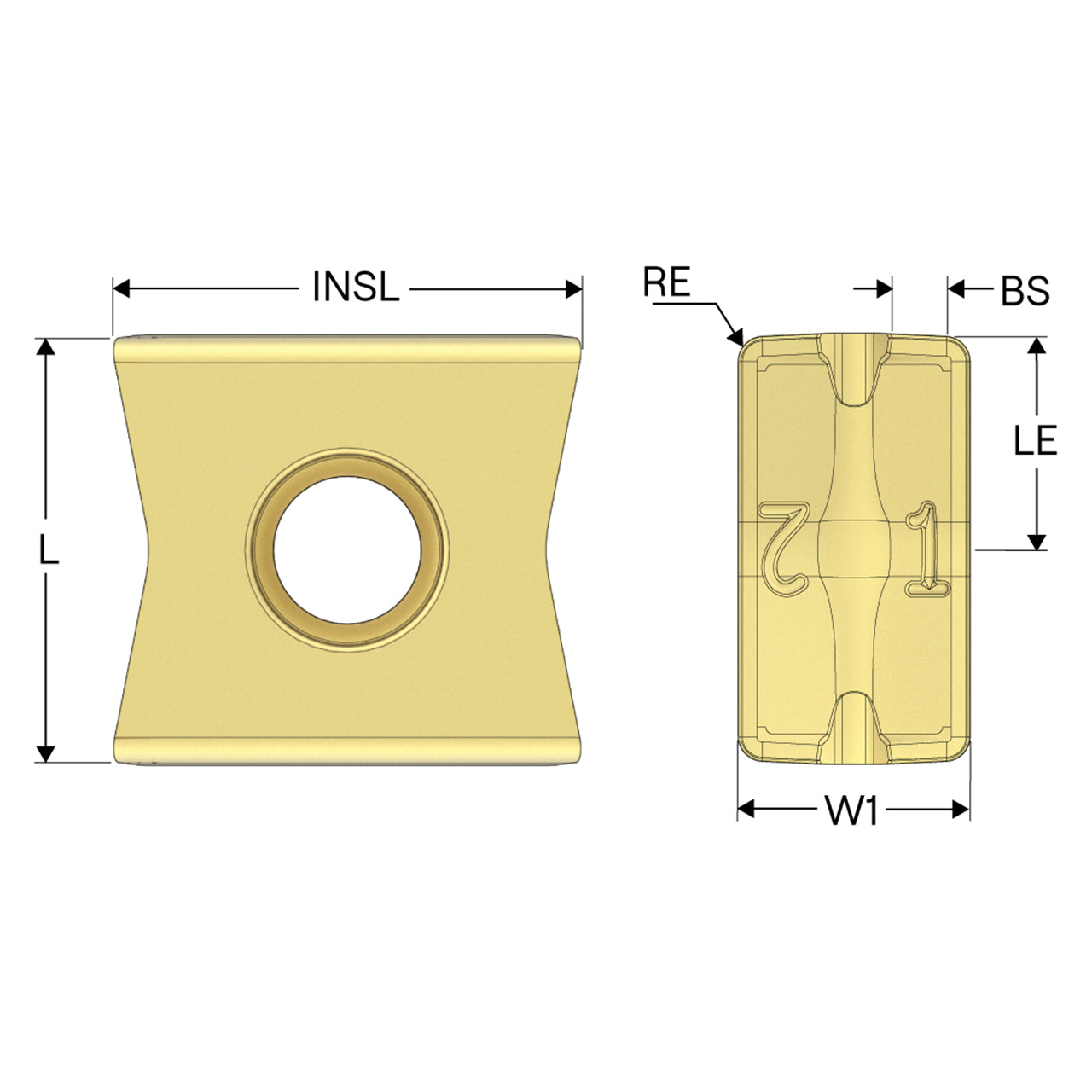

Product Specifications
| Manufacturer Part Number | 10266674 |
| Wiper Edge Length (Decimal Inch) | 0.024" |
| Cutting edge count | 8 |
| Insert size and shape | XNHQ0707 |
| Insert Rake Angle (Degree) | 16.00 Degree |
| Insert Rake Angle (Degree) | 16.0 |
| Grade Type | Carbide PVD |
| Insert Hand | Neutral |
| Cutting Edge Effective Length (Decimal Inch) | 0.272" |
| Corner Radius (Decimal Inch) | 0.122" |
| Insert seat size code | XNHQ07.. |
| Product Series | XNHQ |

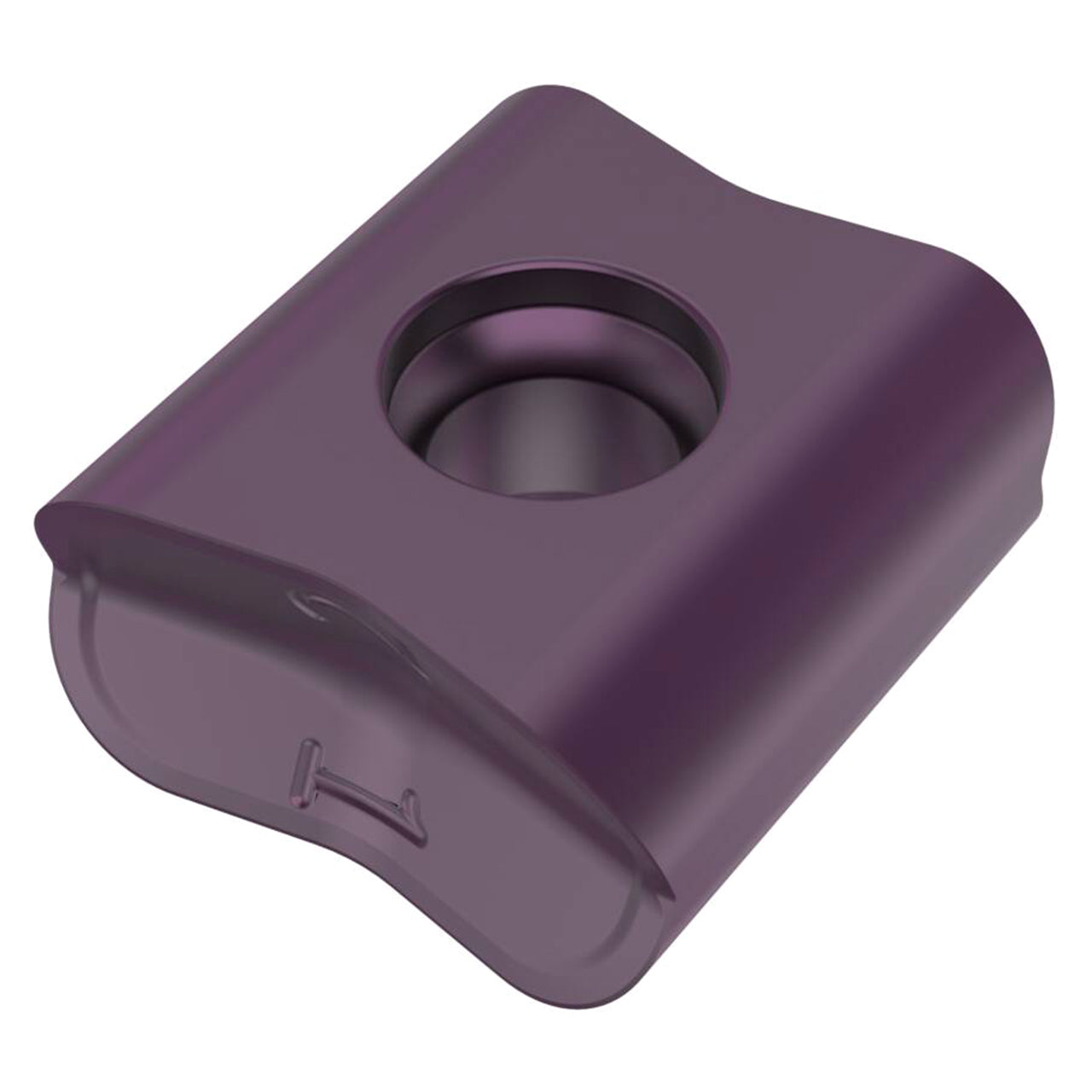

| Product Type | Milling Insert |
