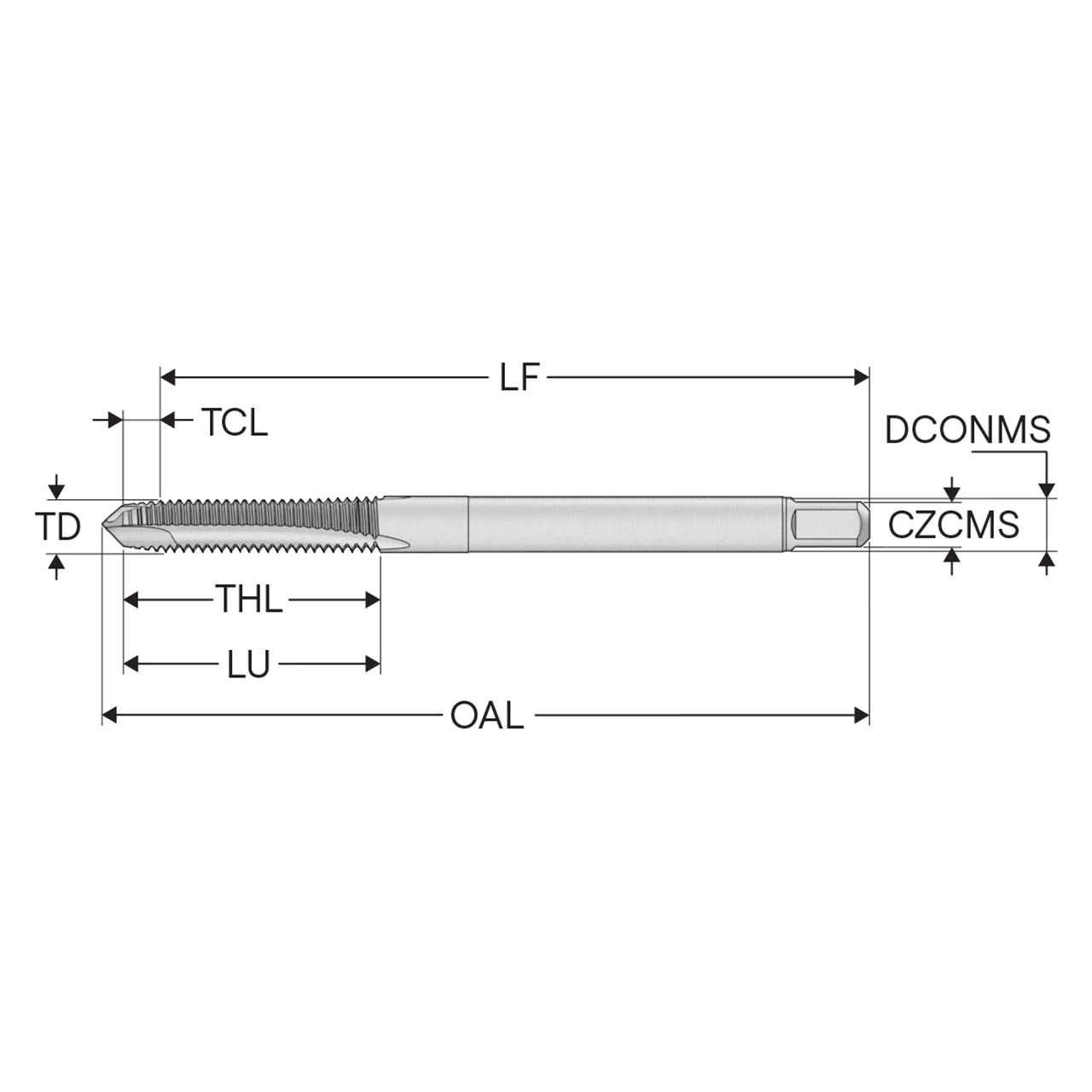

Product Specifications
| Manufacturer Part Number | 10265546 |
| Coating | TiAlSiN |
| Connection Diameter Machine Side (mm) | 3.50mm |
| Shank Diameter (mm) | 3.50mm |
| Cutting Direction | Right Hand |
| Functional Length (mm) | 53.70mm |
| Usable Length (mm) | 13.00mm |
| Material | HSS-E-PM |
| Number of Flutes | 3 |
| Overall Length (mm) | 57.20mm |
| Recommended Premachined Hole Diameter (Decimal Inch) | 2.50mm |
| Shank Type | Cylindrical |
| Tap Chamfer Length (mm) | 2.30mm |
| Thread Tolerance Class | 6HX |
| Thread Diameter (mm) | 3.00mm |
| Thread Form Type | M |
| Product Series | T35 |

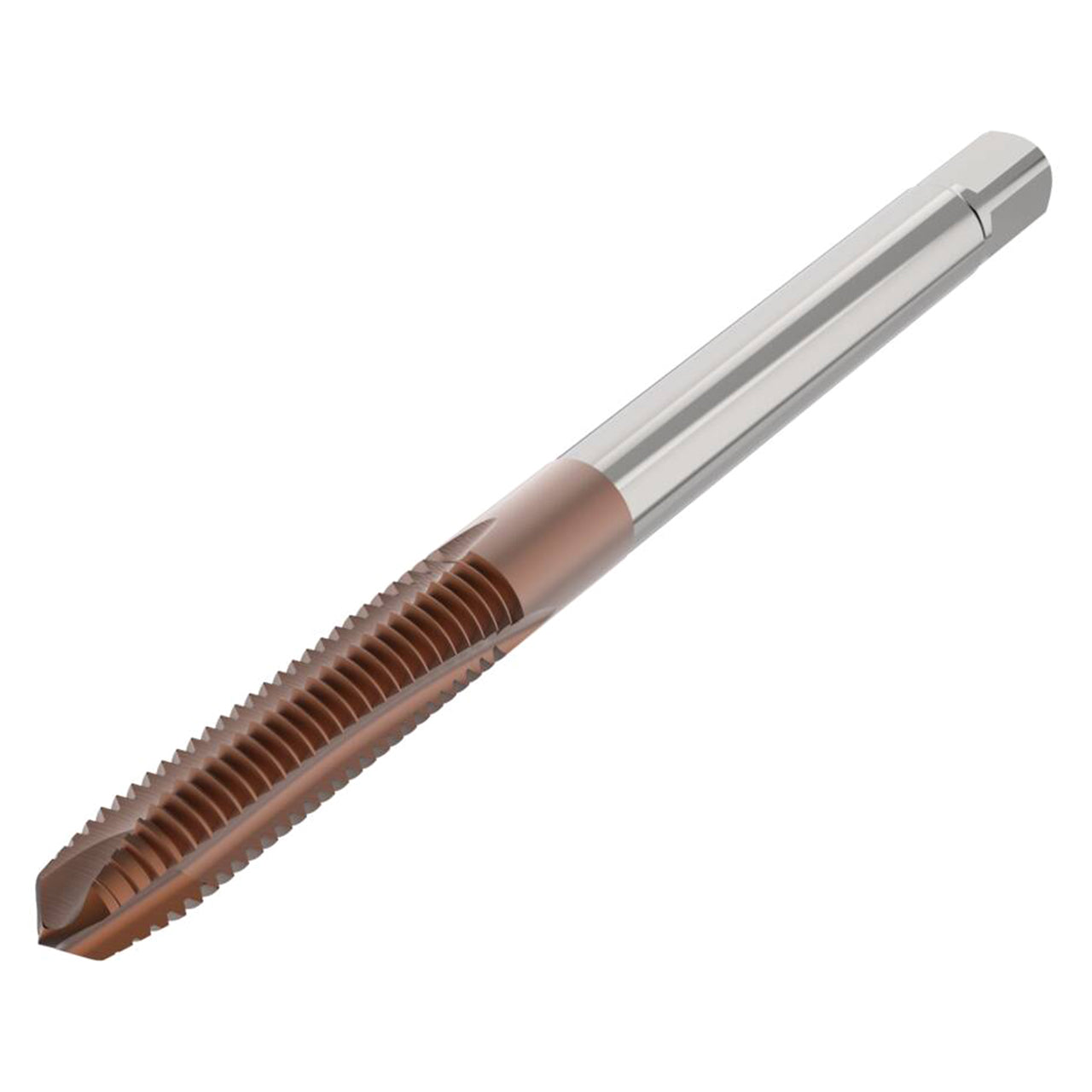

| Product Type | Spiral Point Tap |
