Product Specifications
| Manufacturer Part Number | 10265530 |
| Coating | TiAlSiN |
| Coolant Exit Style Code | 1 |
| Connection Diameter Machine Side (mm) | 9.00mm |
| Shank Diameter (mm) | 9.00mm |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Functional Length (mm) | 105.00mm |
| Usable Length (mm) | 83.00mm |
| Material | HSS-E-PM |
| Number of Flutes | 3 |
| Overall Length (mm) | 110.00mm |
| Recommended Premachined Hole Diameter (Decimal Inch) | 10.20mm |
| Shank Type | Cylindrical |
| Tap Chamfer Length (mm) | 5.00mm |
| Thread Tolerance Class | 6HX |
| Thread Diameter (mm) | 12.00mm |
| Thread Form Type | M |
| Product Series | T35A |

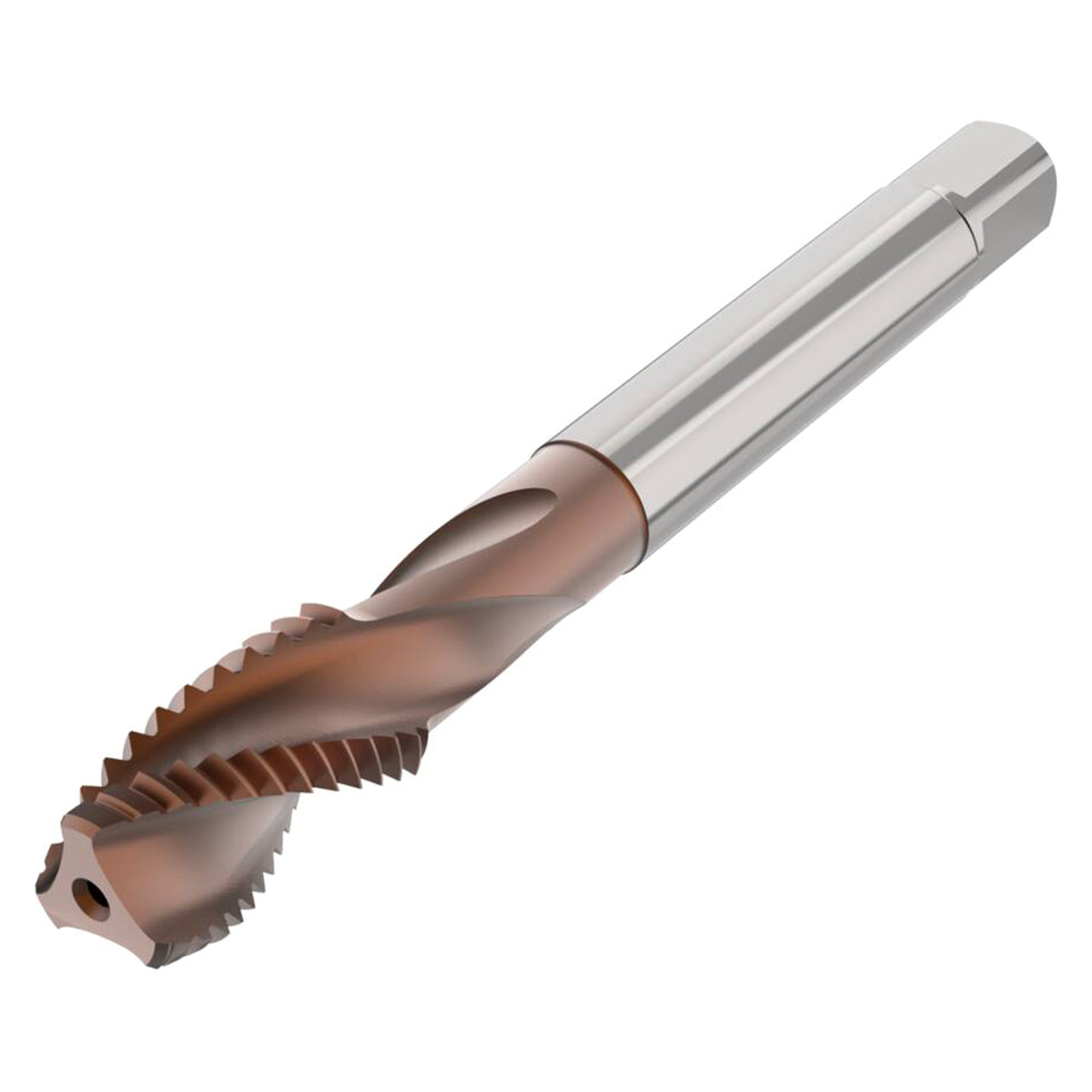

| Product Type | Spiral Flute Tap |
