Product Specifications
| Manufacturer Part Number | 10260325 |
| Clearance Angle Major (Degree) | 18.00 Degree |
| Cutting edge count | 8 |
| Cutting Geometry Type Technical | M20 |

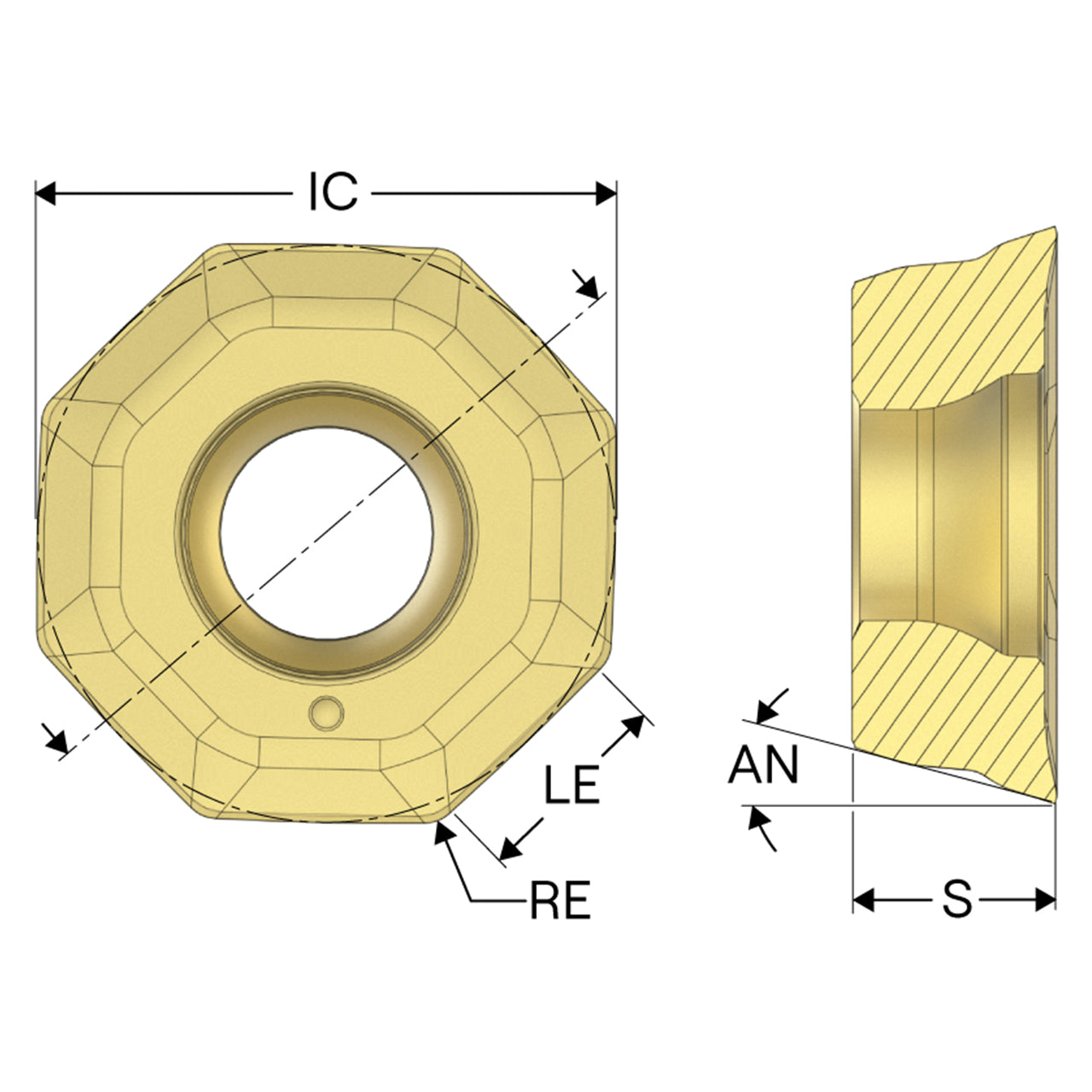

| Insert size and shape | OOMT0605 |
| Grade Type | Carbide CVD |
| Inscribed Circle Diameter (Decimal Inch) | 0.621" |
| Insert Hand | Neutral |
| Cutting Edge Effective Length (Decimal Inch) | 0.224" |
| Corner Radius (Decimal Inch) | 0.039" |
| Insert Thickness (Decimal Inch) | 0.219" |
| Product Series | OOMT |
| Product Type | Milling Insert |
