Product Specifications
| Manufacturer Part Number | 10256021 |

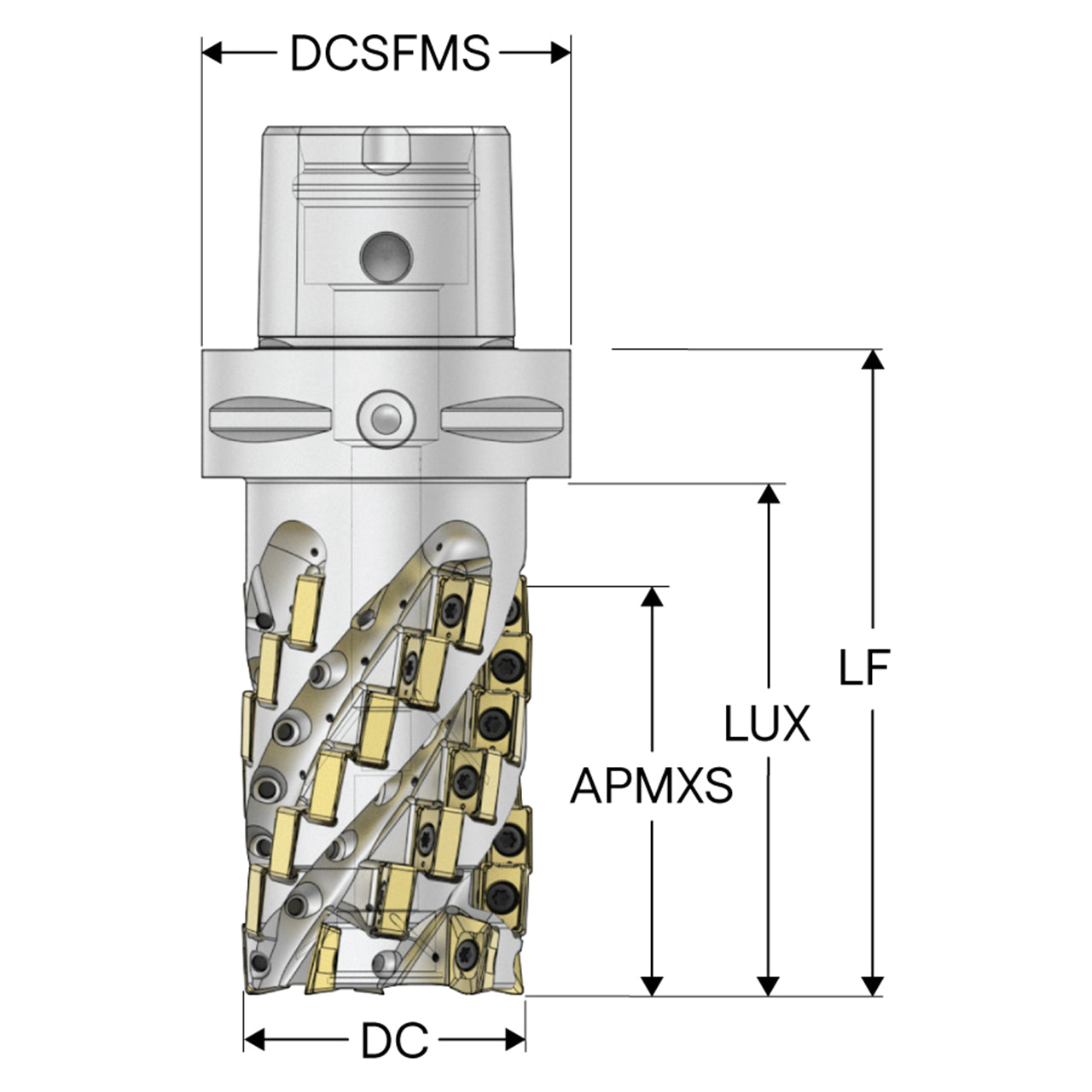

| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 3.898" |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (Decimal Inch) | 5.500" |
| Number of Flutes | 5 |
| Rotational Speed Maximum | 13500 rpm |
| Shank Type | Seco-Capto |
| Peripheral Effective Cutting Edge Count | 5 |
| Product Series | R217.42 |

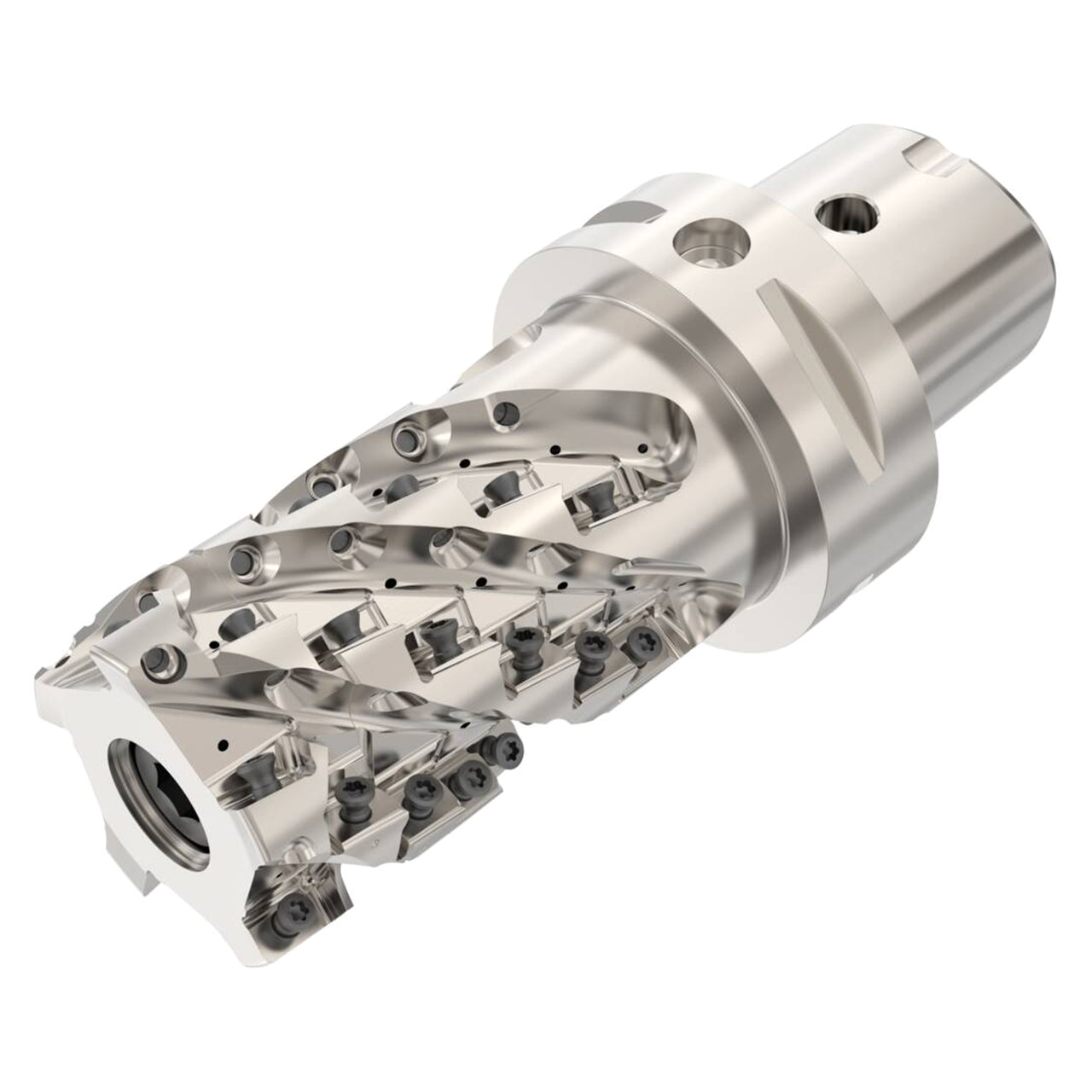

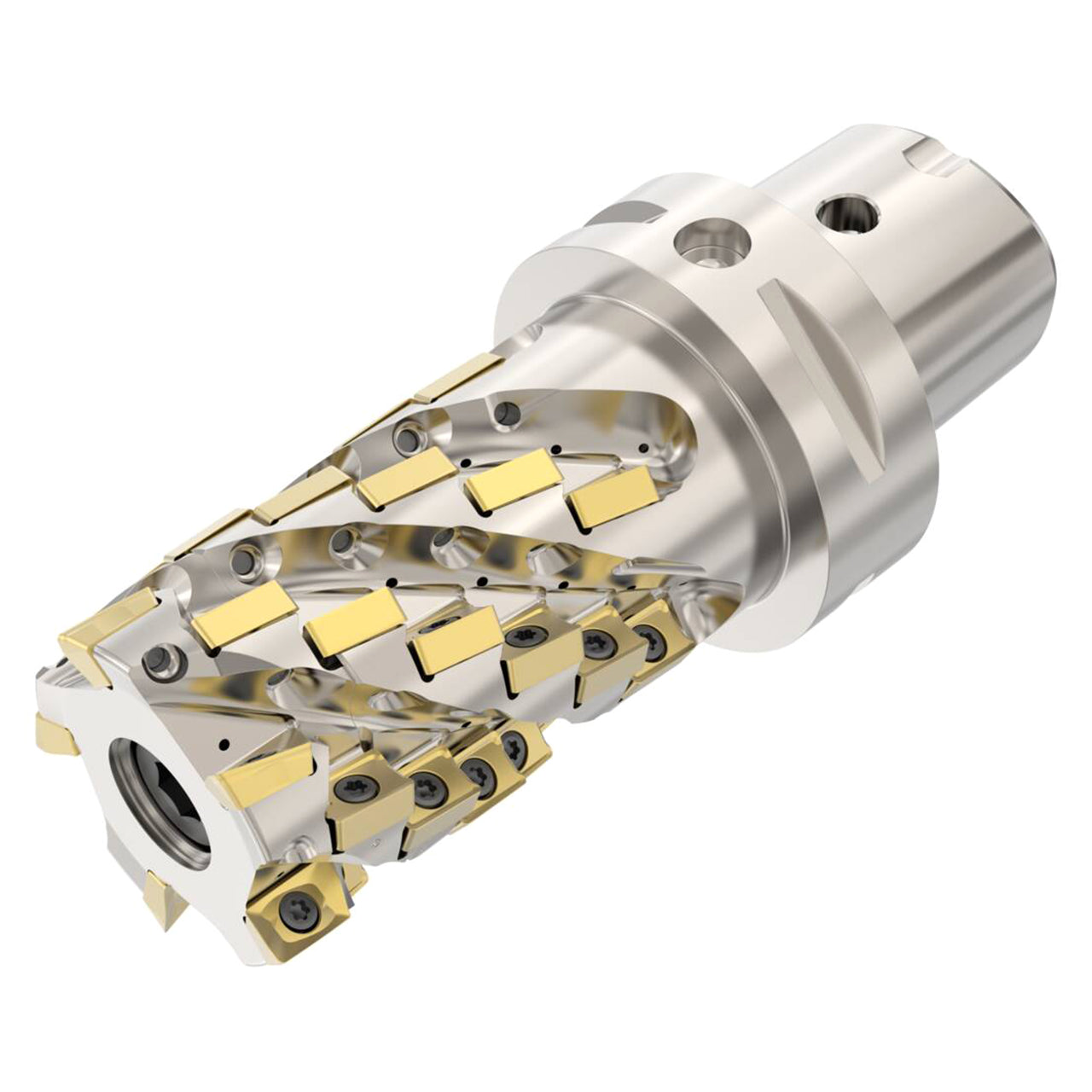

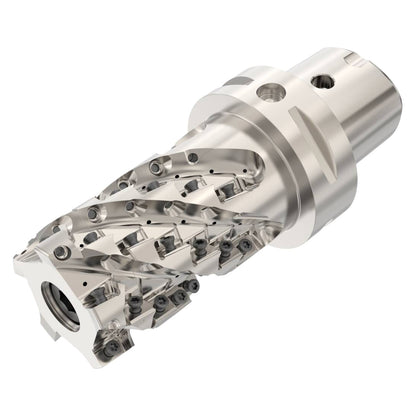

| Product Type | Indexable Square-Shoulder Face Mill |
