Product Specifications
| Manufacturer Part Number | 10256020 |

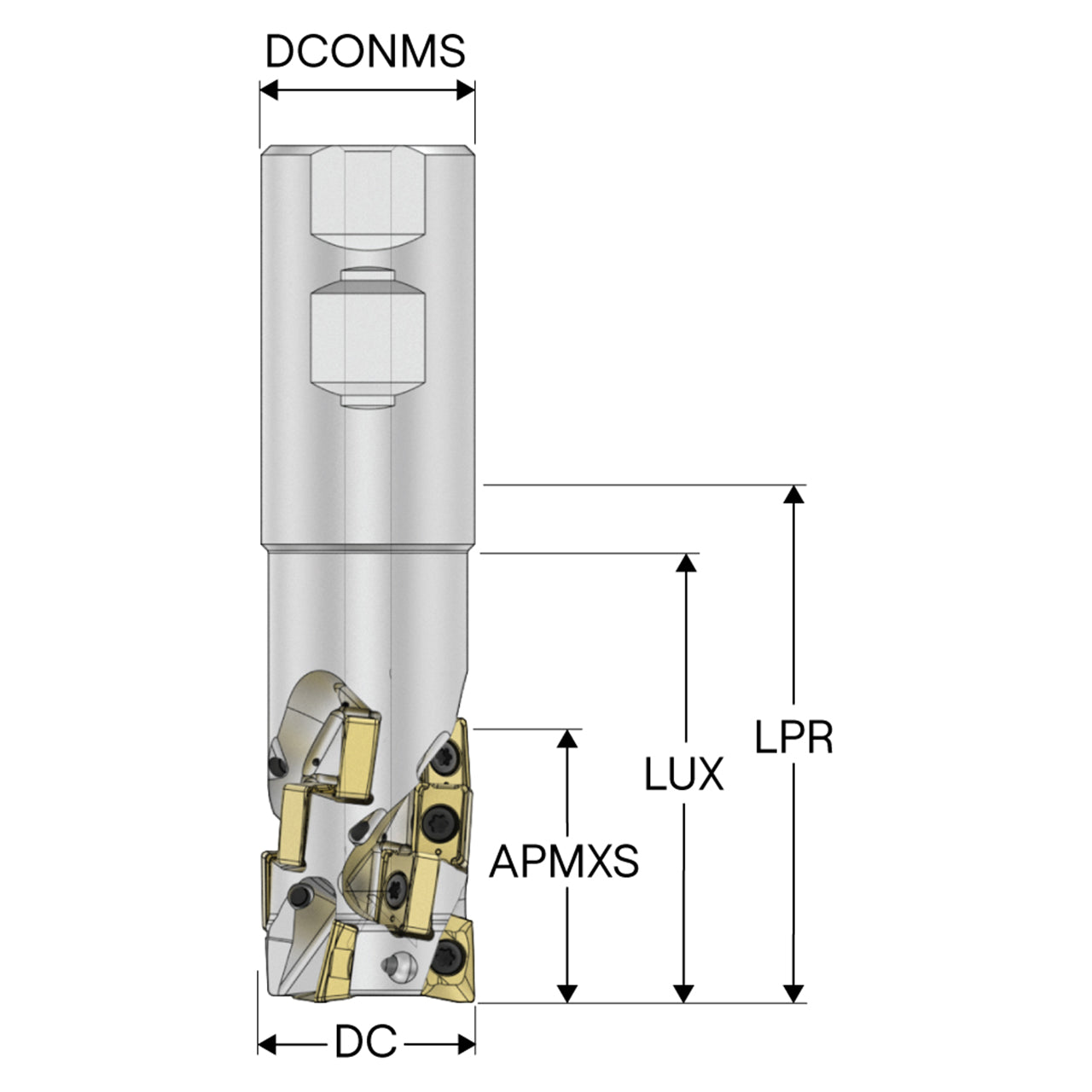

| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 2.756" |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (Decimal Inch) | 5.016" |
| Protruding Length (Decimal Inch) | 3.457" |
| Shank Length (Decimal Inch) | 2.728" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 6.185" |
| Rotational Speed Maximum | 15600 rpm |
| Shank Type | Weldon |
| Peripheral Effective Cutting Edge Count | 3 |
| Product Series | R217.42 |

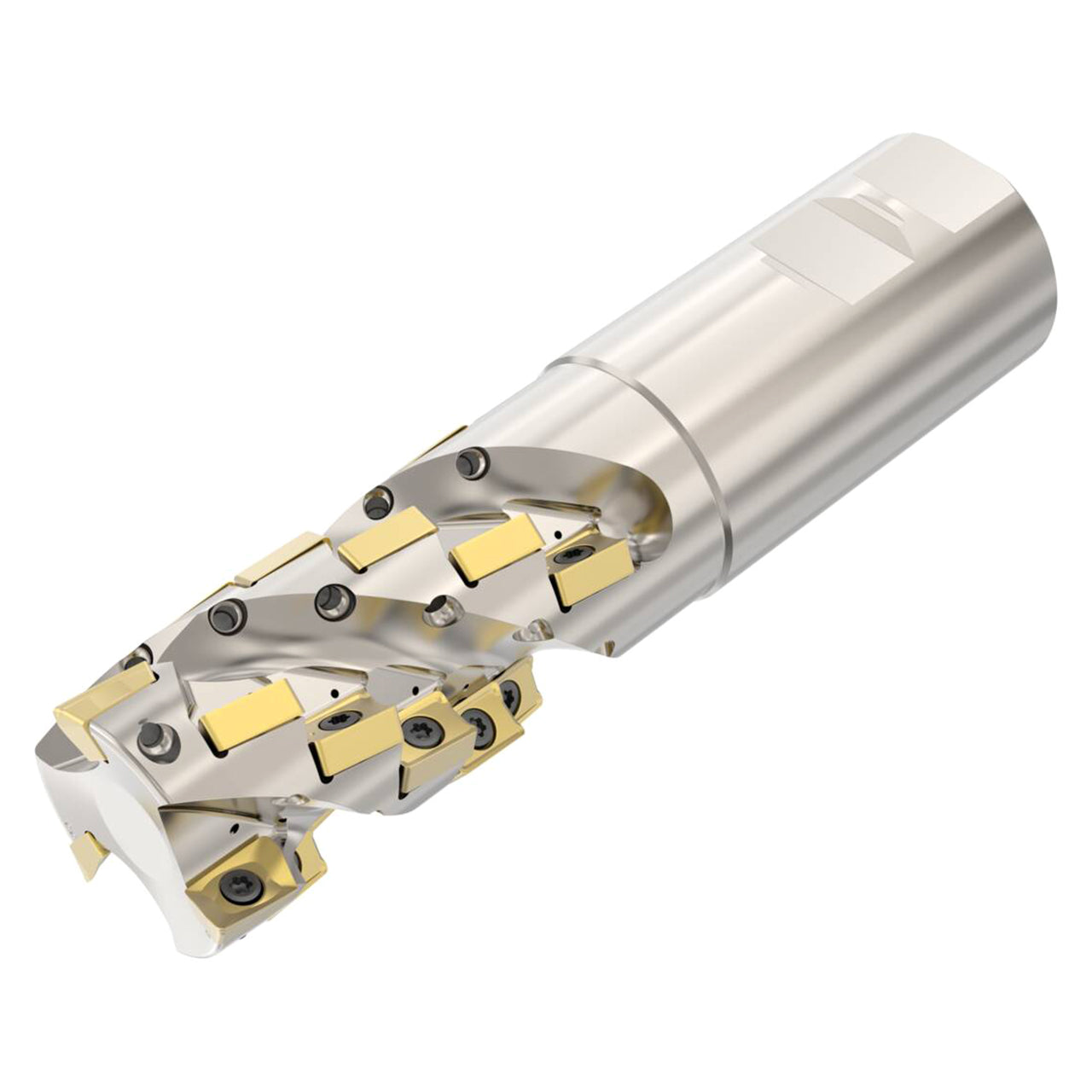

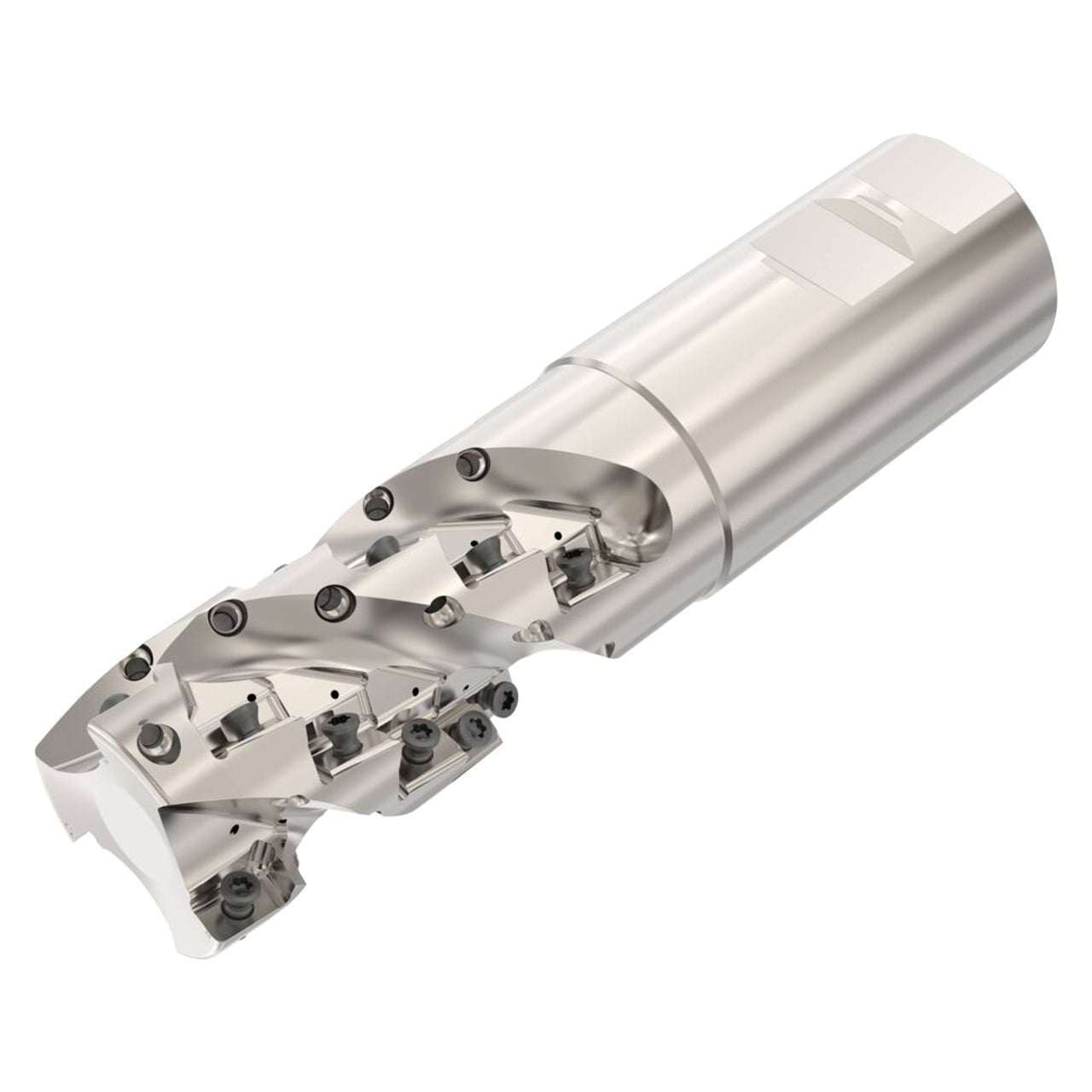

| Product Type | Indexable Square-Shoulder End Mill |
