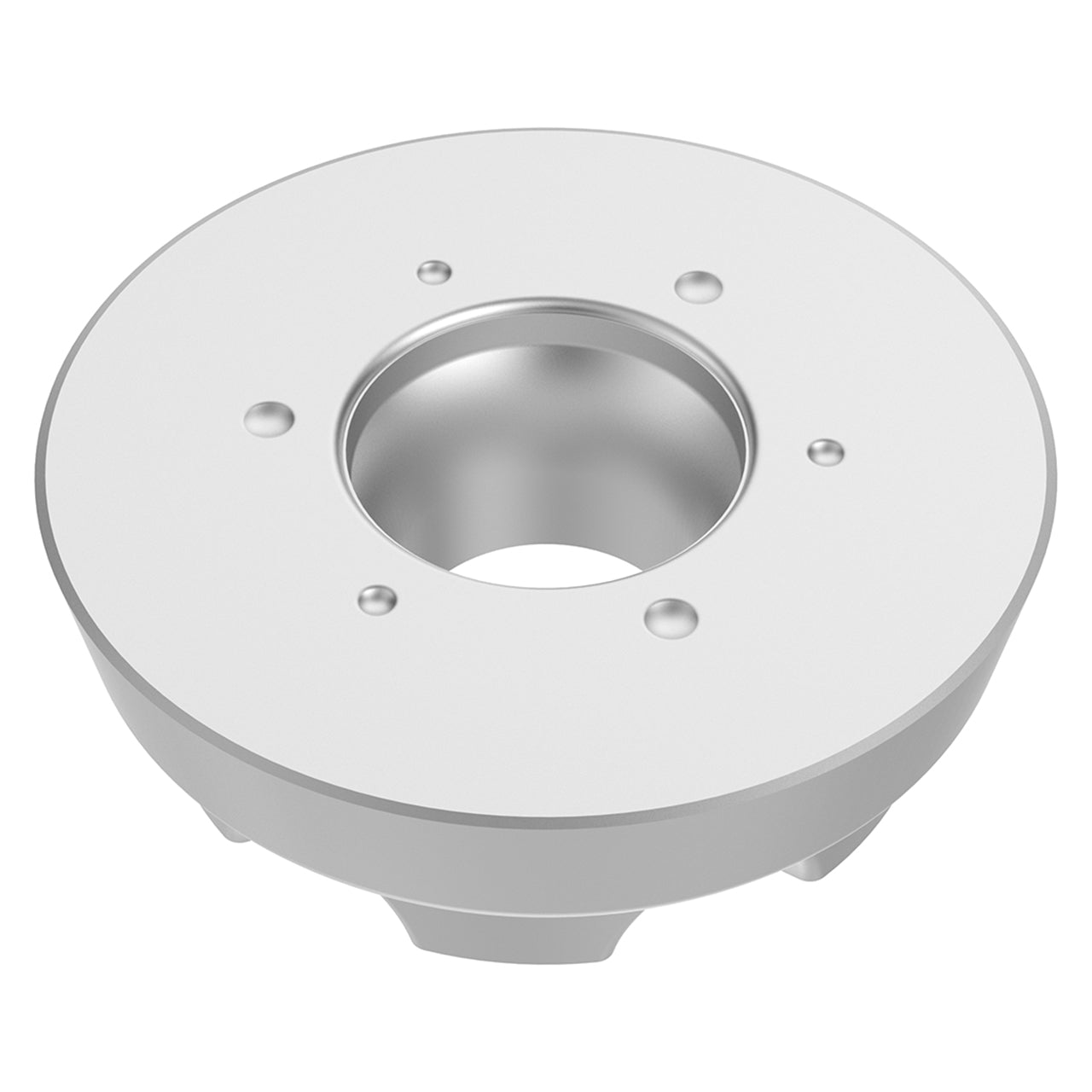

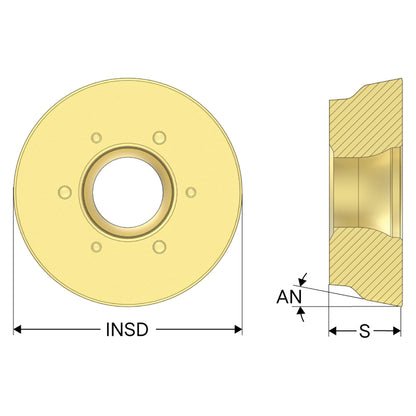

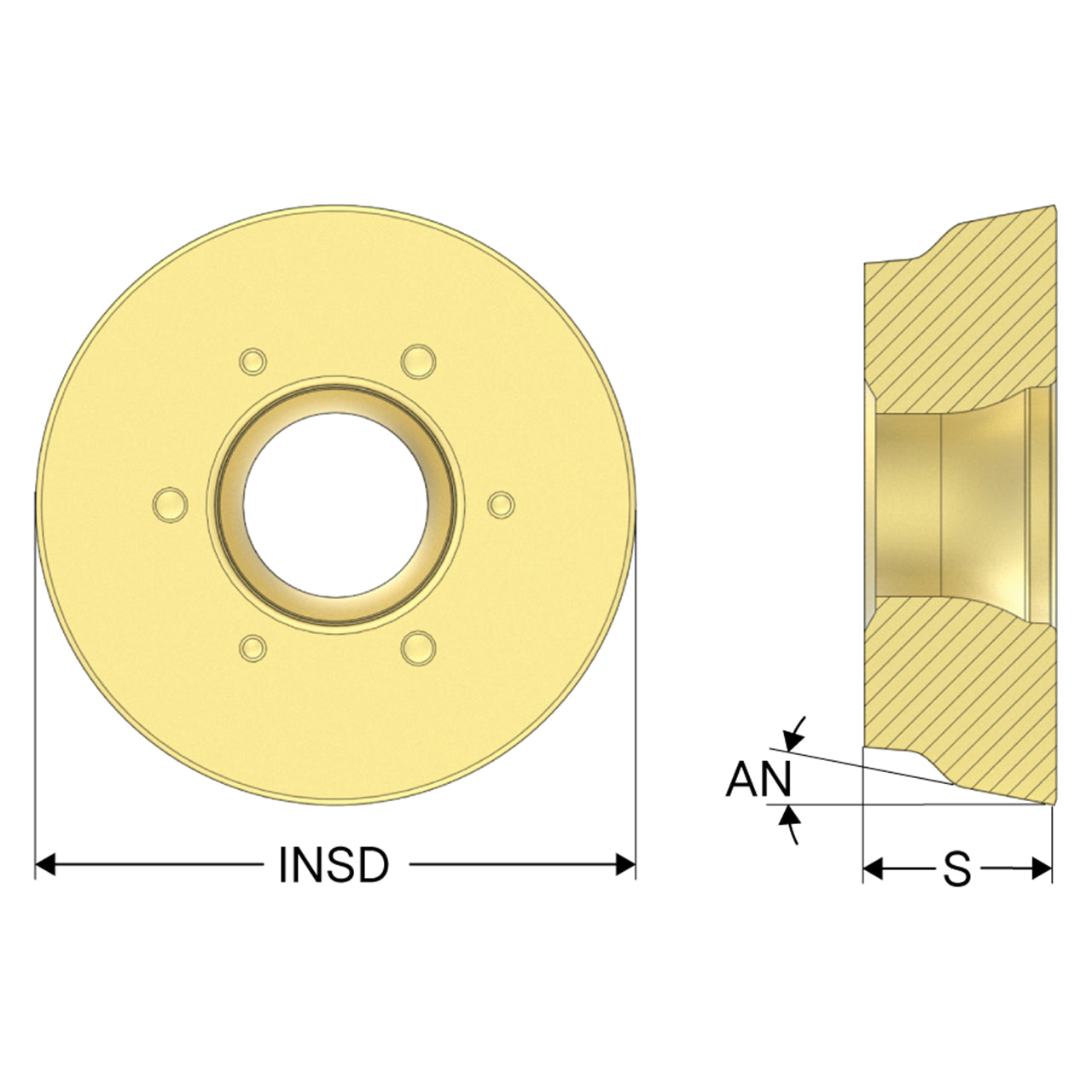

Product Specifications
| Manufacturer Part Number | 10255390 |
| Clearance Angle Major (Degree) | 11.00 Degree |
| Cutting edge count | 6 |
| Cutting Geometry Type Technical | MD22 |
| Insert size and shape | RPKW2006 |
| Insert Rake Angle (Degree) | 0.0 |
| Grade Type | Carbide CVD |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.394" |
| Insert Thickness (Decimal Inch) | 0.250" |
| Insert seat size code | 20 |
| Product Series | RPKW |
| Product Type | Copy Milling Insert |
