Product Specifications

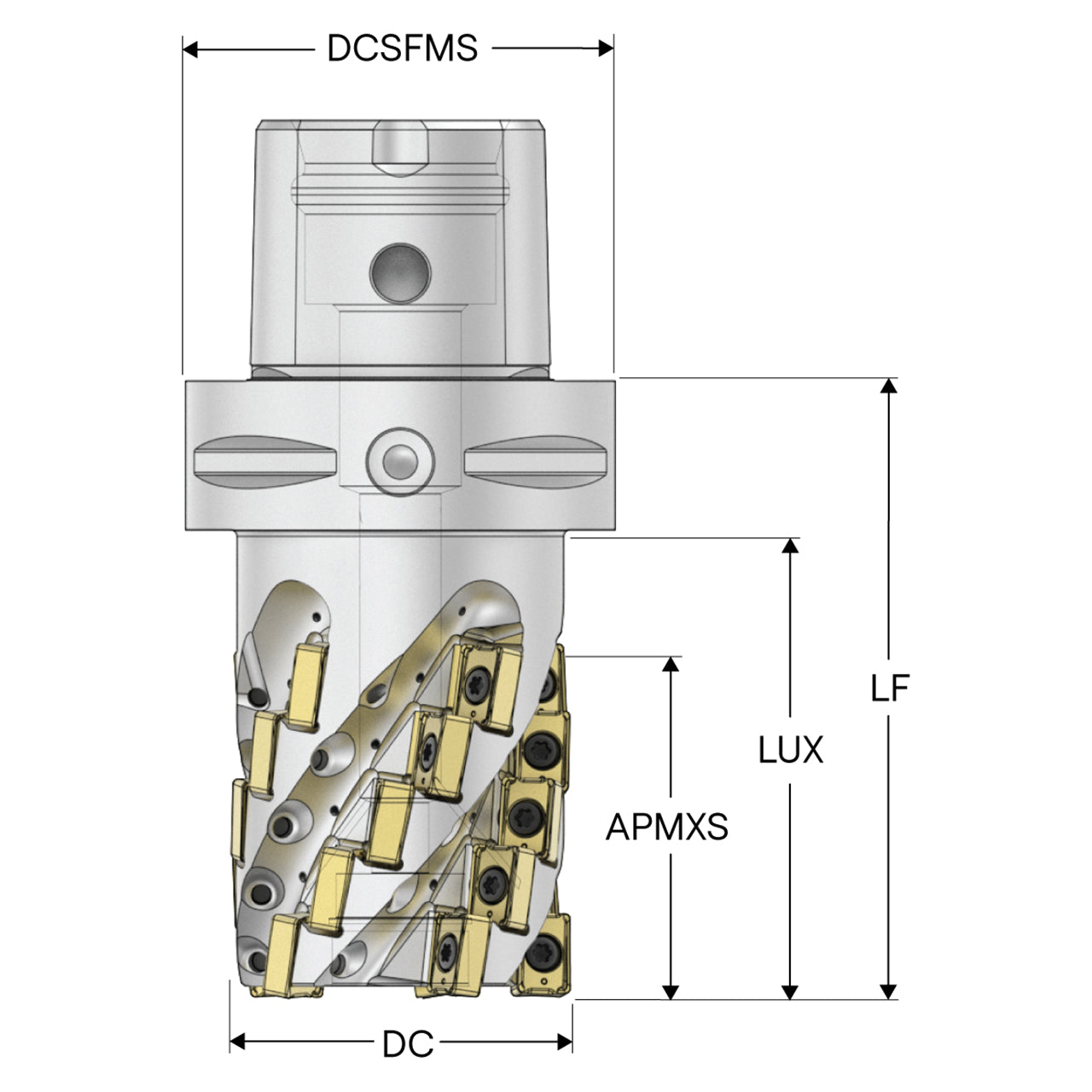

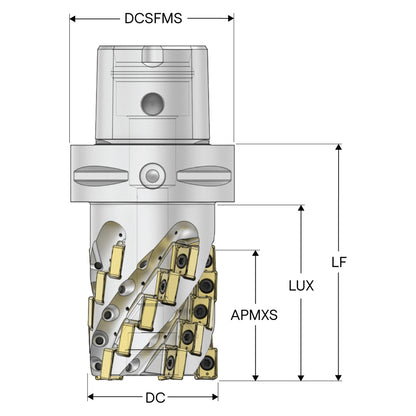

| Manufacturer Part Number | 10255177 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 49.00mm |
| Coolant Supply Property | 1 |
| Cutting Diameter (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (mm) | 88.65mm |
| Number of Flutes | 5 |
| Overall Length (mm) | 126.65mm |
| Shank Type | Seco-Capto |
| Peripheral Effective Cutting Edge Count | 5 |
| Product Series | R217.42 |

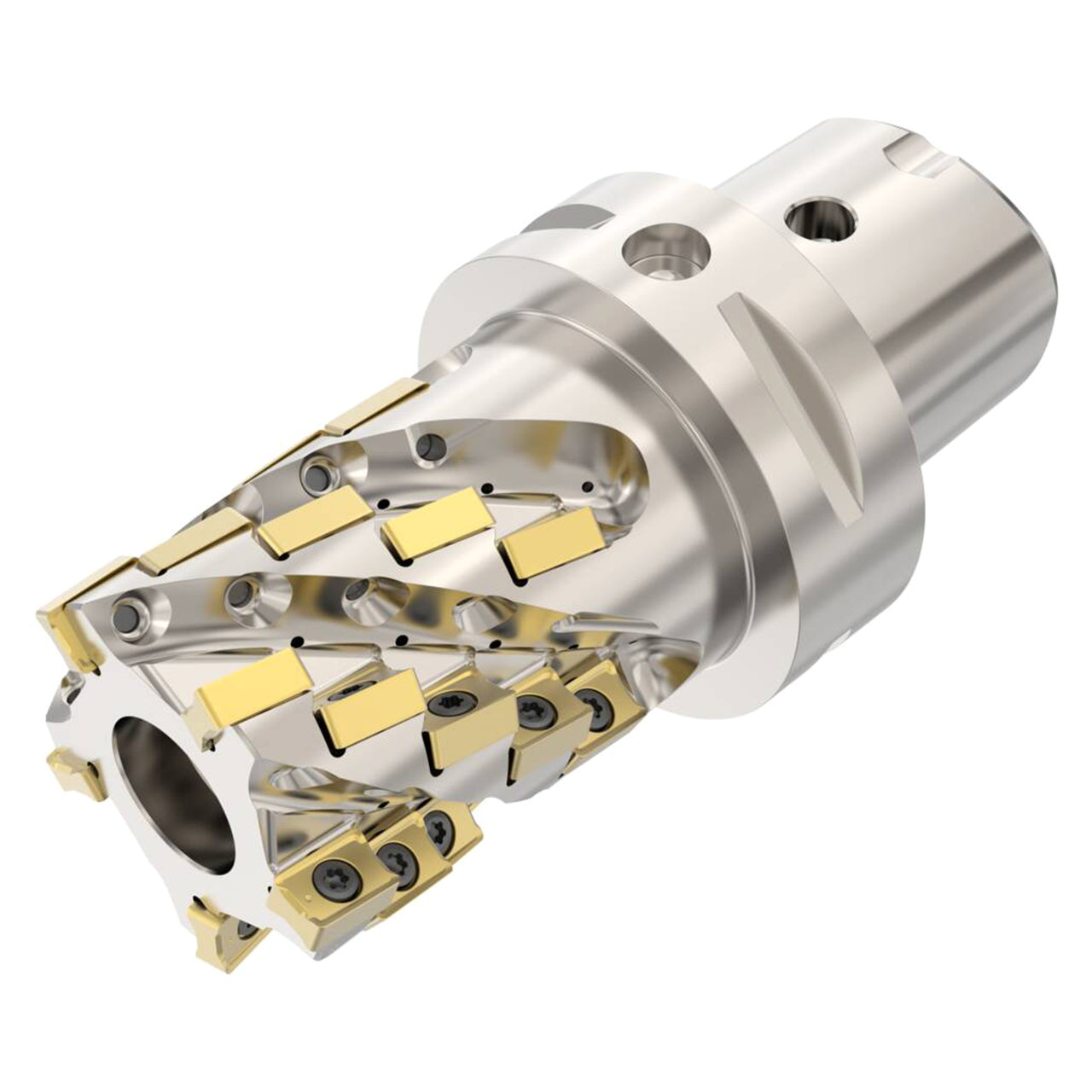

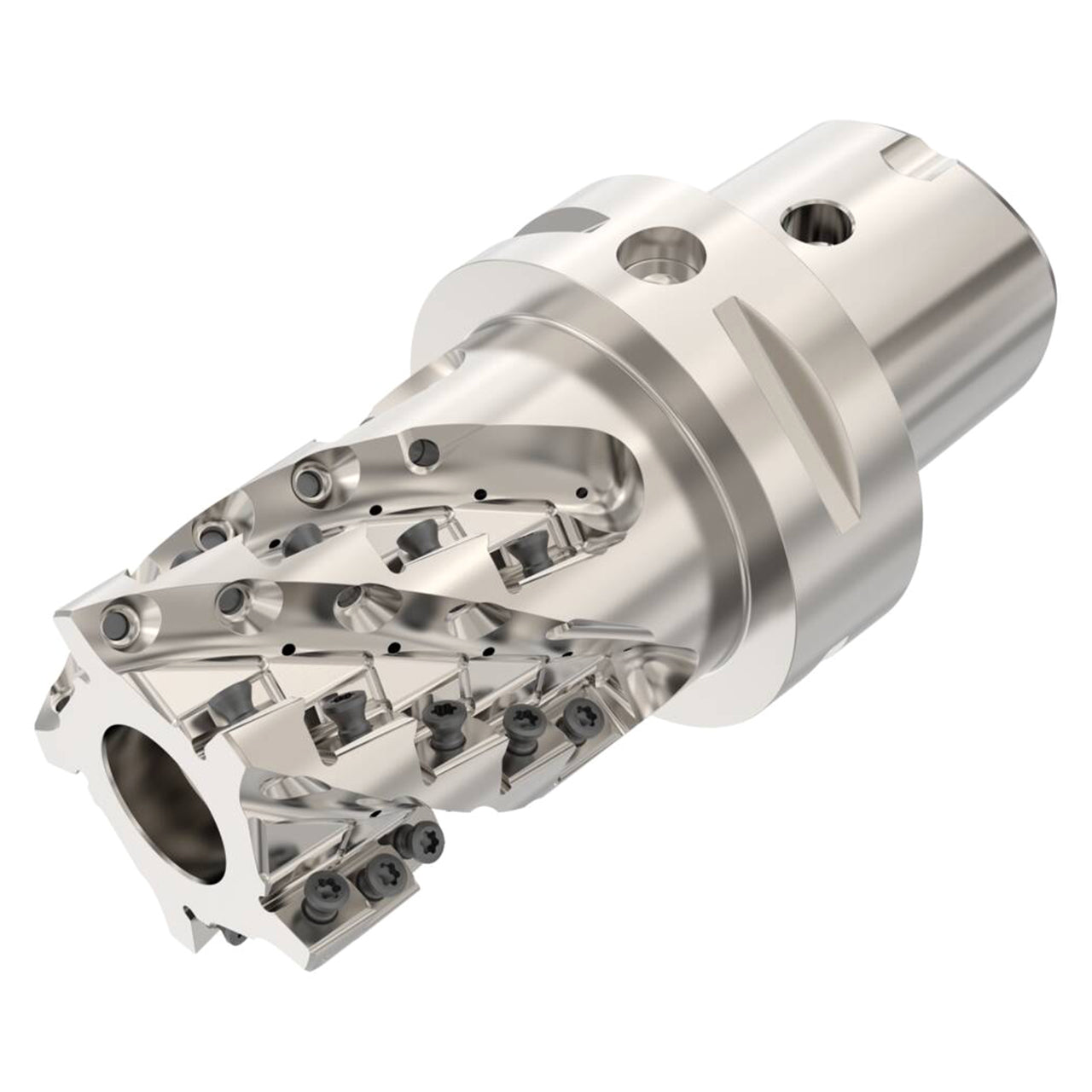

| Product Type | Indexable Square-Shoulder Face Mill |
