Seco Tools

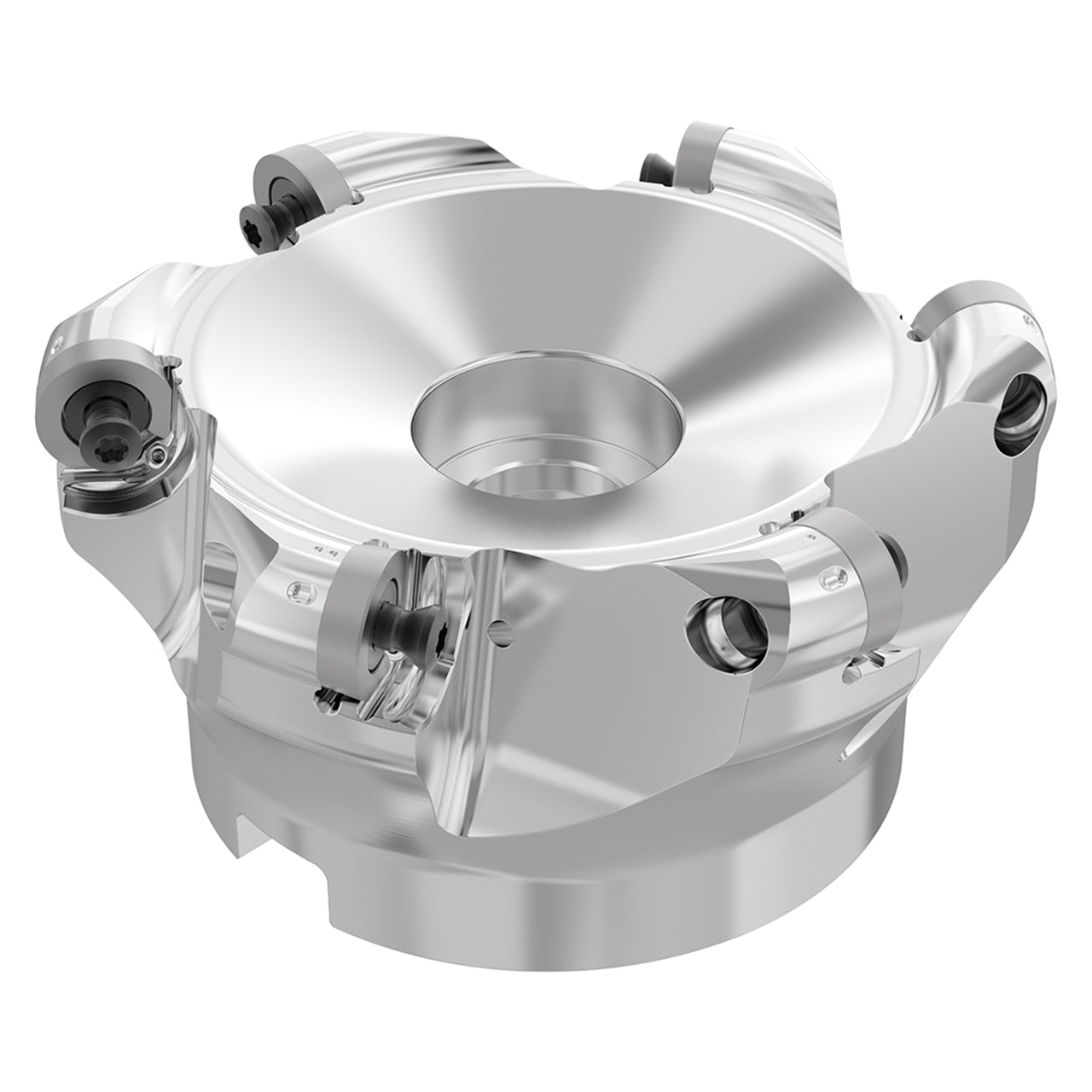

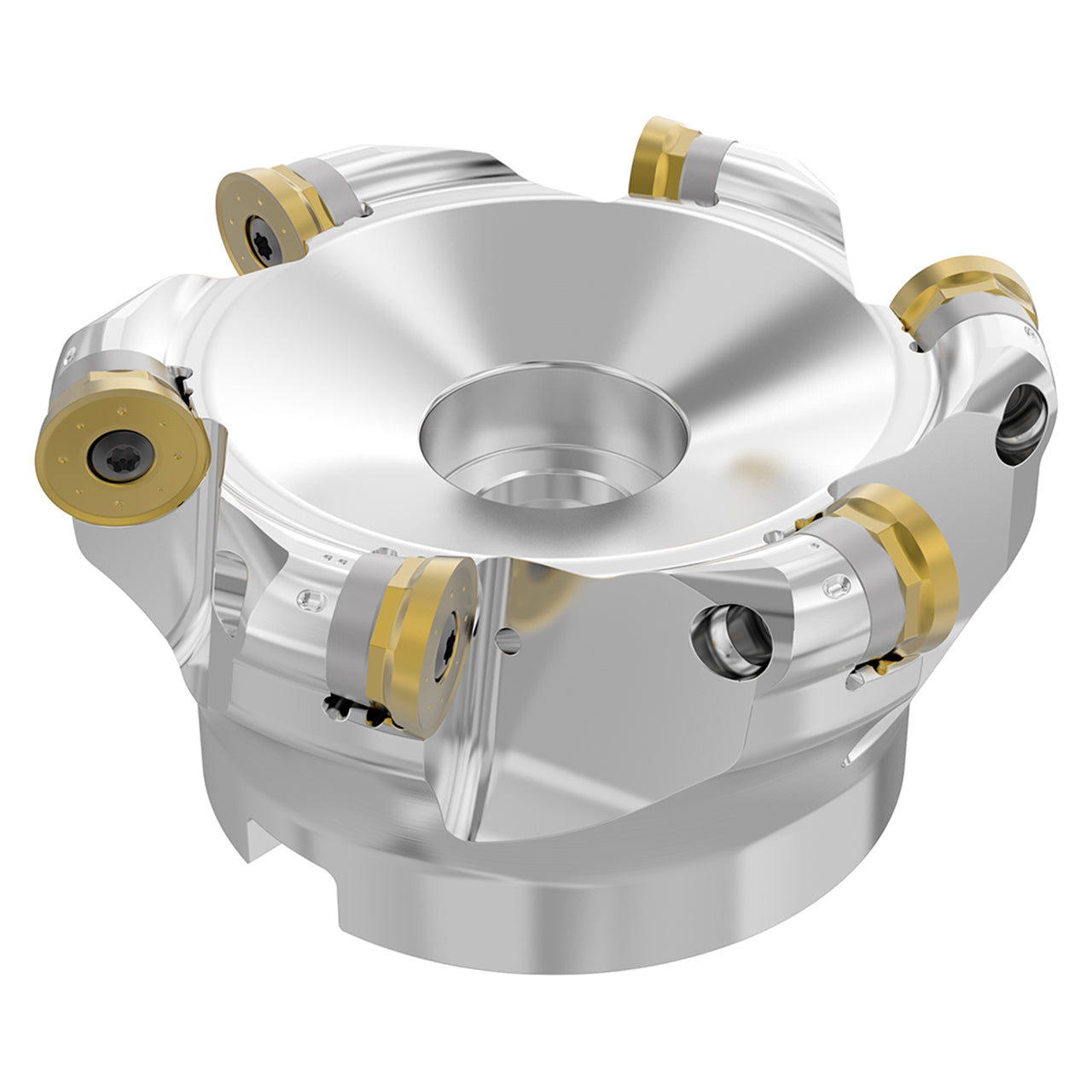

Seco Tools 10254936 | R220.29I-0125-10-6MA 105.00mm Cutting Diameter x 10.00mm Depth of Cut Maximum x 63.00mm Functional Length x 4.00 Degree Rake Axial Angle 6 Cutting Edge 4900 rpm Rotational Speed R220.29I Indexable Copy Face Mill

Seco Tools 10254936 | R220.29I-0125-10-6MA 105.00mm Cutting Diameter x 10.00mm Depth of Cut Maximum x 63.00mm Functional Length x 4.00 Degree Rake Axial Angle 6 Cutting Edge 4900 rpm Rotational Speed R220.29I Indexable Copy Face Mill

SKU: 25363759

$1,380.00 USD
$1,380.00 USD $1,380.00 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

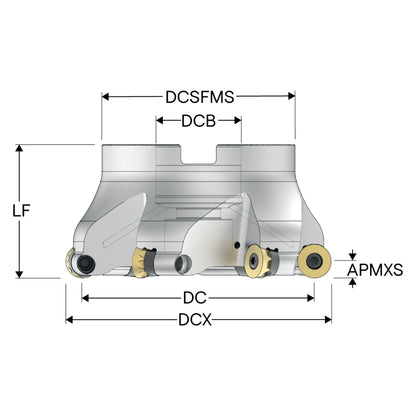

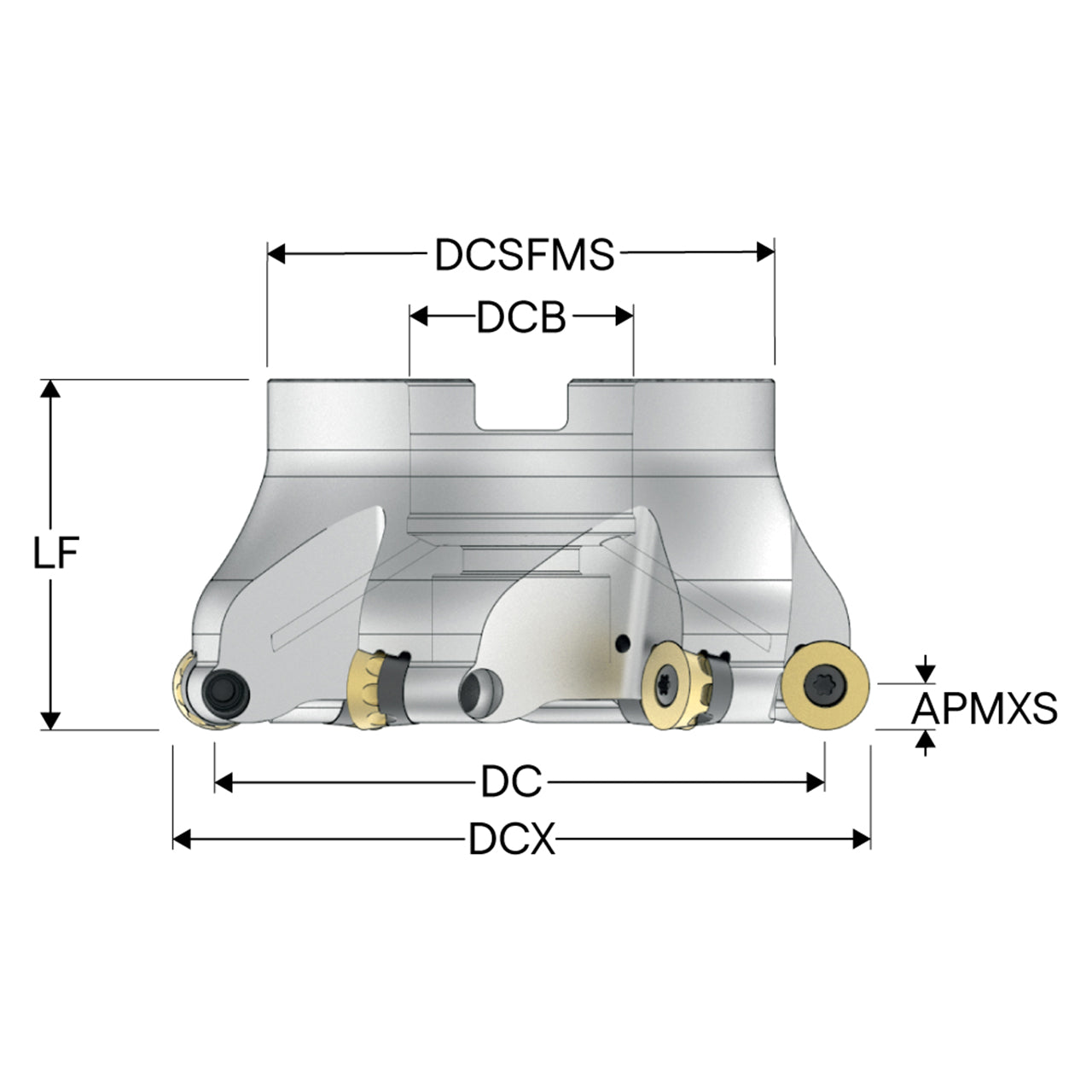

Product Specifications
Manufacturer Part Number 10254936
Depth of Cut Maximum in Feed Direction Side (mm) 10.00mm
Cutting Pitch Density Normal
Coolant Supply Property 1
Cutting Diameter (mm) 105.00mm
Connection Diameter Machine Side (mm) 40.00mm
Contact Surface Diameter Machine Side (mm) 90.00mm
Cutting Diameter Maximum (mm) 125.00mm
Functional Length (mm) 63.00mm
Rotational Speed Maximum 4900 rpm
Shank Type Arbor
Peripheral Effective Cutting Edge Count 6
Product Series R220.29I
Product Type Indexable Copy Face Mill
