Seco Tools

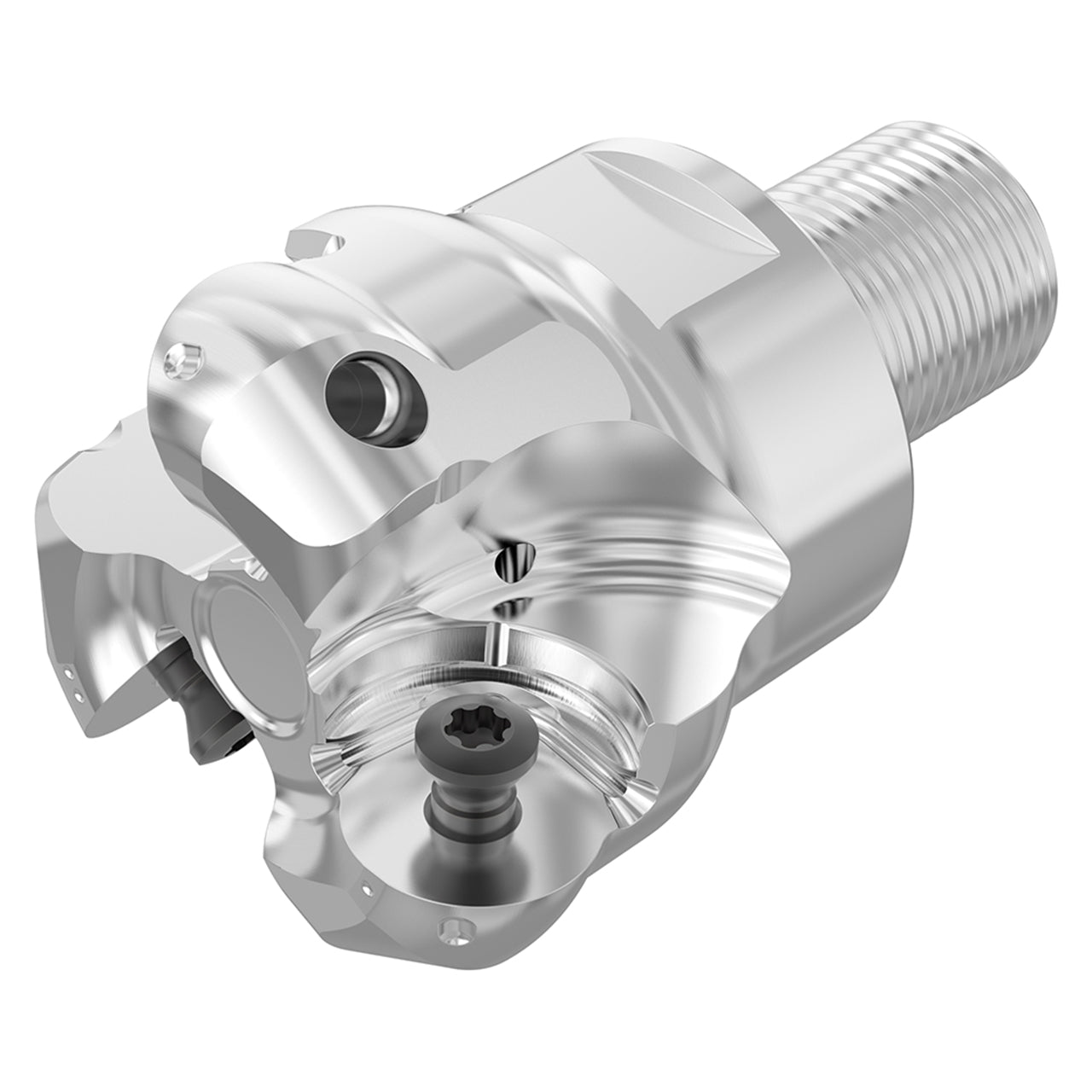

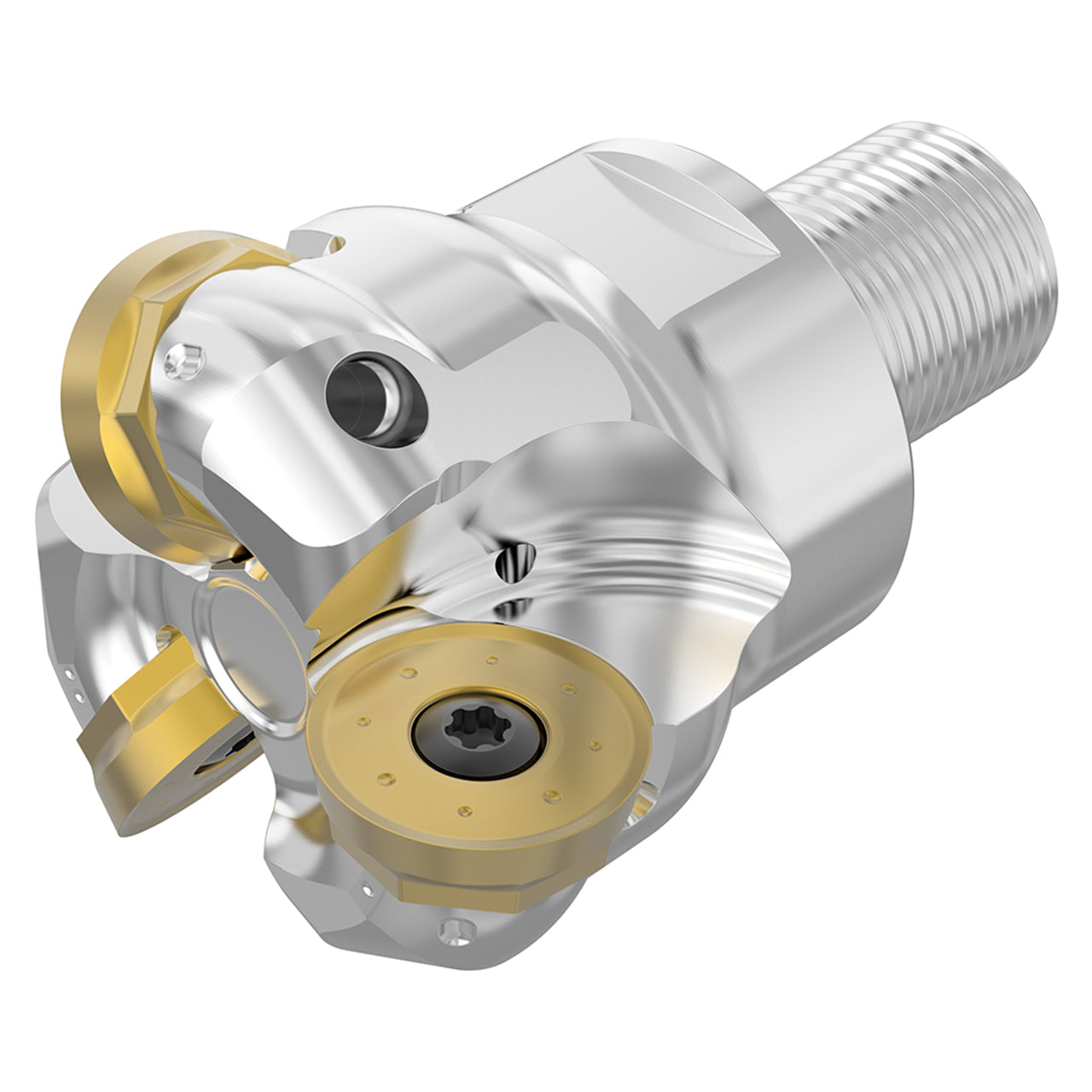

Seco Tools 10254928 | R217.29I-2050.RE-10-3A 30.00mm Cutting Diameter x 10.00mm Depth of Cut Maximum x 45.00mm Functional Length x 2.00 Degree Rake Axial Angle 3 Cutting Edge 7800 rpm Rotational Speed R217.29I Indexable Copy End Mill

Seco Tools 10254928 | R217.29I-2050.RE-10-3A 30.00mm Cutting Diameter x 10.00mm Depth of Cut Maximum x 45.00mm Functional Length x 2.00 Degree Rake Axial Angle 3 Cutting Edge 7800 rpm Rotational Speed R217.29I Indexable Copy End Mill

SKU: 25363751

$540.00 USD
$540.00 USD $540.00 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Product Specifications
Manufacturer Part Number 10254928
Depth of Cut Maximum in Feed Direction Side (mm) 10.00mm
Cutting Pitch Density Normal
Coolant Supply Property 1
Cutting Diameter (mm) 30.00mm
Contact Surface Diameter Machine Side (mm) 36.50mm
Cutting Diameter Maximum (mm) 50.00mm
Functional Length (mm) 45.00mm
Overall Length (mm) 72.00mm
Rotational Speed Maximum 7800 rpm
Shank Type Combimaster
Peripheral Effective Cutting Edge Count 3
Product Series R217.29I
Product Type Indexable Copy End Mill
