Product Specifications
| Manufacturer Part Number | 10228989 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Cutting Direction | Neutral |

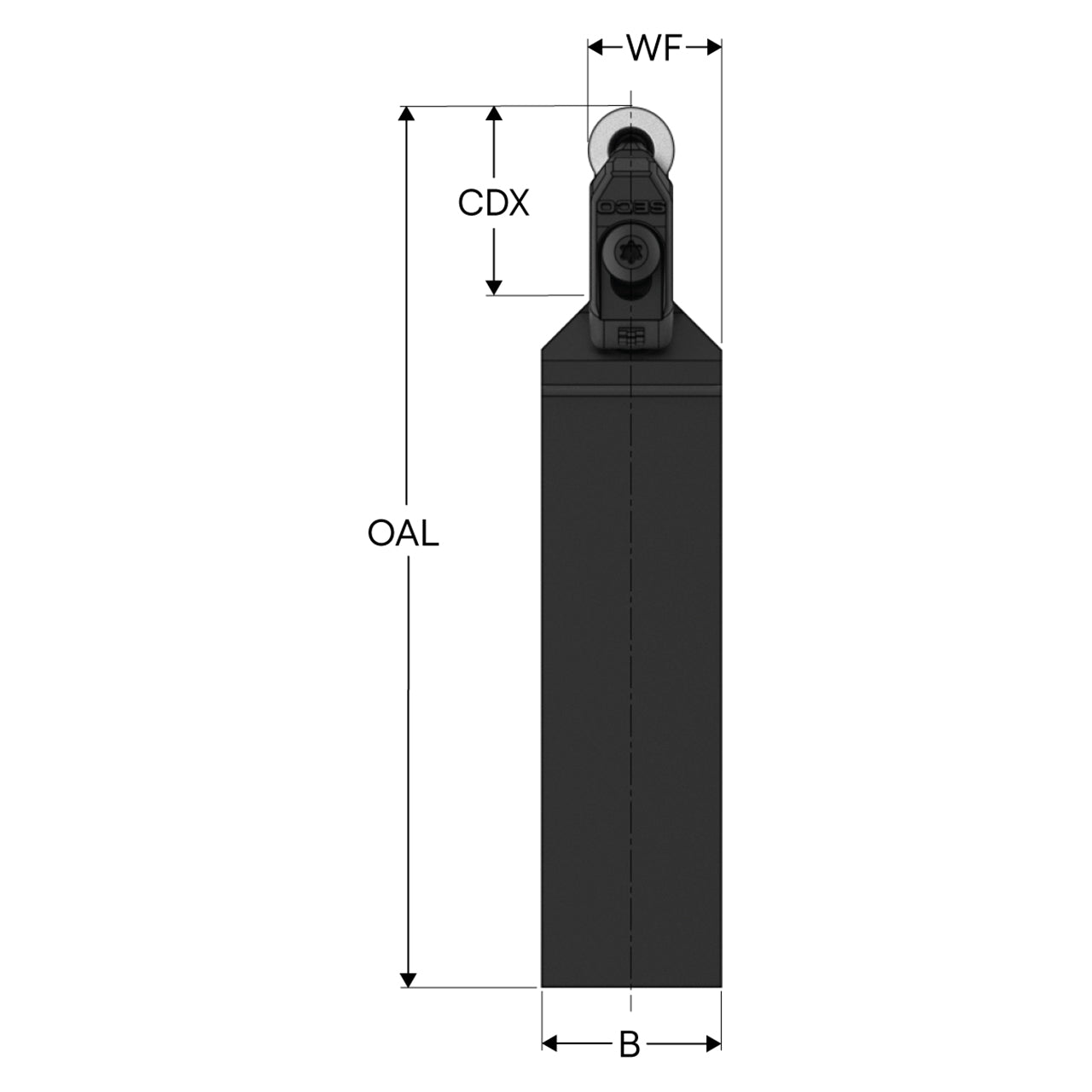

| Functional Height (Decimal Inch) | 1.250" |
| Functional Length (Decimal Inch) | 1.811" |
| Head Length (Decimal Inch) | 1.890" |
| Shank Length (Decimal Inch) | 3.819" |
| Usable Length (Decimal Inch) | 1.260" |
| Overall Length (Decimal Inch) | 5.709" |
| Shank Type | Square shank |
| Insert seat size code | 1204 |
| Version (Internal/External/Both) | External |
| Functional Width (Decimal Inch) | 0.861" |
| Product Series | DRDCN |
| Product Type | Indexable Turning Toolholder |
