Product Specifications
| Manufacturer Part Number | 10228532 |

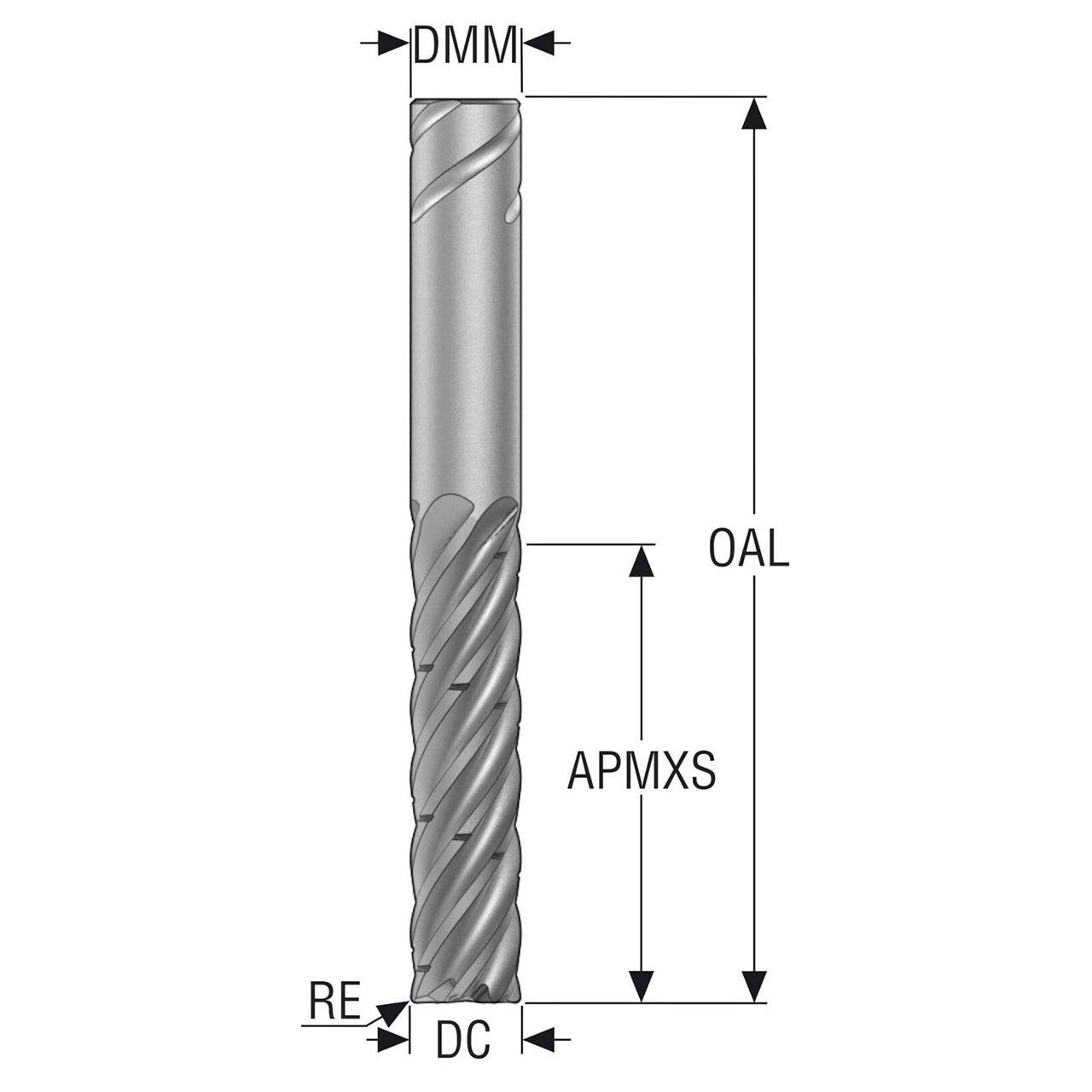

| Cutting Diameter (mm) | 16.00mm |
| Cutting Diameter 1 (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 27.80mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 20.80mm |
| Overall Length (mm) | 130.00mm |
| Cutting Edge Effective Length (mm) | 65.00mm |
| Maximum Depth of Cut (mm) | 65.00mm |
| Corner Radius (mm) | 2.00mm |
| Shank Type | Safe-lock |
| Cutting Edge Count | 6 |
| Cutting Geometry Type | JS720 |
| Cutting Geometry Type Technical | JS720 |
| Face Cutting Edge Count | 6 |
| Flute Helix Angle (Degree) | 38 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 6 |
| Material | Carbide |
| Coating | HXT |

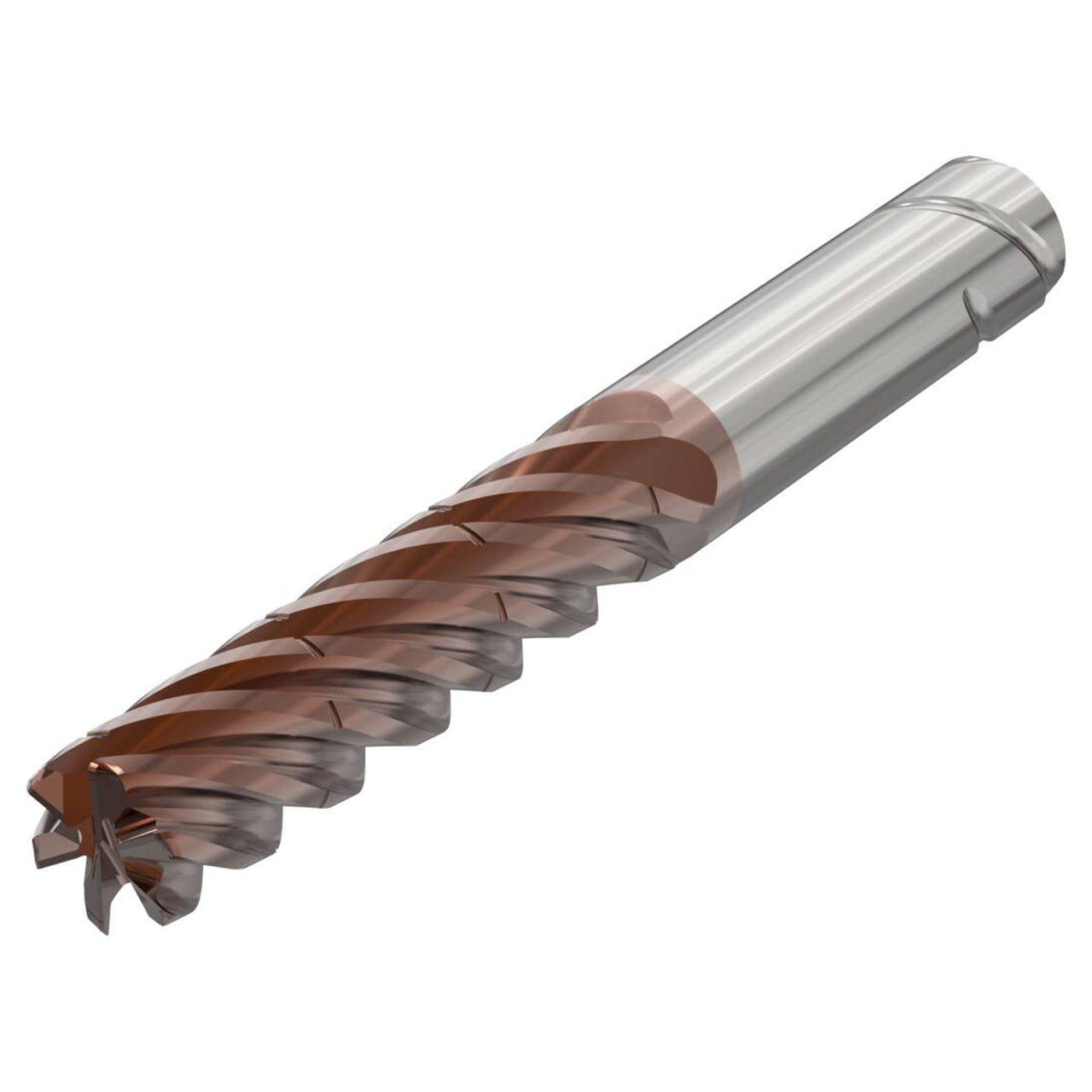

| Product Type | Corner Radius End Mill |
