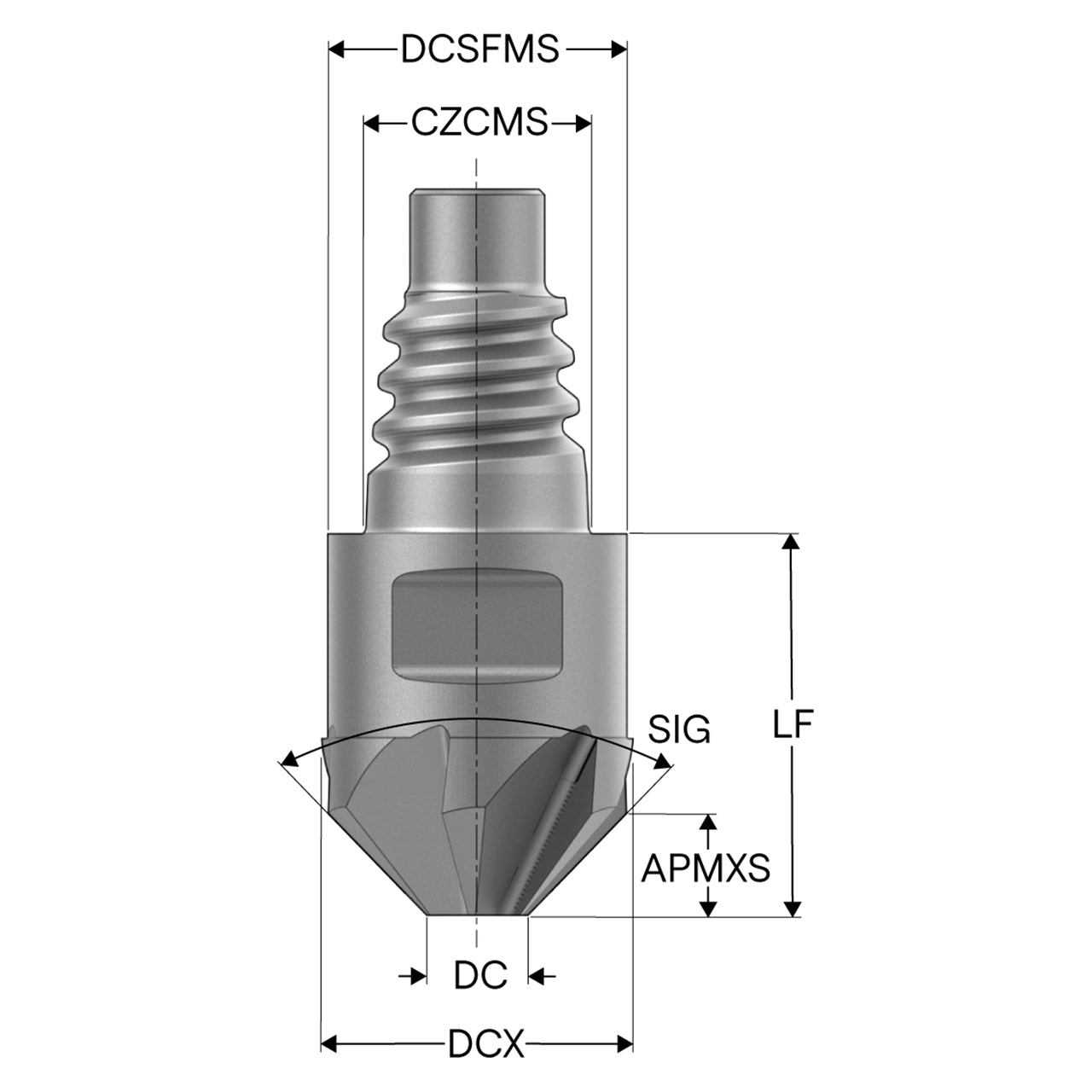

Product Specifications
| Manufacturer Part Number | 10219277 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 4.00mm |
| Center Cutting Capability | No |
| Cutting Geometry Type | XS5061 |
| Coating | SIRON-A |
| Coolant Supply Property | No |
| Cutting Diameter (mm) | 1.95mm |
| Contact Surface Diameter Machine Side (mm) | 9.70mm |
| Cutting Diameter Maximum (mm) | 10.10mm |
| Face Cutting Edge Count | 6 |
| Flute Helix Angle (Degree) | -10 Degree |
| Functional Length (mm) | 12.30mm |
| Overall Length (mm) | 23.50mm |
| Cutting Edge Count | 6 |
| Torque (Nm) | 12.00nm |
| Product Series | XS5061 |

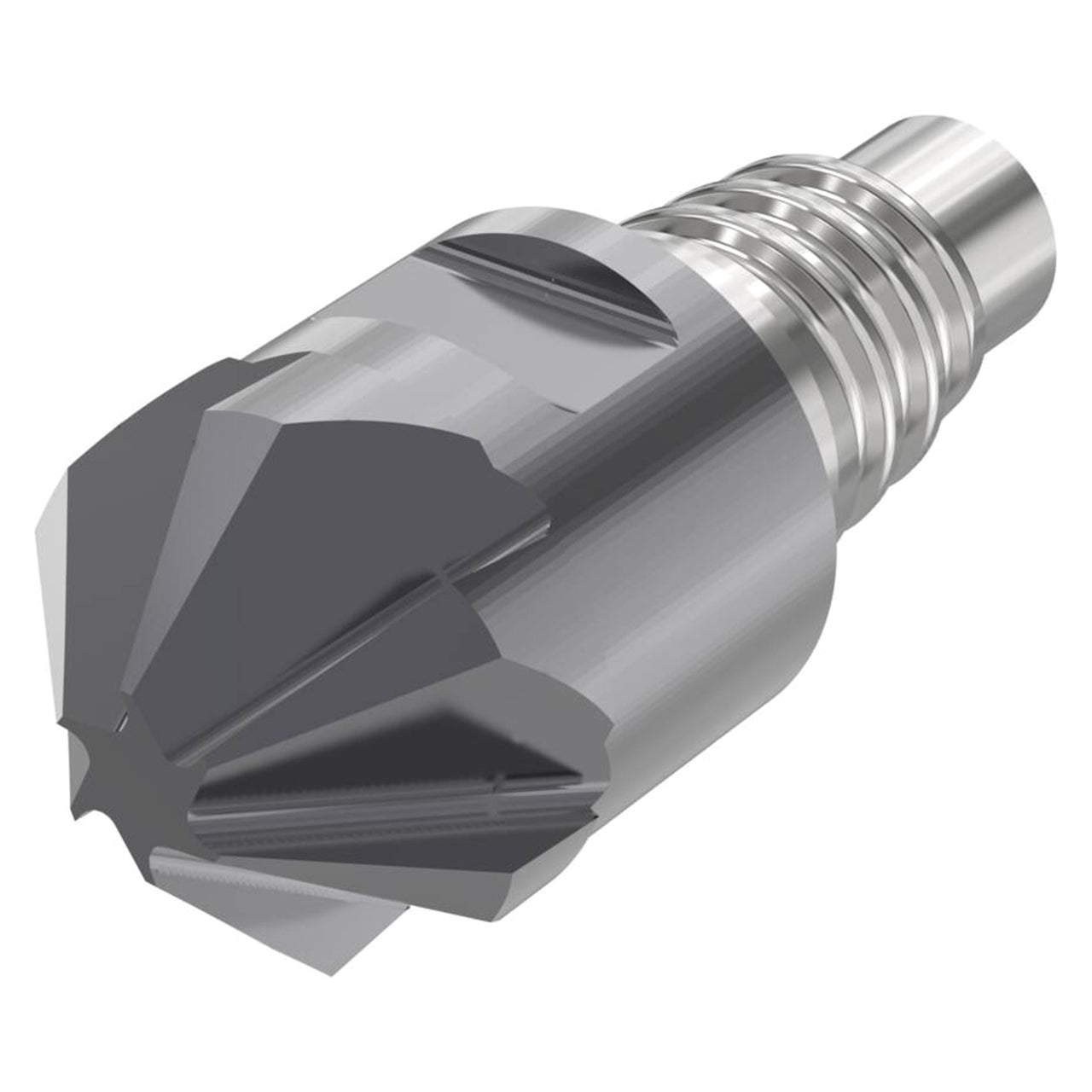

| Product Type | Chamfer Milling Tip Insert |
