Product Specifications
| Manufacturer Part Number | 10218138 |
| Cutting edge count | 16 |
| Cutting Geometry Type Technical | M45 |

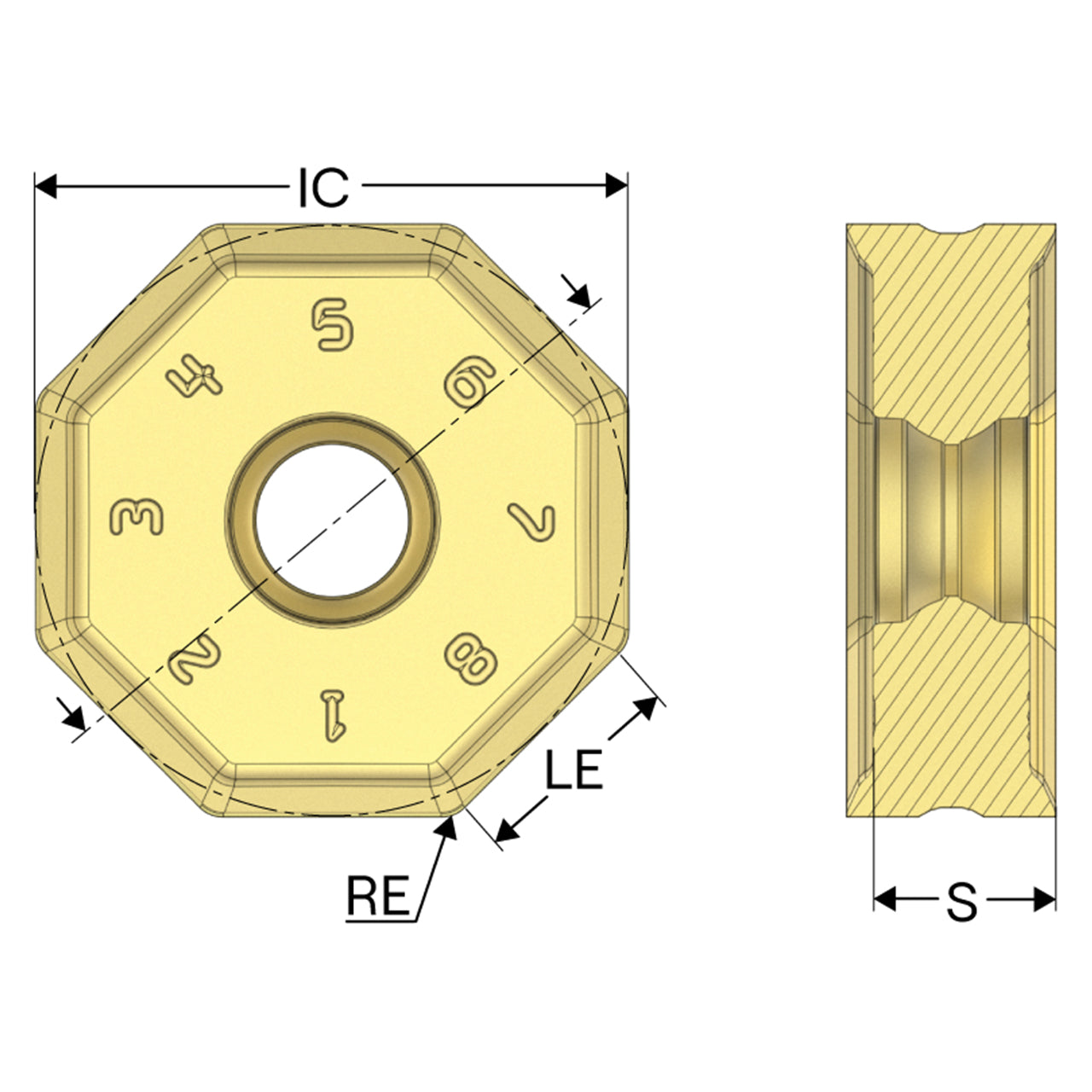

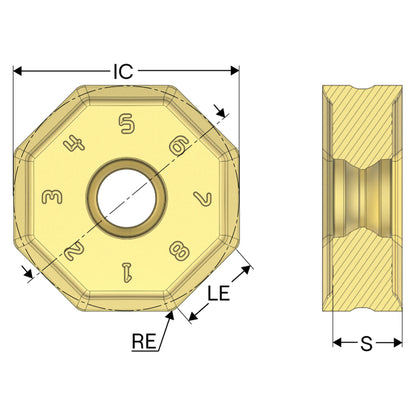

| Insert size and shape | ONMU0905 |
| Grade Type | Carbide CVD |
| Inscribed Circle Diameter (Decimal Inch) | 0.866" |
| Insert Hand | Neutral |
| Cutting Edge Effective Length (Decimal Inch) | 0.319" |
| Corner Radius (Decimal Inch) | 0.047" |
| Insert Thickness (Decimal Inch) | 0.256" |
| Product Series | ONMU |

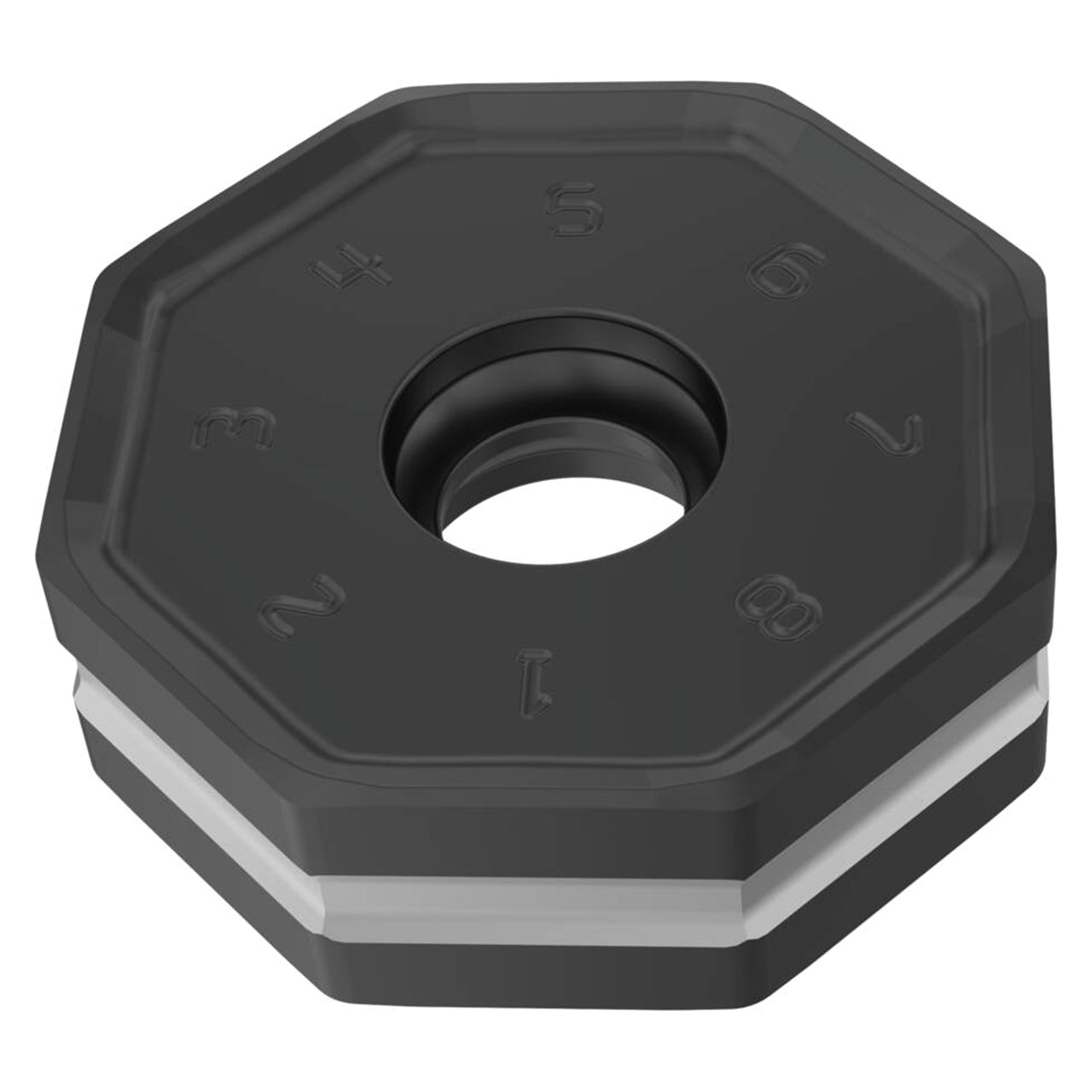

| Product Type | Milling Insert |
