Product Specifications
| Manufacturer Part Number | 10215193 |
| Cutting Diameter (mm) | 76.20mm |

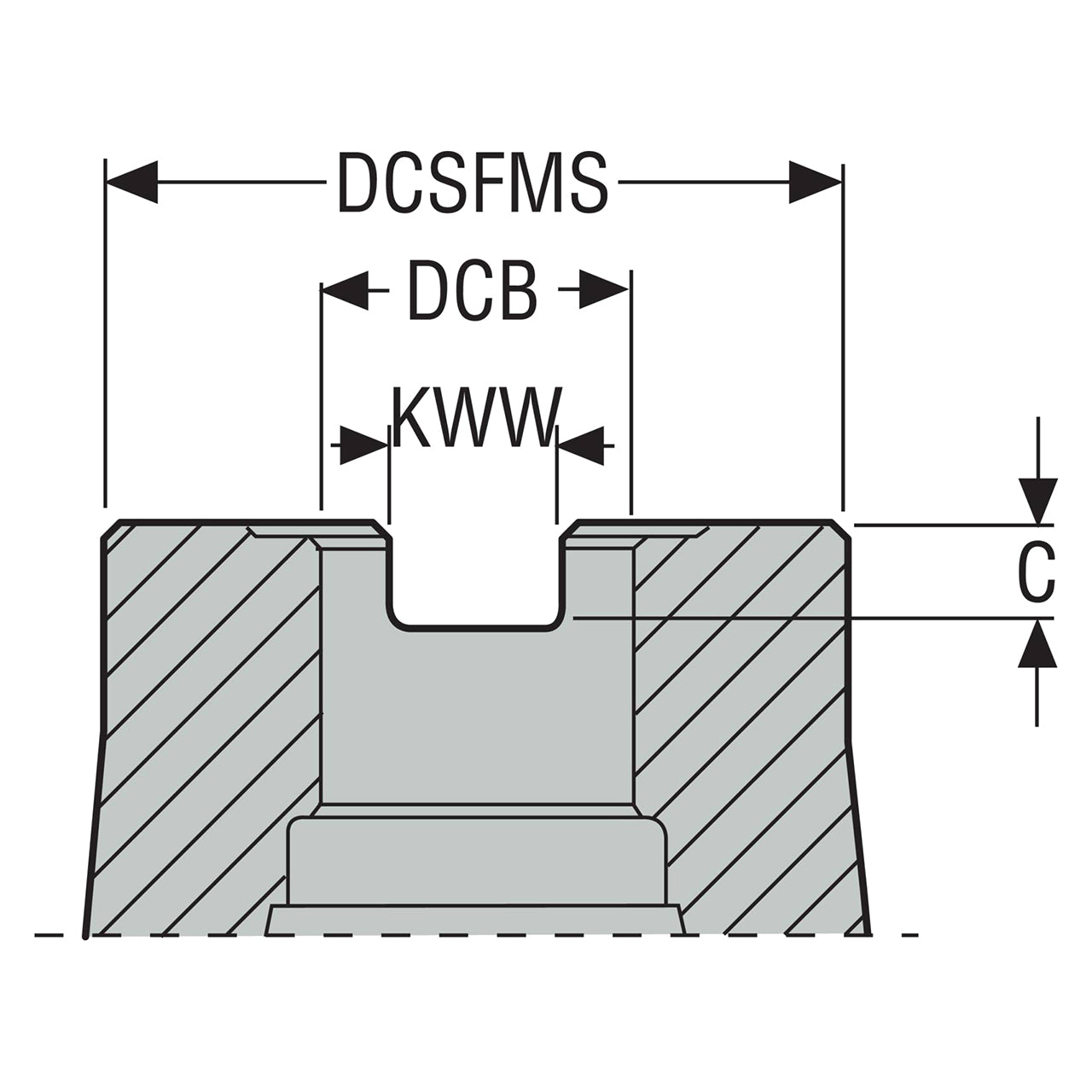

| Connection Bore Diameter (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (mm) | 72.90mm |
| Functional Length (mm) | 95.00mm |
| Maximum Depth of Cut (mm) | 81.00mm |
| Depth of Key Way (mm) | 7.30mm |
| Keyway Width (mm) | 12.90mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -20 Degree |
| Rake Radial Angle (Degree) | -20 Degree |
| Rake Orthogonal Angle (Degree) | -19 Degree |
| Axial Rake Angle (Degree) | -5.5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 5 |
| Maximum Rotational Speed (rpm) | 8000 rpm |
| Insert Shape Code | L |
| Shank Type | Arbor |

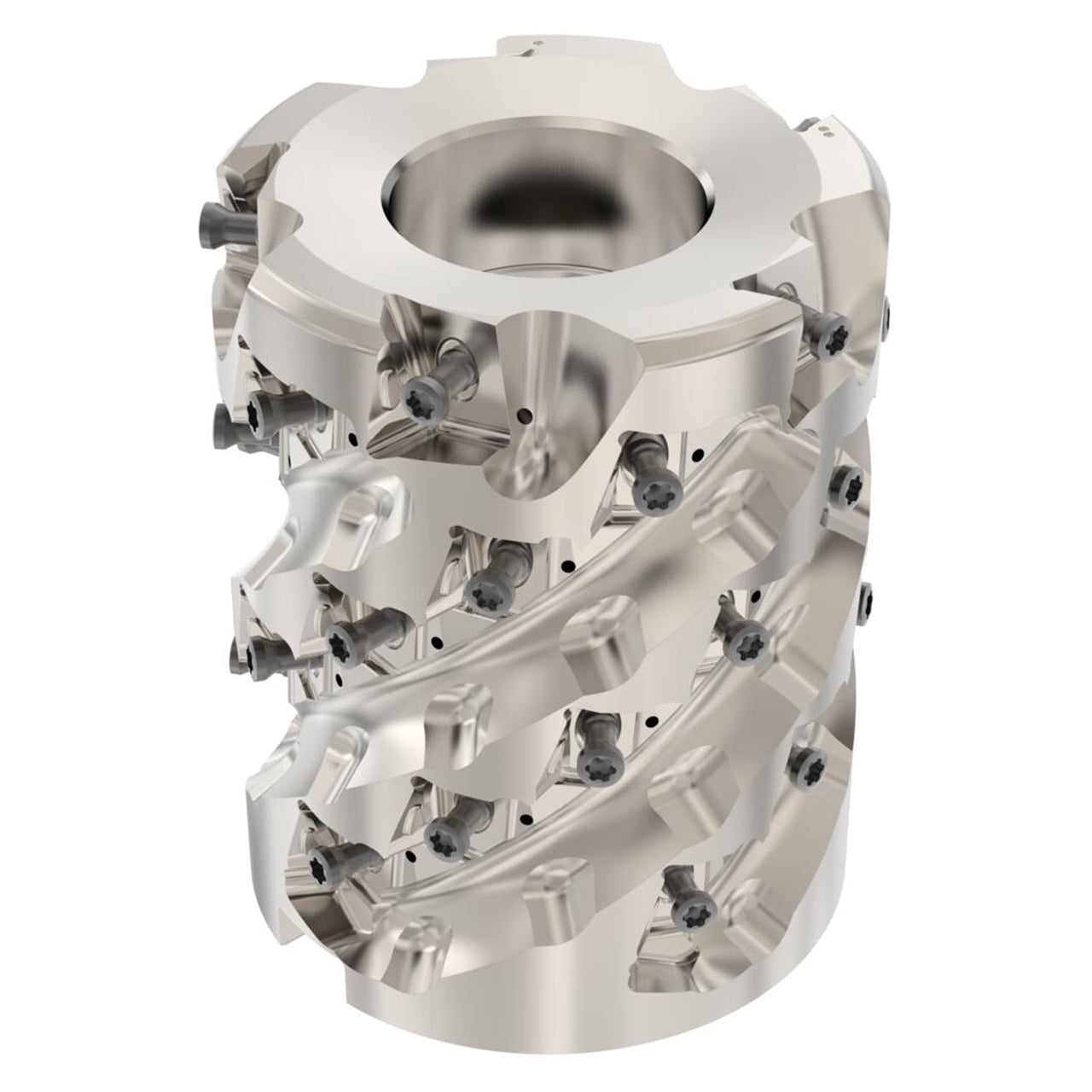

| Product Type | Indexable Square-Shoulder End Mill |
