Product Specifications

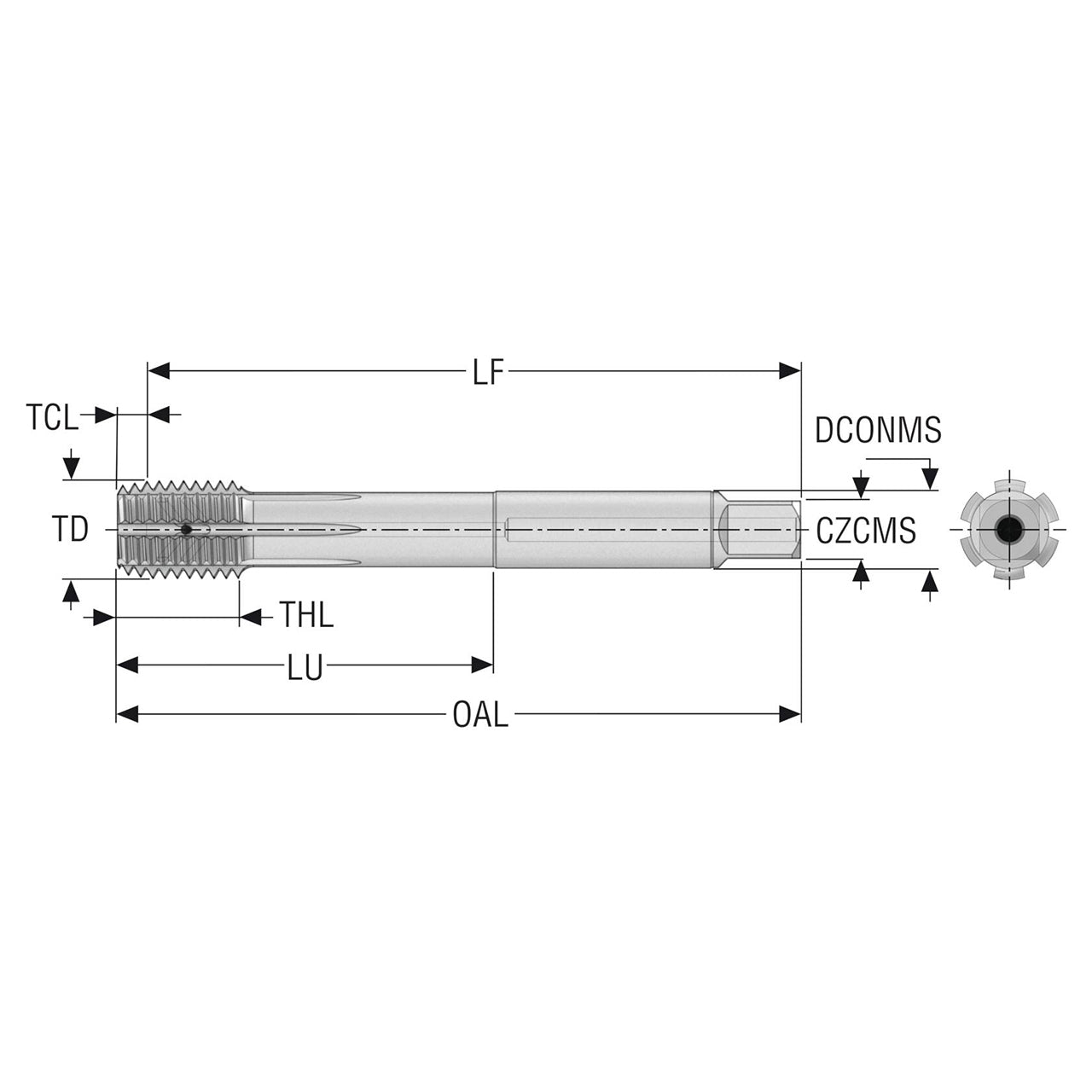

| Manufacturer Part Number | 10208932 |
| Thread Diameter (mm) | 18.00mm |
| Threading Chamfer Length (mm) | 6.95mm |
| Tap Chamfer Length (mm) | 6.95mm |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Shank Diameter (mm) | 14.00mm |
| Functional Length (mm) | 118.00mm |
| Usable Length (mm) | 81.00mm |
| Overall Length (mm) | 125.00mm |
| Thread Length (mm) | 25.00mm |
| Thread Diameter Size | M18 |
| Recommended Premachined Hole Diameter (mm) | 16.85mm |
| Connection Size Code | 14.00x11.00 |
| Connection Size Code Machine Side | 14.00x11.00 |
| Maximum Premachined Hole Diameter (mm) | 16.85mm |
| Minimum Thread Pitch (mm) | 2.50mm |
| Maximum Thread Pitch (mm) | 2.50mm |
| Number of Flute | 6 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |

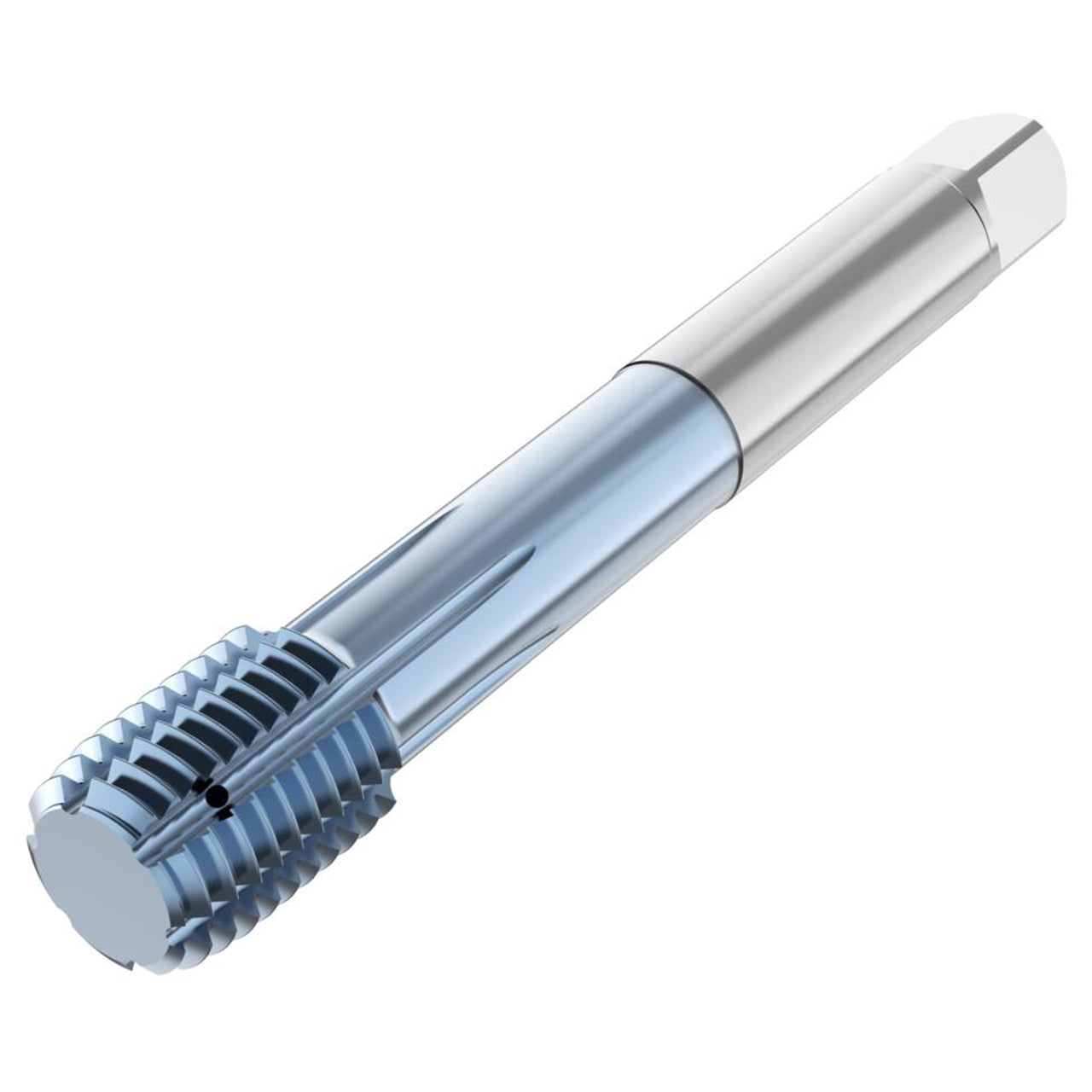

| Product Type | Thread Forming Tap |
