Product Specifications

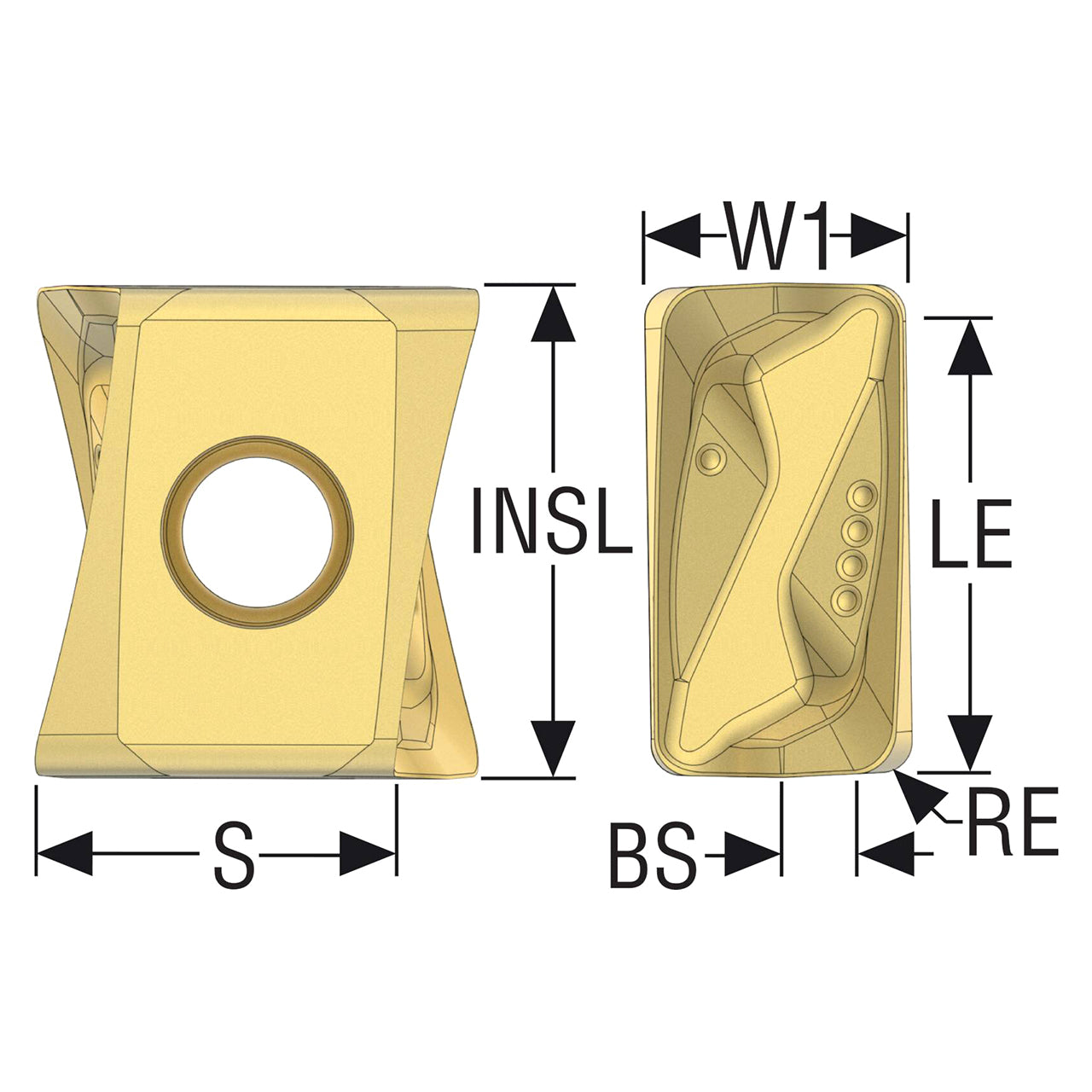

| Manufacturer Part Number | 10207764 |
| Cutting Edge Effective Length (mm) | 12.00mm |
| Wiper Edge Length (mm) | 1.74mm |
| Insert Length (mm) | 14.20mm |
| Corner Radius (mm) | 1.60mm |
| Insert Thickness (mm) | 10.12mm |
| Cutting Edge Count | 4 |
| Insert Rake Angle (Degree) | 30 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD13 |
| Pocket Seat Code of The Cutter | LO.X1207 |
| Insert Size And Shape | LOEX1207 |
| Insert Shape Code | L |
| Material | Carbide |
| Product Type | Milling Insert |
