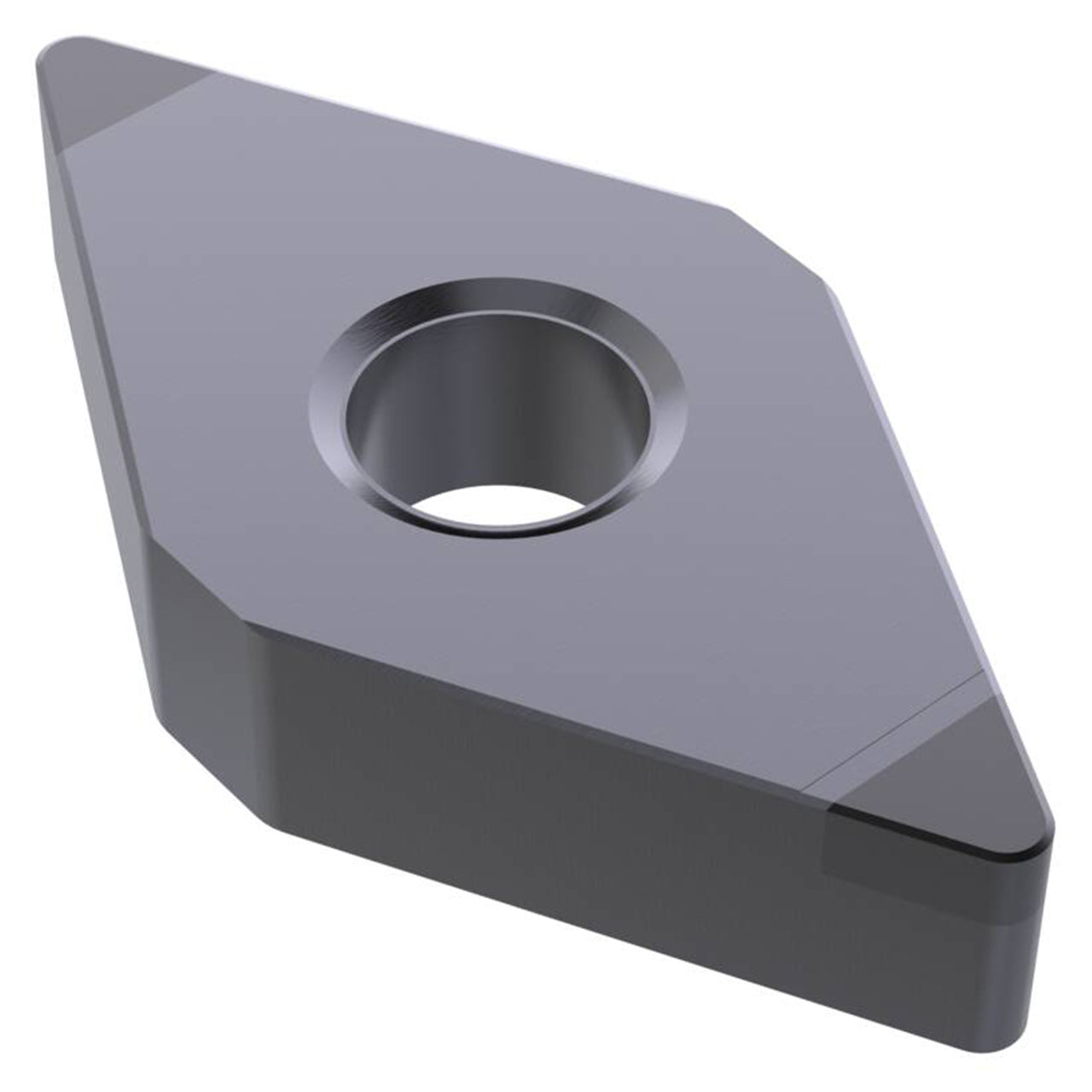

Product Specifications
| Manufacturer Part Number | 10199379 |
| Fixing Hole Diameter (mm) | 5.15mm |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (mm) | 3.10mm |
| Theoretical Cutting Edge Length (mm) | 15.00mm |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 2 |
| Insert Included Angle (Degree) | 55 Degree |
| Cutting Edge Condition Code | S |
| Insert Size And Shape | DN1506 |
| Insert Shape Code | D |
| Material | PCBN |
| Product Type | Turning Insert |
