Product Specifications
| Manufacturer Part Number | 10198816 |
| Fixing Hole Diameter (mm) | 5.60mm |

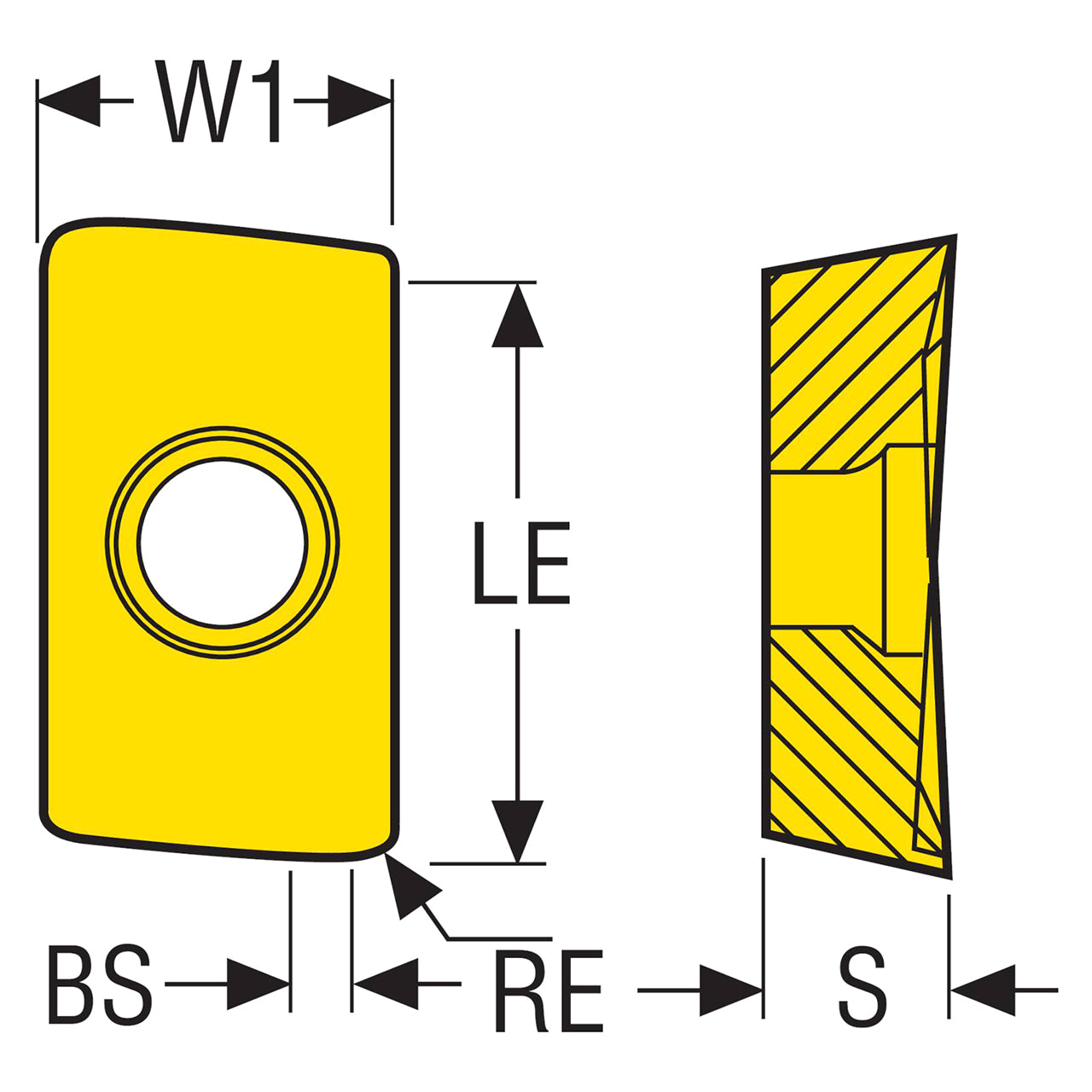

| Cutting Edge Effective Length (mm) | 24.40mm |
| Theoretical Cutting Edge Length (mm) | 25.56mm |
| Wiper Edge Length (mm) | 2.00mm |
| Corner Radius (mm) | 1.60mm |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 5 Degree |
| Insert Included Angle (Degree) | 85 Degree |
| Insert Rake Angle (Degree) | 17 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M15 |
| Pocket Seat Code of The Cutter | AB.X2606 |
| Insert Size And Shape | ABEX2606 |
| Insert Shape Code | A |
| Material | Carbide |
| Product Type | Milling Insert |
