Product Specifications
| Manufacturer Part Number | 10198751 |

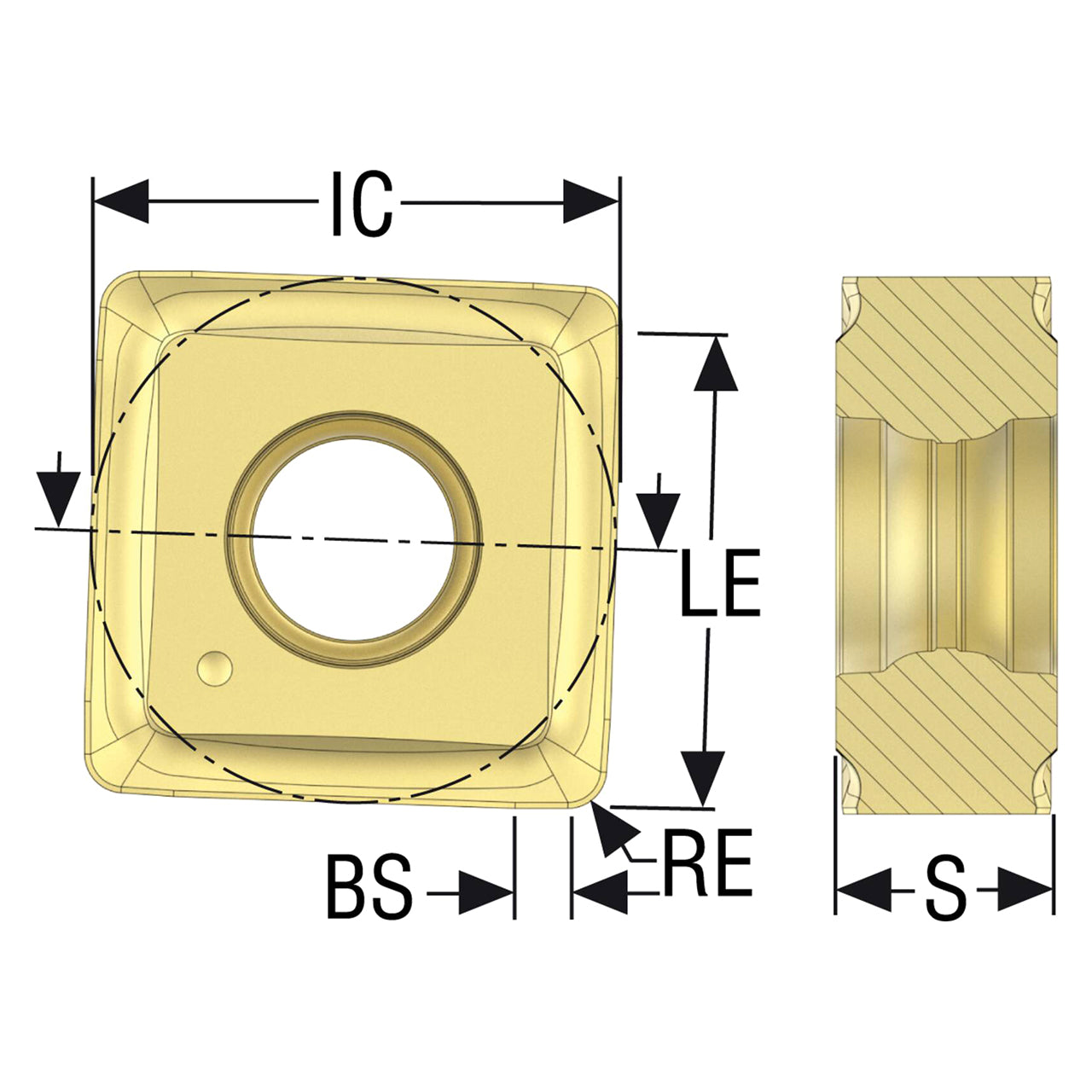

| Inscribed Circle Diameter (mm) | 16.00mm |
| Cutting Edge Effective Length (mm) | 13.00mm |
| Theoretical Cutting Edge Length (mm) | 16.00mm |
| Wiper Edge Length (mm) | 1.60mm |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (mm) | 6.38mm |
| Cutting Edge Count | 8 |
| Insert Rake Angle (Degree) | 15 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M18 |
| Pocket Seat Code of The Cutter | SN.U1606 |
| Insert Size And Shape | SNMU1606 |
| Insert Shape Code | S |
| Material | Carbide |
| Product Type | Milling Insert |
