Product Specifications
| Manufacturer Part Number | 10198746 |

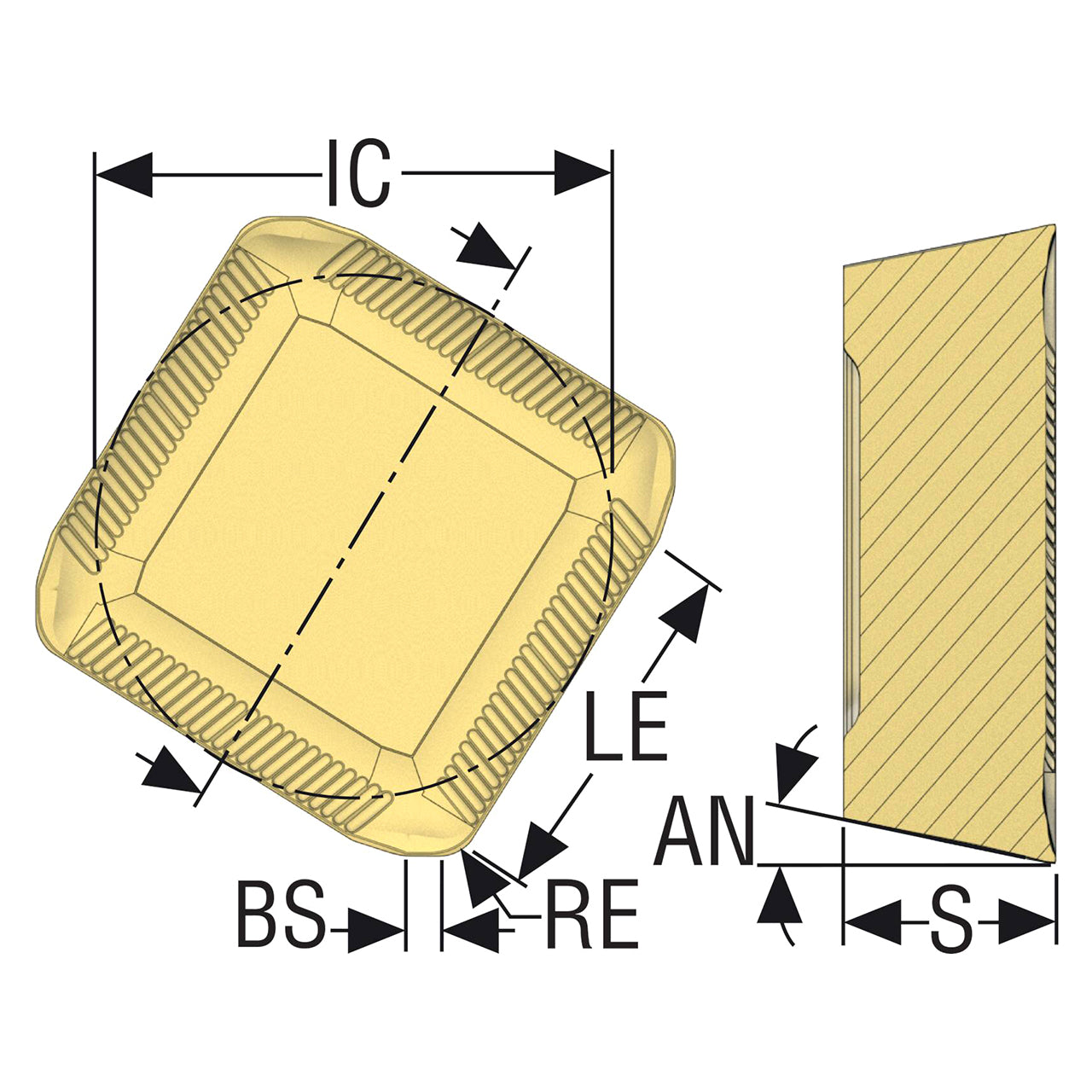

| Inscribed Circle Diameter (mm) | 19.05mm |
| Cutting Edge Effective Length (mm) | 12.70mm |
| Theoretical Cutting Edge Length (mm) | 19.05mm |
| Wiper Edge Length (mm) | 1.80mm |
| Corner Radius (mm) | 1.60mm |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 11 Degree |
| Insert Rake Angle (Degree) | 17 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M17 |
| Pocket Seat Code of The Cutter | SP..1906Z..R |
| Insert Size And Shape | SPER1906ZE.R |
| Insert Shape Code | S |
| Material | Carbide |
| Product Type | Milling Insert |
