Product Specifications
| Manufacturer Part Number | 10198703 |
| Fixing Hole Diameter (mm) | 5.60mm |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (mm) | 9.70mm |
| Theoretical Cutting Edge Length (mm) | 12.70mm |
| Corner Radius (mm) | 3.00mm |
| Insert Thickness (mm) | 6.35mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Rake Angle (Degree) | 15 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD16 |
| Pocket Seat Code of The Cutter | SC.T1206 |
| Insert Size And Shape | SCET1206 |
| Insert Shape Code | S |
| Material | Carbide |

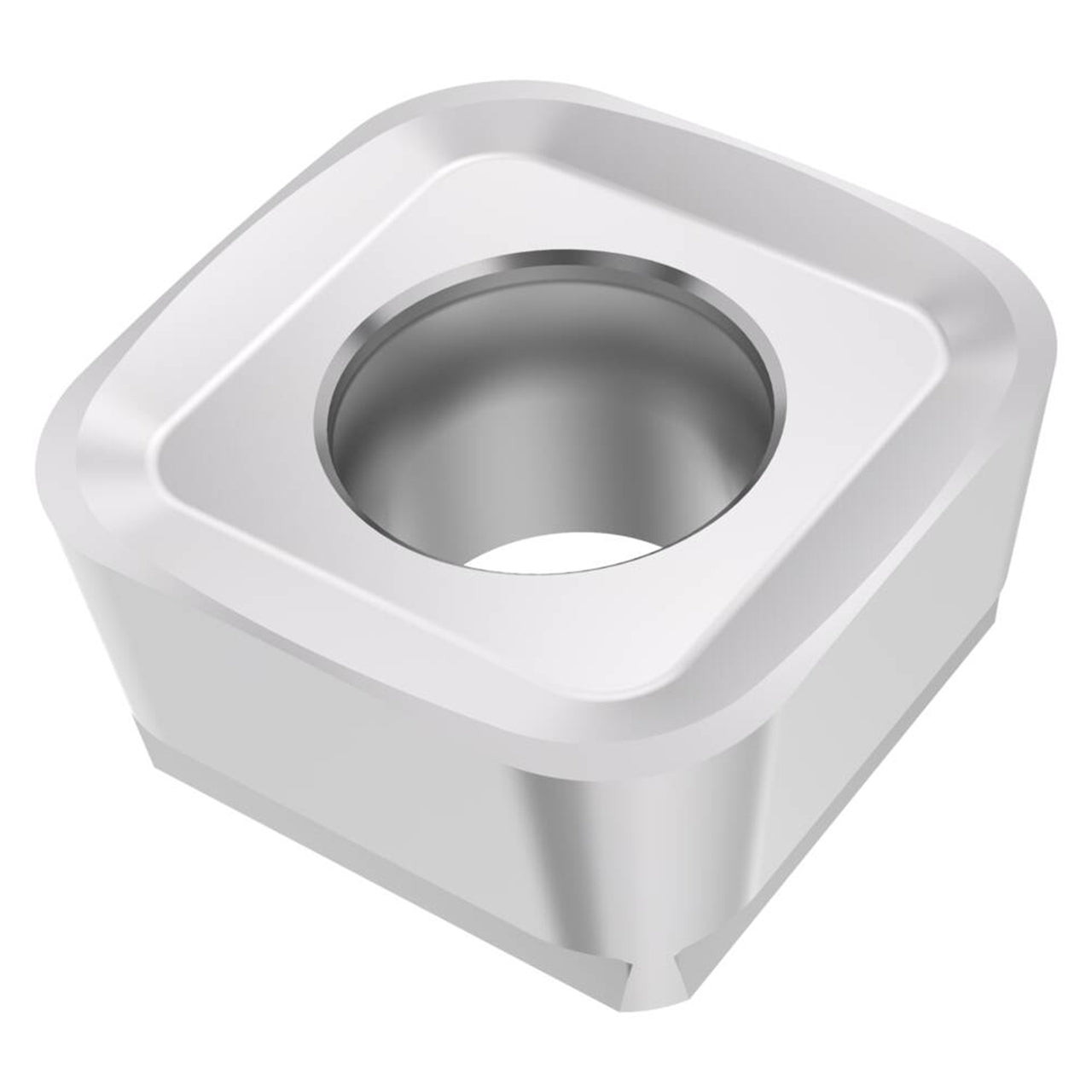

| Product Type | Milling Insert |
