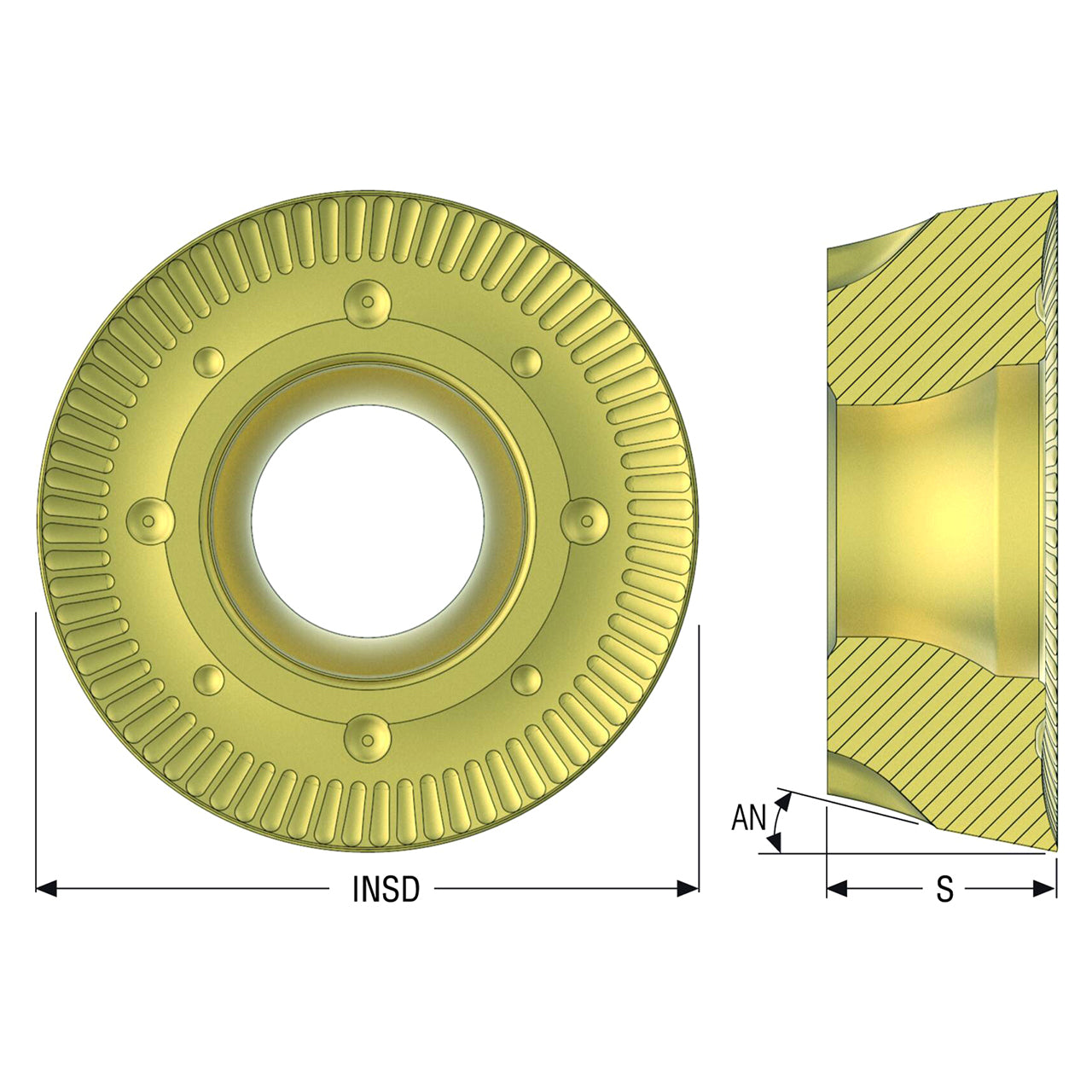

Product Specifications
| Manufacturer Part Number | 10198697 |
| Inscribed Circle Diameter (mm) | 16.00mm |
| Insert Diameter (mm) | 16.00mm |
| Fixing Hole Diameter (mm) | 5.60mm |
| Corner Radius (mm) | 8.00mm |
| Insert Thickness (mm) | 5.56mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 8 |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME11 |
| Insert Size And Shape | RPHT1605 |
| Insert Rake Angle (Degree) | 21 Degree |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Shape Code | R |
| Product Type | Milling Insert |
