Product Specifications
| Manufacturer Part Number | 10198683 |
| Fixing Hole Diameter (mm) | 4.00mm |
| Inscribed Circle Diameter (mm) | 11.18mm |

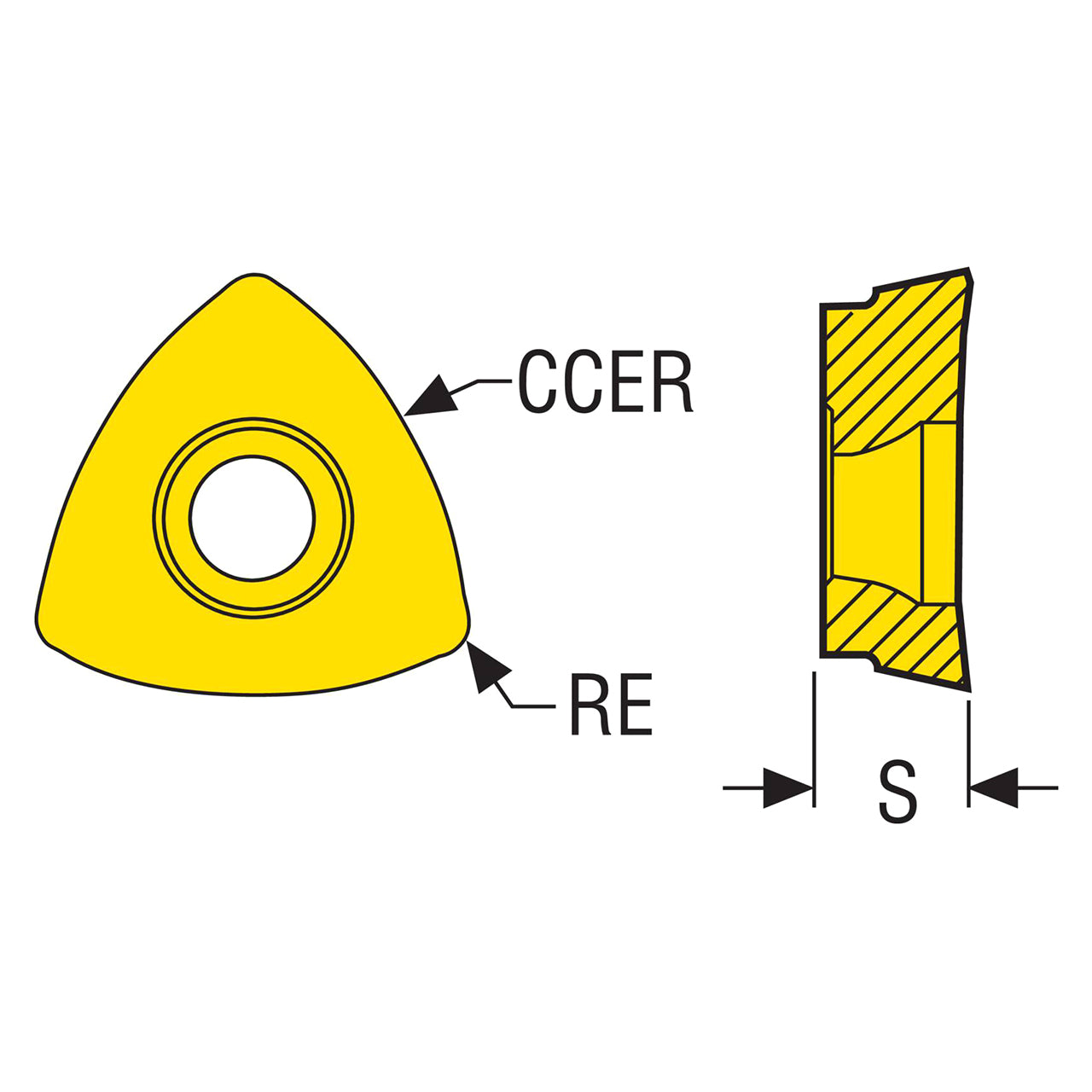

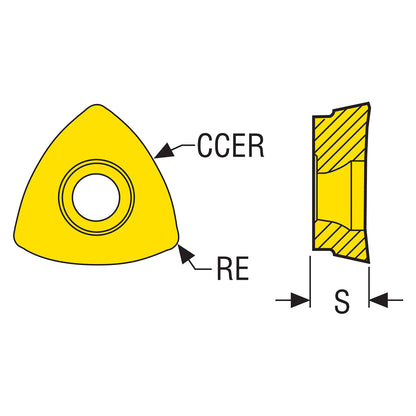

| Curved Cutting Edge Radius (mm) | 16.00mm |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Count | 3 |
| Clearance Angle Major (Degree) | 12 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD11 |
| Pocket Seat Code of The Cutter | 218.19-160 |
| Insert Size And Shape | 218.19-160 |
| Insert Shape Code | 218.19 |
| Material | Carbide |

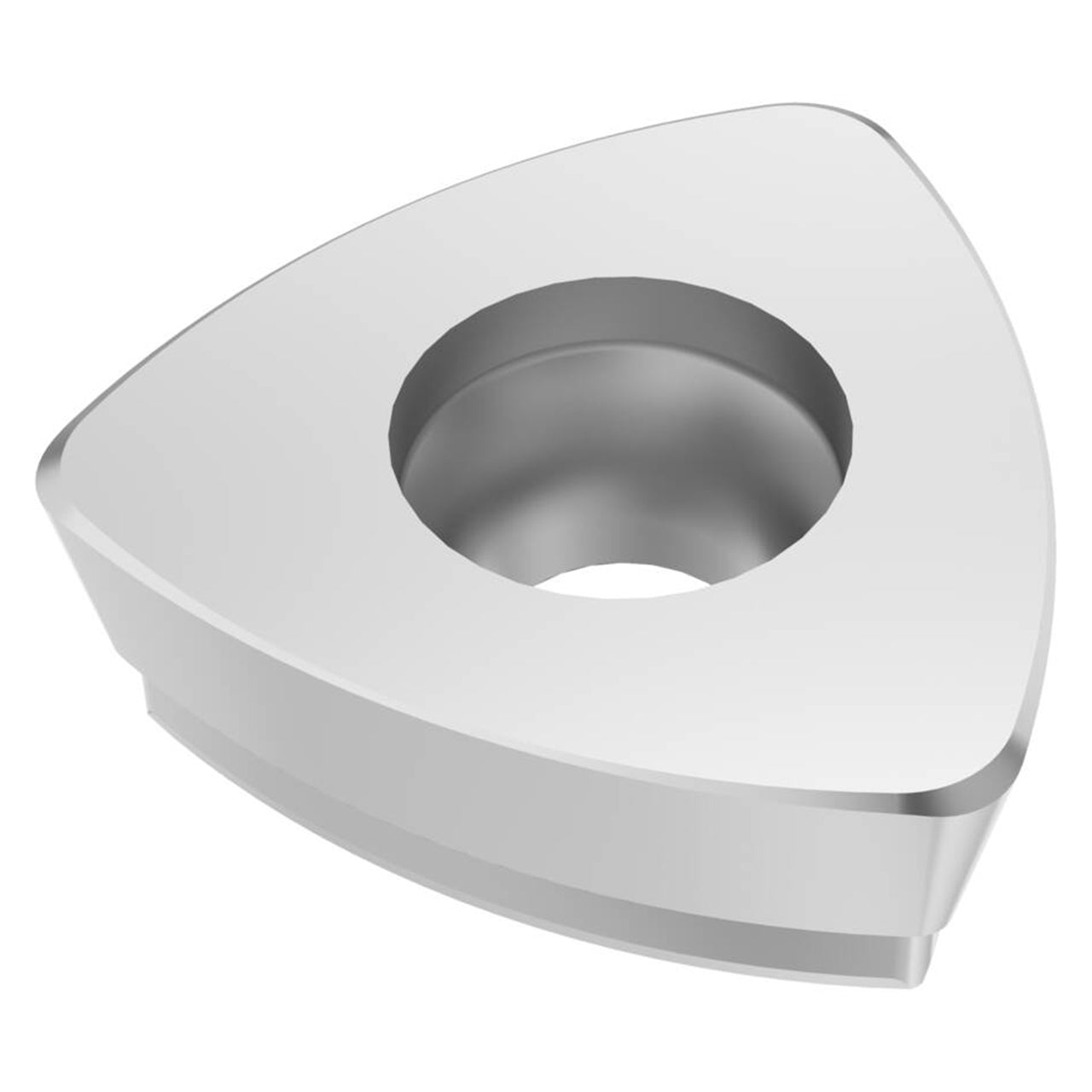

| Product Type | Milling Insert |
