Product Specifications
| Manufacturer Part Number | 10189802 |
| Minimum Cutting Diameter Internal (mm) | 160.00mm |
| Minimum Cutting Diameter Internal 3 (mm) | 175.00mm |

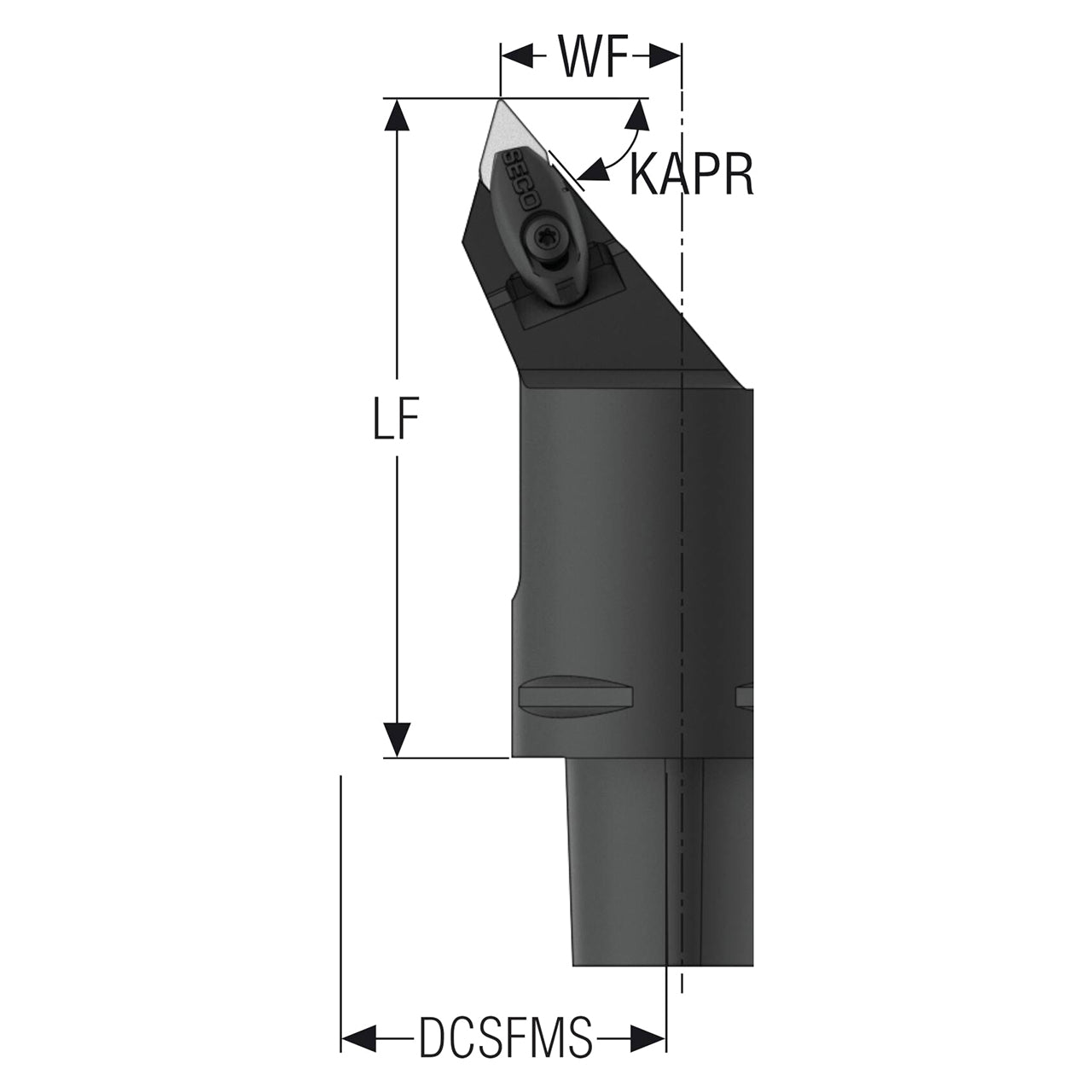

| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (mm) | 120.00mm |
| Maximum Radial Cutting Depth (mm) | 1.89mm |
| Maximum Cutting Depth (mm) | 15.17mm |
| Workpiece Side Body Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 120 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -5.45 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 27 Degree |
| Cutting Direction | Left Hand |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Insert Clamping System | D |
| Tool Cutting Edge Angle Code | M |
| Shank Type | Seco-Capto |
| Insert Shape Code | D |

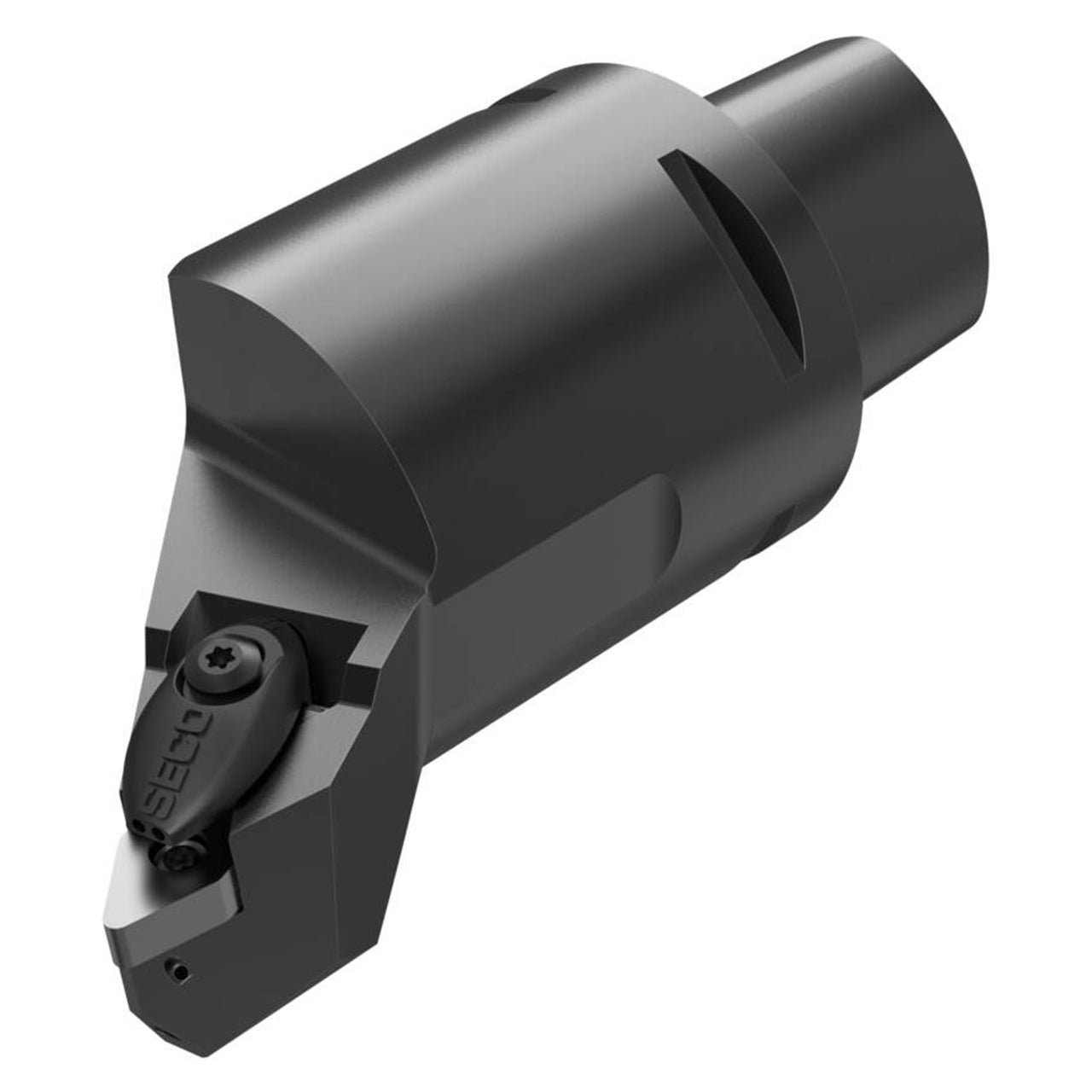

| Product Type | Modular Turning Head |
