Product Specifications
| Manufacturer Part Number | 10189787 |
| Minimum Cutting Diameter Internal (mm) | 140.00mm |

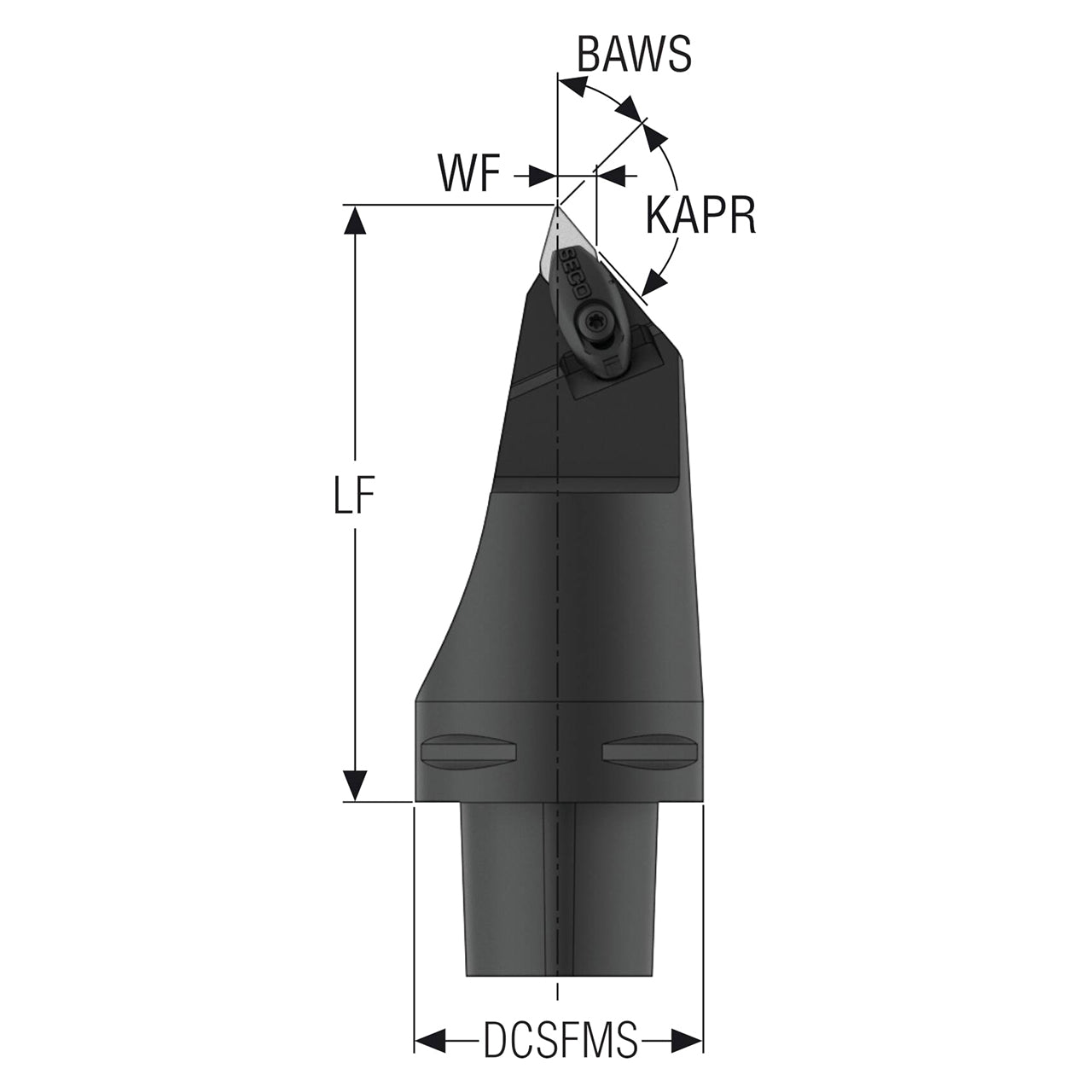

| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Maximum Cutting Depth (mm) | 15.17mm |
| Functional Length (mm) | 130.00mm |
| Workpiece Side Body Angle (Degree) | 45 Degree |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Rake Radial Angle (Degree) | -5.45 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -8.44 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | M |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 120 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Maximum Ramping Angle (Degree) | 27 Degree |
| Insert Shape Code | D |
| Shank Type | Seco-Capto |
| Insert Seat Size Code | 1506 |
| Version (Internal/External/Both) | External |

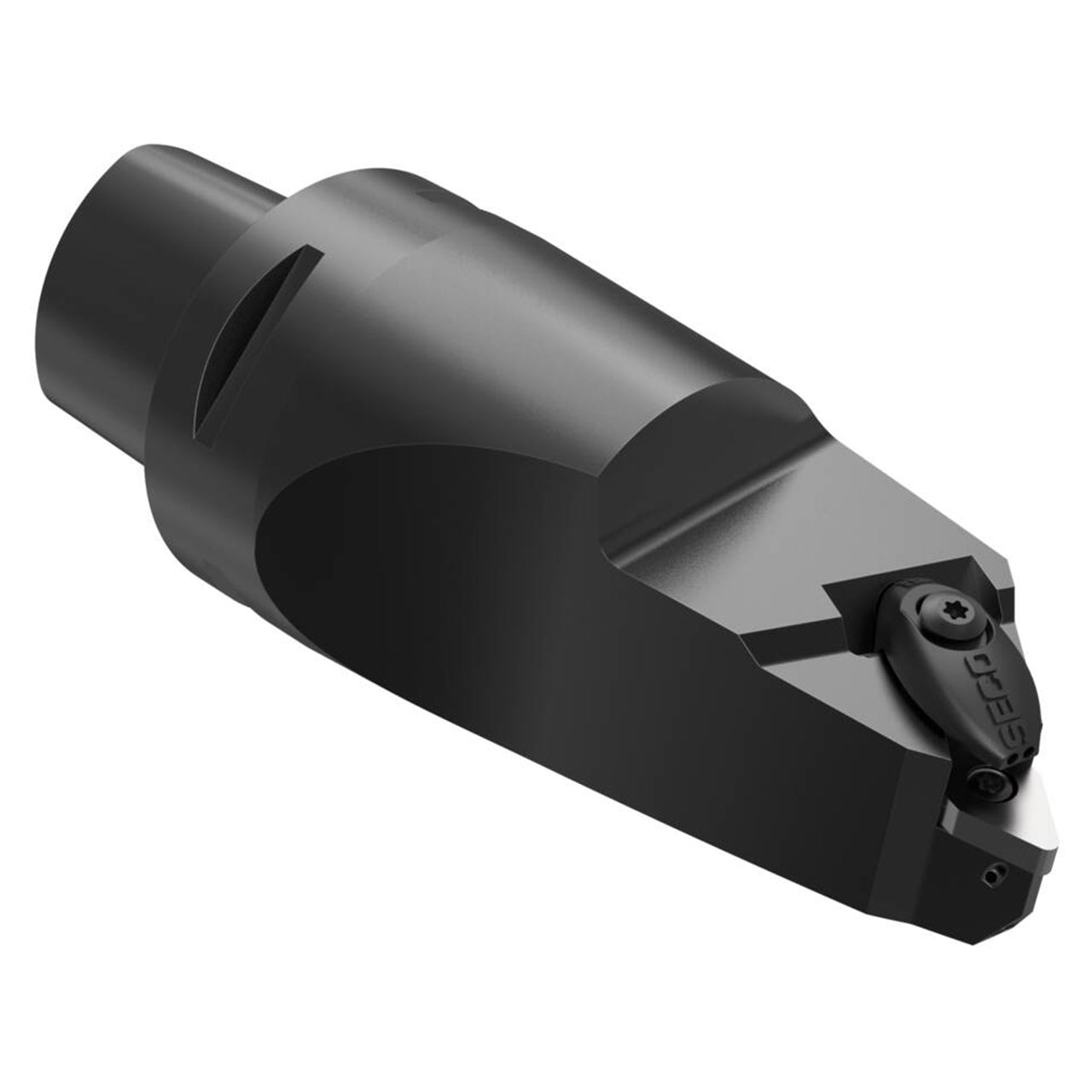

| Product Type | Modular Turning Head |
