Product Specifications

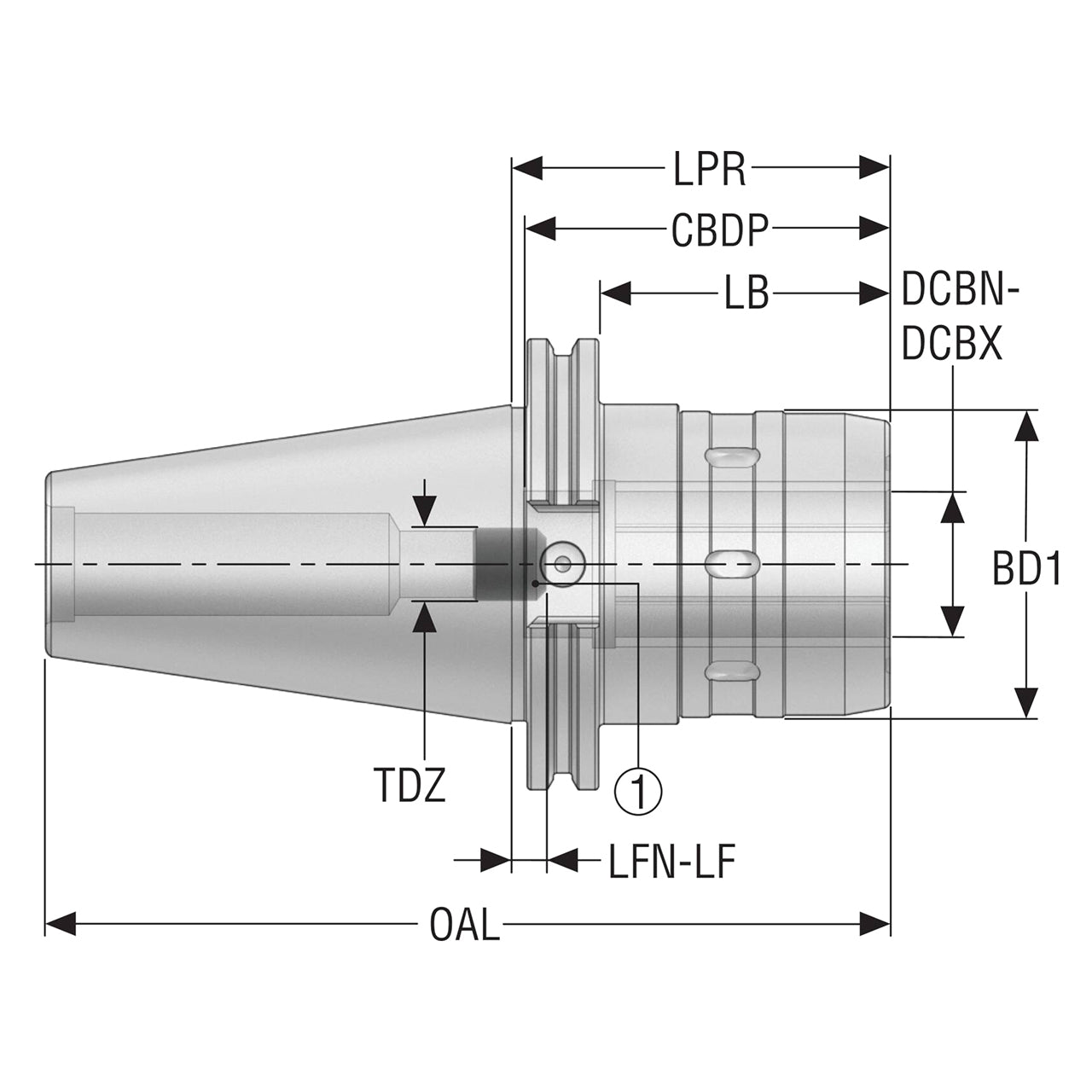

| Manufacturer Part Number | 10185655 |
| Connection Bore Diameter (mm) | 19.05mm |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Body Diameter 1 (mm) | 49.00mm |
| Body Diameter 2 (mm) | 44.70mm |
| Thread Diameter Size | UNF 5/8"-18 |
| Connection Bore Depth (mm) | 57.10mm |
| Keyway Width (mm) | 7.94mm |
| Body Length (mm) | 57.10mm |
| Functional Length (mm) | 18.20mm |
| Minimum Functional Length (mm) | 13.20mm |
| Protruding Length (mm) | 76.20mm |
| Overall Length (mm) | 144.60mm |
| Data Chip Provision | 1 |
| Machine Side Group | CAT40 & CAT Taper-Face |
| Maximum Rotational Speed (rpm) | 15000 rpm |

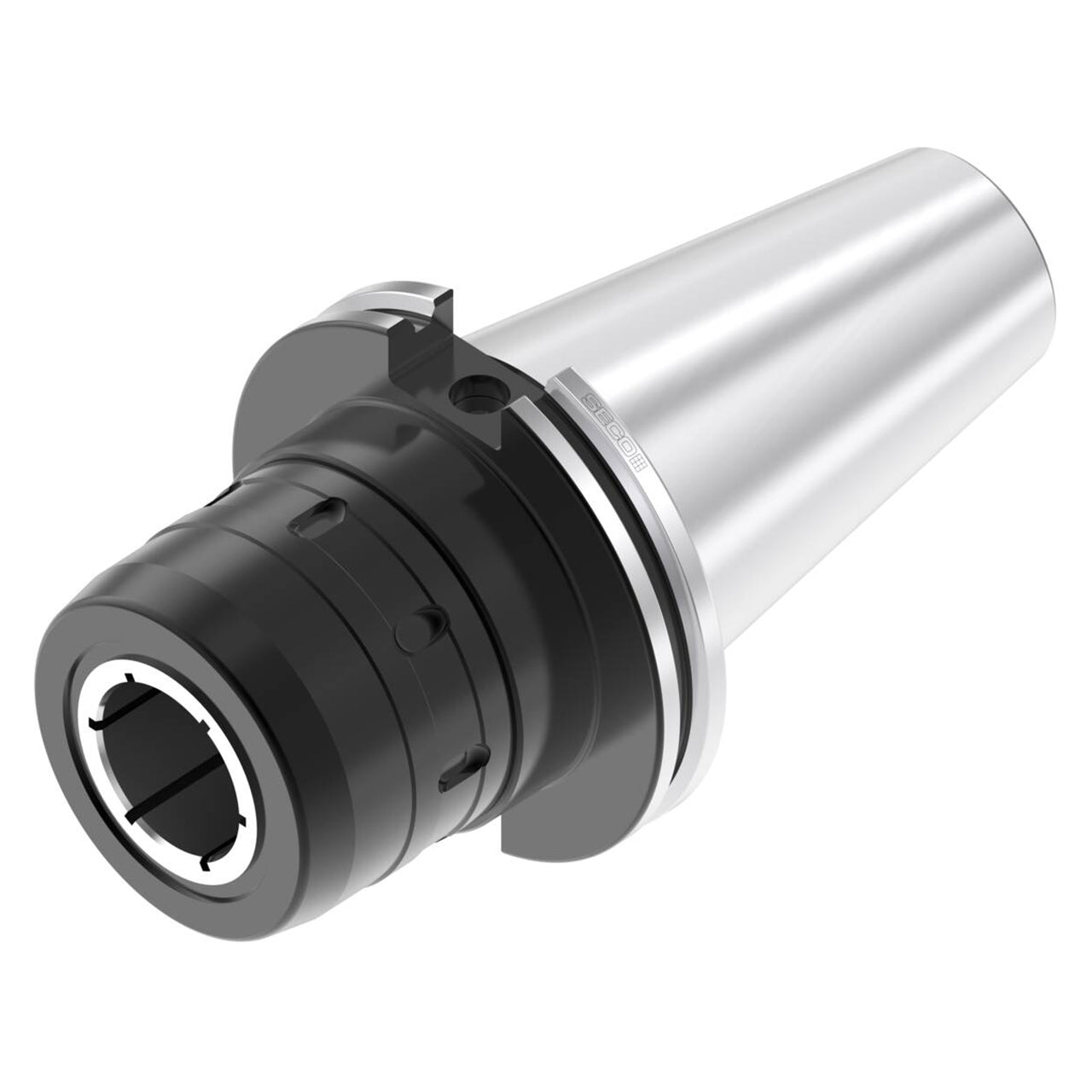

| Product Type | Milling Chuck |
