Product Specifications

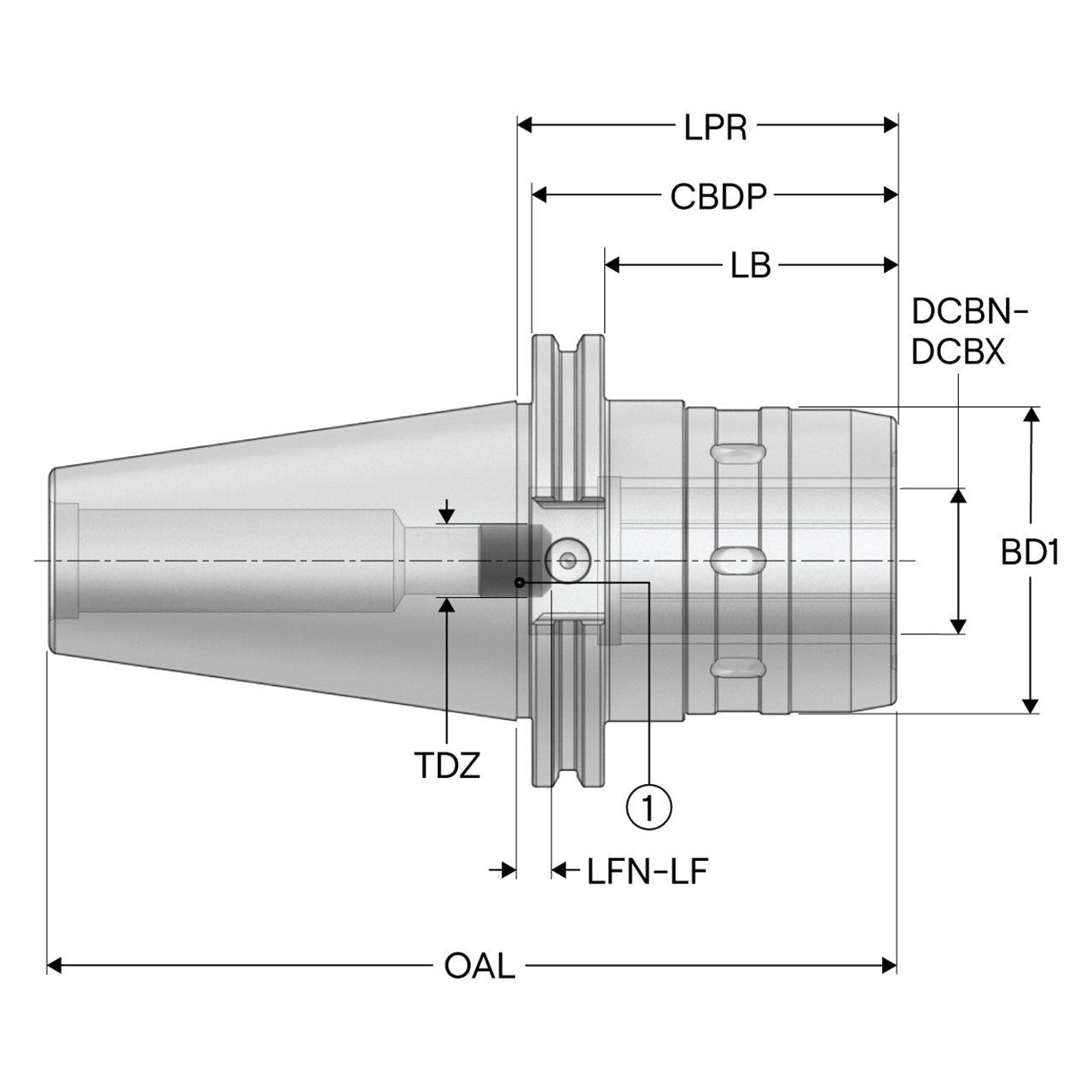

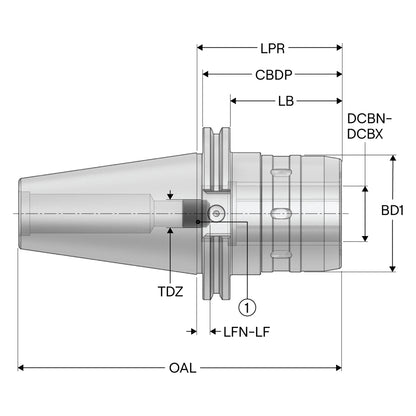

| Manufacturer Part Number | 10185647 |
| Body Diameter 1 (Decimal Inch) | 2.638" |
| Body Diameter 2 (Decimal Inch) | 2.756" |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter Minimum (Decimal Inch) | 0.375" |
| Connection Bore Diameter Maximum (Decimal Inch) | 1.250" |
| Functional Length (Decimal Inch) | 0.299" |
| Protruding Length (Decimal Inch) | 3.250" |
| Overall Length (Decimal Inch) | 7.256" |
| Rotational Speed Maximum | 10000 rpm |
| Product Series | PMC |

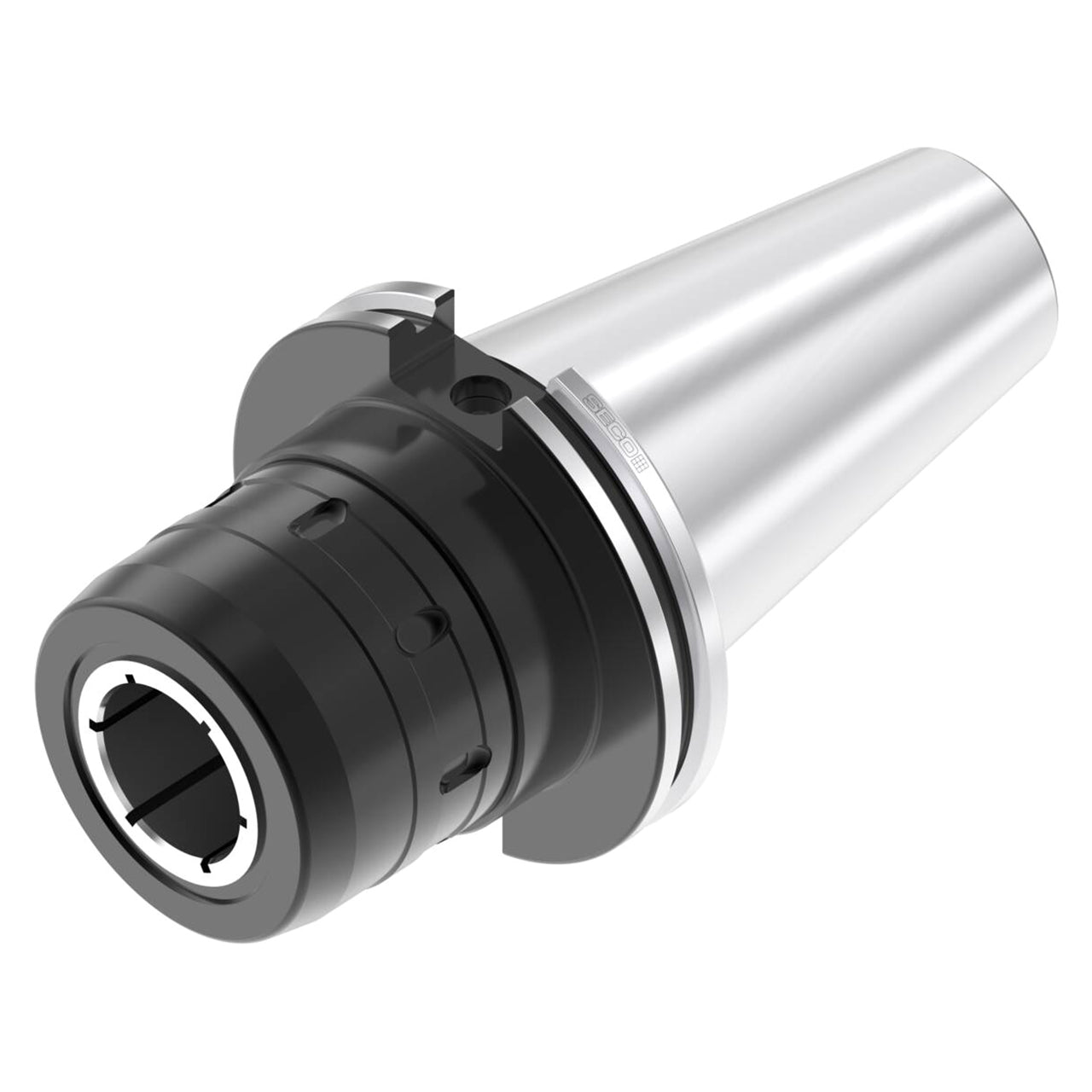

| Product Type | Milling Chuck |
