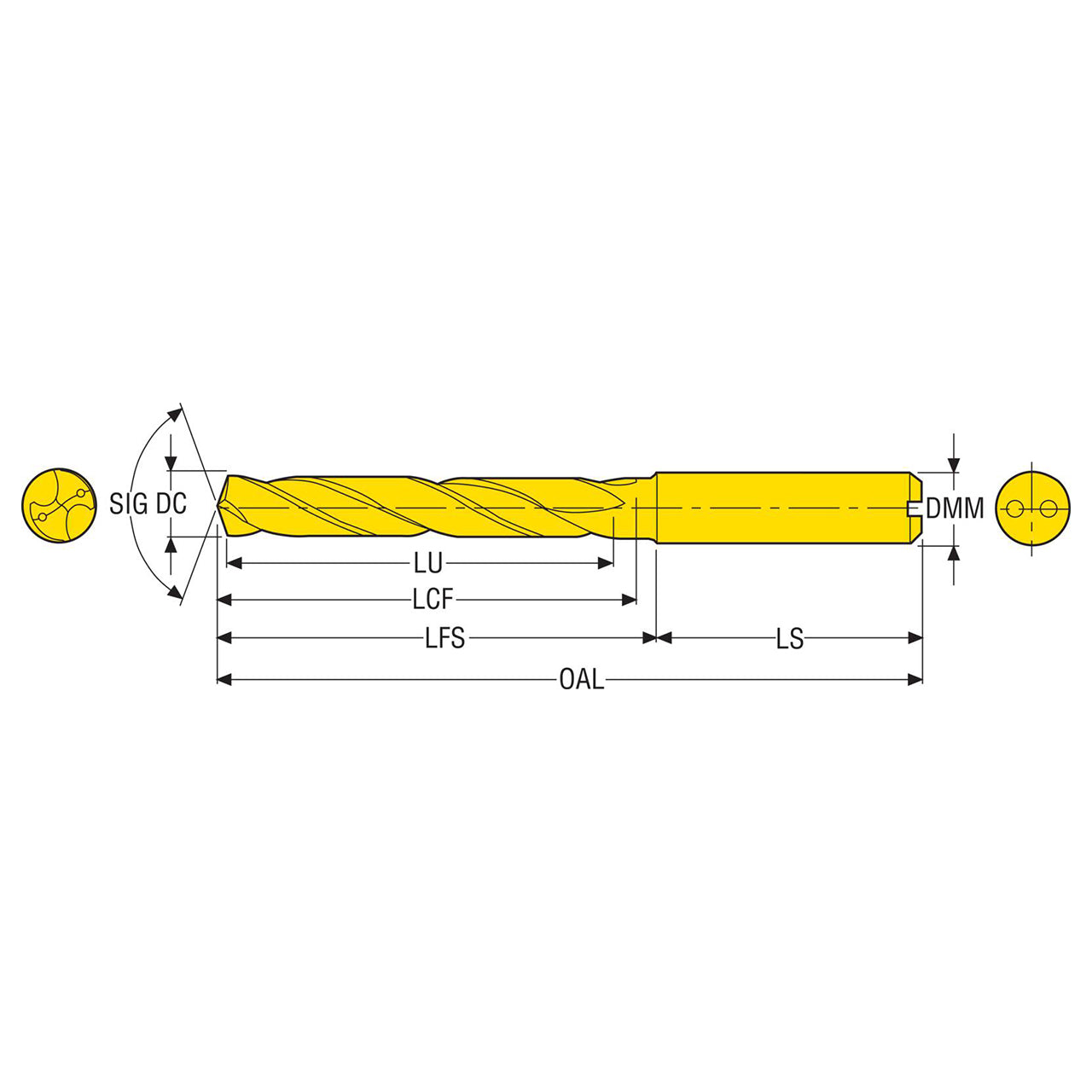

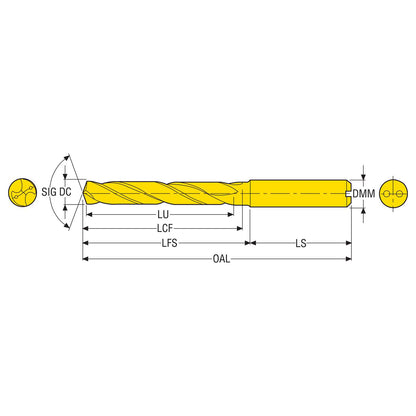

Product Specifications
| Manufacturer Part Number | 10171117 |
| Cutting Diameter (mm) | 11.25mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Shank Length (mm) | 45.00mm |
| Usable Length (mm) | 56.00mm |
| Overall Length (mm) | 118.00mm |
| Point Length (mm) | 2.05mm |
| Corner Chamfer Width (mm) | 0.15mm |
| Shank Type | Cylindrical |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Direction | Right |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Corner Chamfer Angle (Degree) | 35 Degree |
| Point Angle (Degree) | 140 Degree |
| Material | Carbide |
| Product Type | Screw Machine Length Drill Bit |
