Product Specifications
| Manufacturer Part Number | 10164790 |

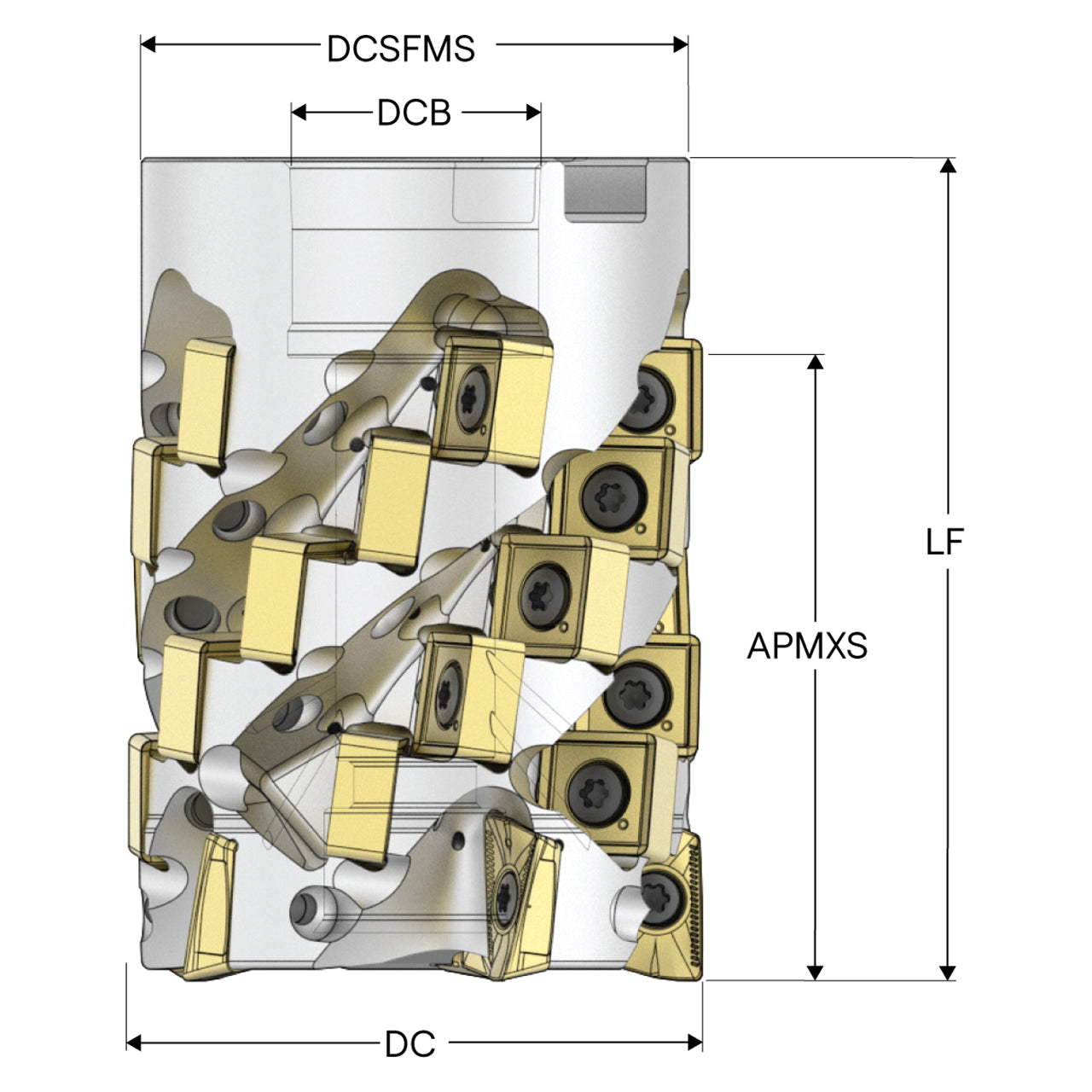

| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 3.110" |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Cutting Diameter (Decimal Inch) | 3.000" |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.795" |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (Decimal Inch) | 4.000" |
| Number of Flutes | 5 |
| Rotational Speed Maximum | 6500 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 5 |
| Product Series | R220.82 |

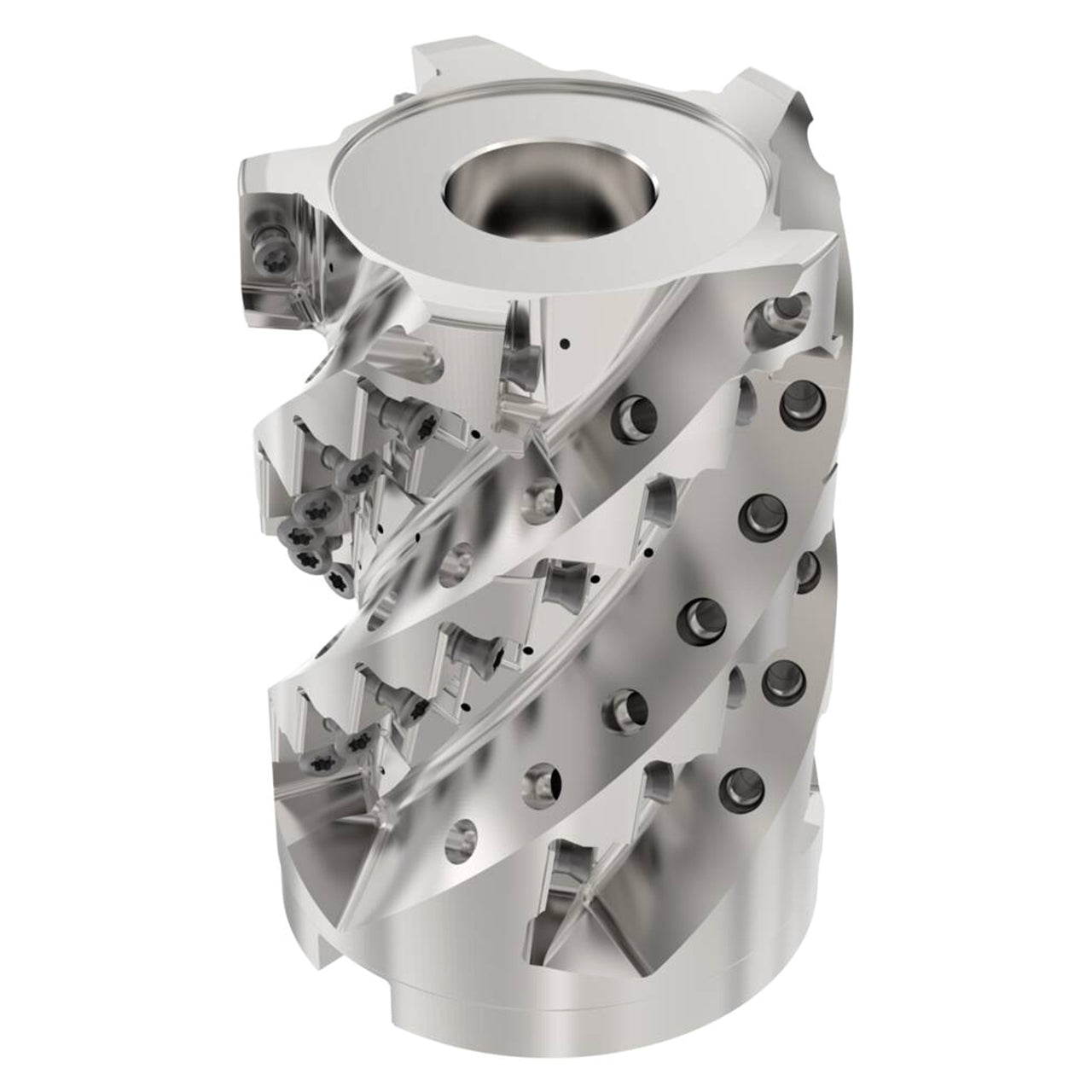

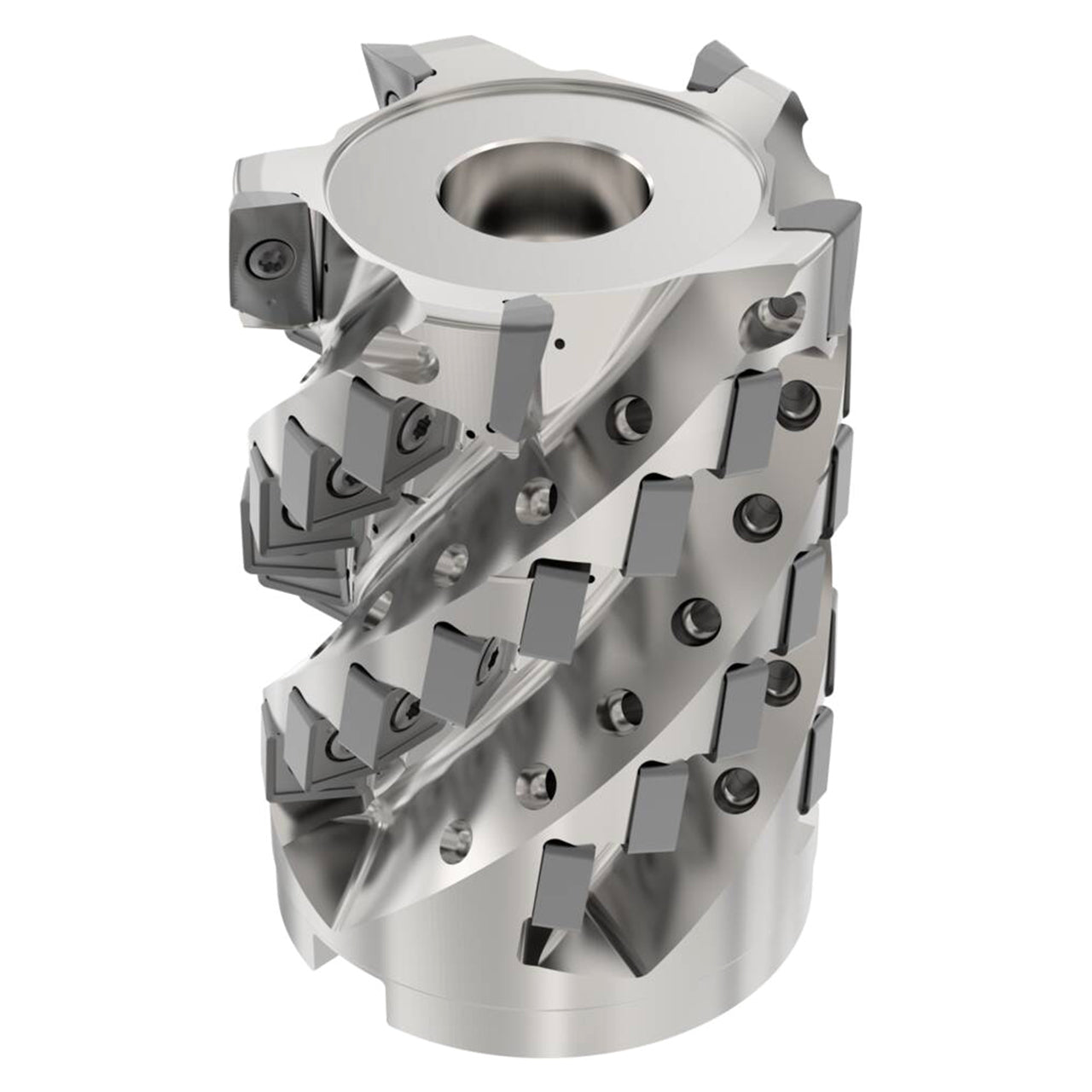

| Product Type | Indexable Square-Shoulder Face Mill |
