Product Specifications
| Manufacturer Part Number | 10155392 |

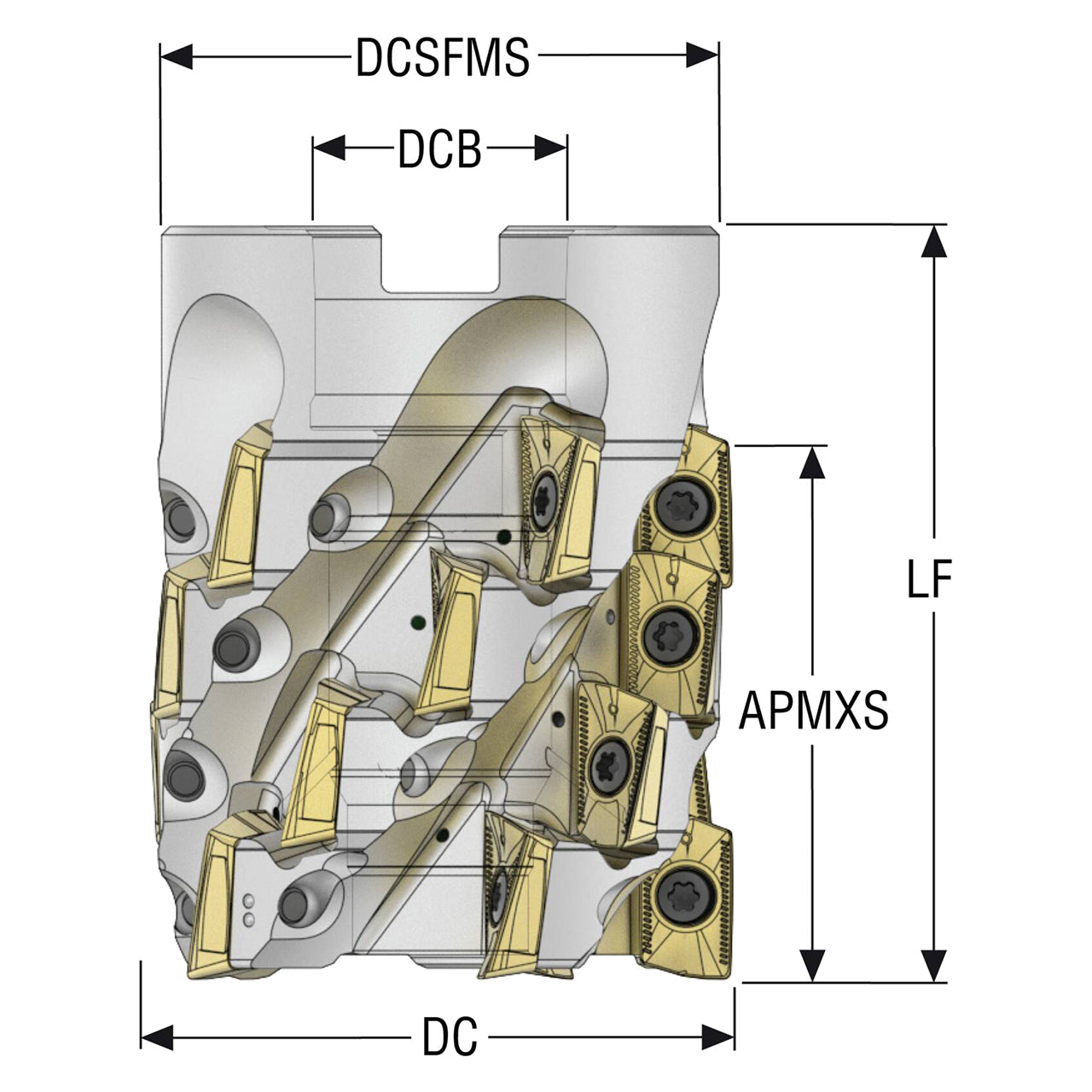

| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.284" |
| Contact Surface Diameter Machine Side (mm) | 58.00mm |
| Functional Length (Decimal Inch) | 3.149" |
| Functional Length (mm) | 79.98mm |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Number of Flute | 5 |
| Insert Shape Code | X |
| Shank Type | Arbor |

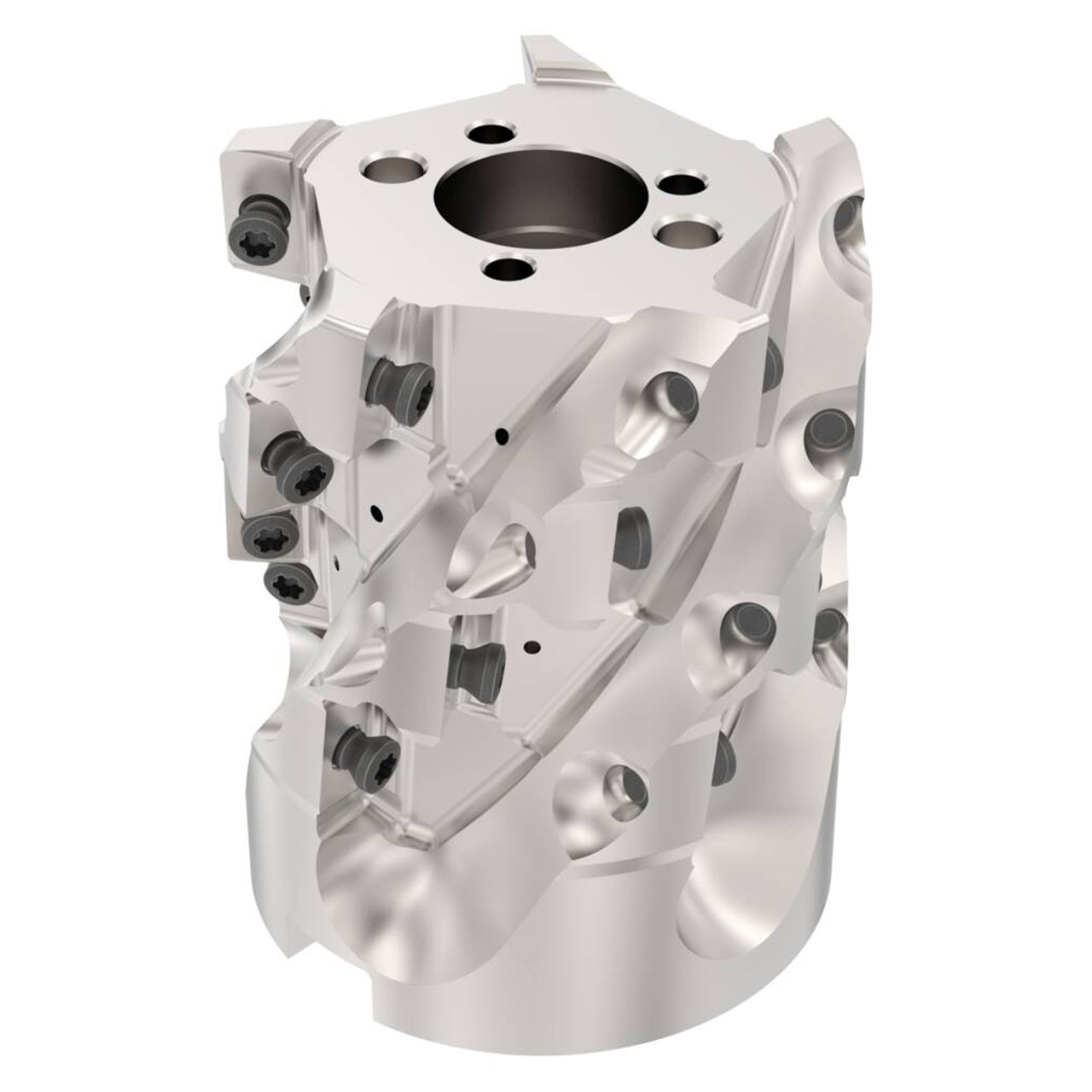

| Product Type | Indexable Square-Shoulder End Mill |
