Product Specifications
| Manufacturer Part Number | 10148419 |
| Fixing Hole Diameter (Decimal Inch) | 0.226" |
| Fixing Hole Diameter (mm) | 5.75mm |

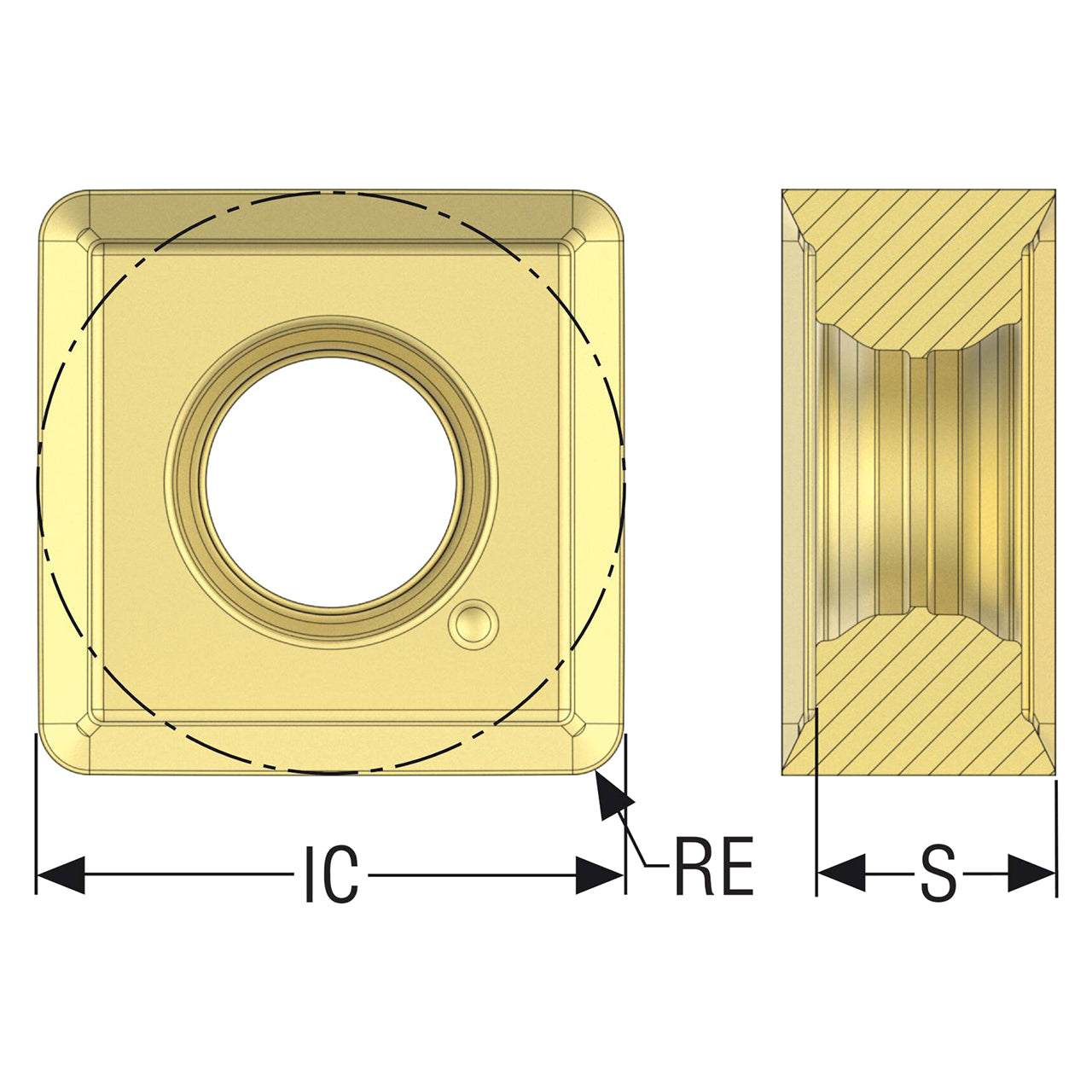

| Inscribed Circle Diameter (Decimal Inch) | 0.535" |
| Inscribed Circle Diameter (mm) | 13.59mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.488" |
| Cutting Edge Effective Length (mm) | 12.40mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.535" |
| Theoretical Cutting Edge Length (mm) | 13.59mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert Thickness (mm) | 5.56mm |
| Insert Thickness 1 (Decimal Inch) | 0.190" |
| Insert Thickness 1 (mm) | 4.82mm |
| Cutting Edge Count | 8 |
| Insert Rake Angle (Degree) | 26 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME10 |
| Pocket Seat Code of The Cutter | SN.U1306 |
| Insert Size And Shape | SNGU1306 |
| Insert Shape Code | S |
| Material | Carbide |

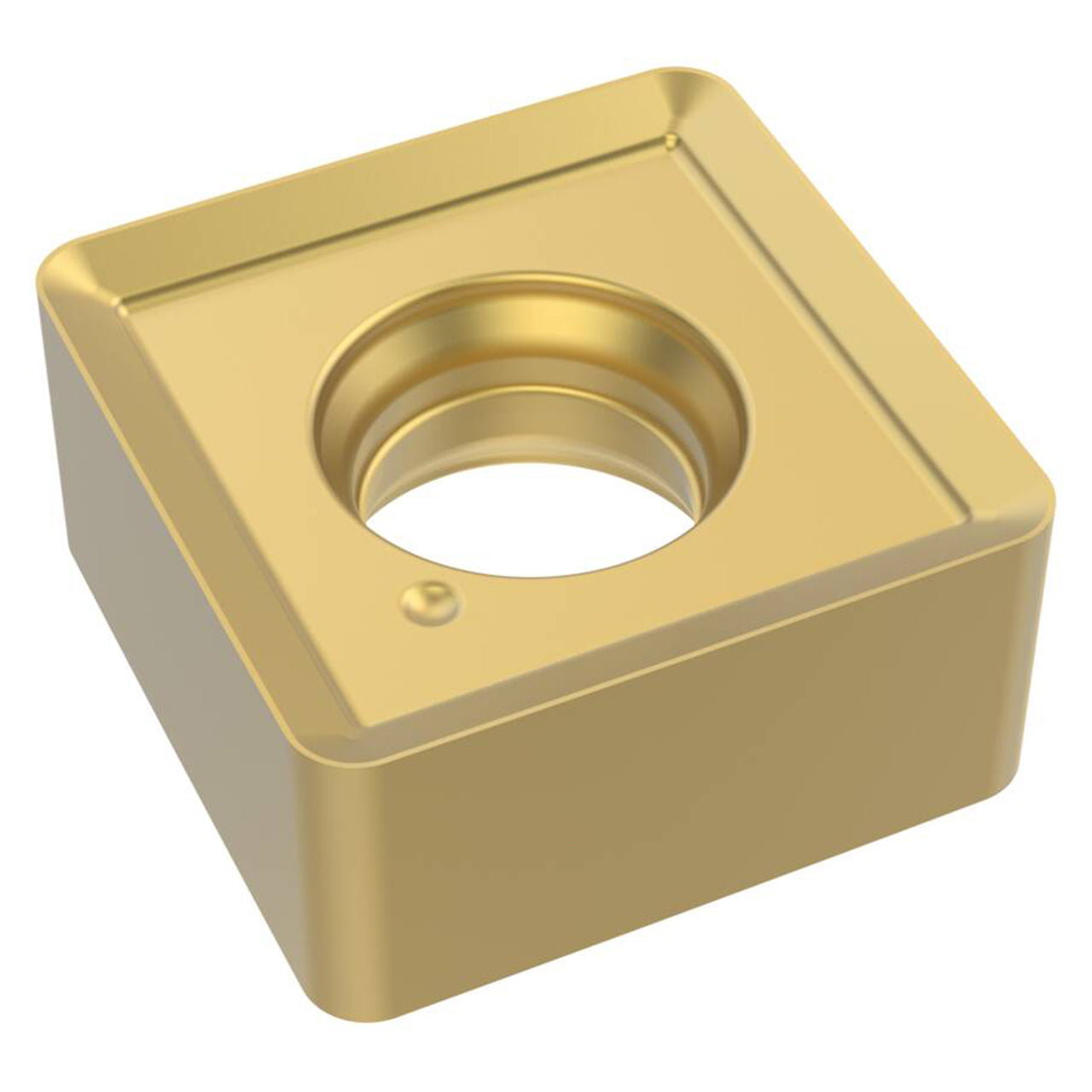

| Product Type | Milling Insert |
