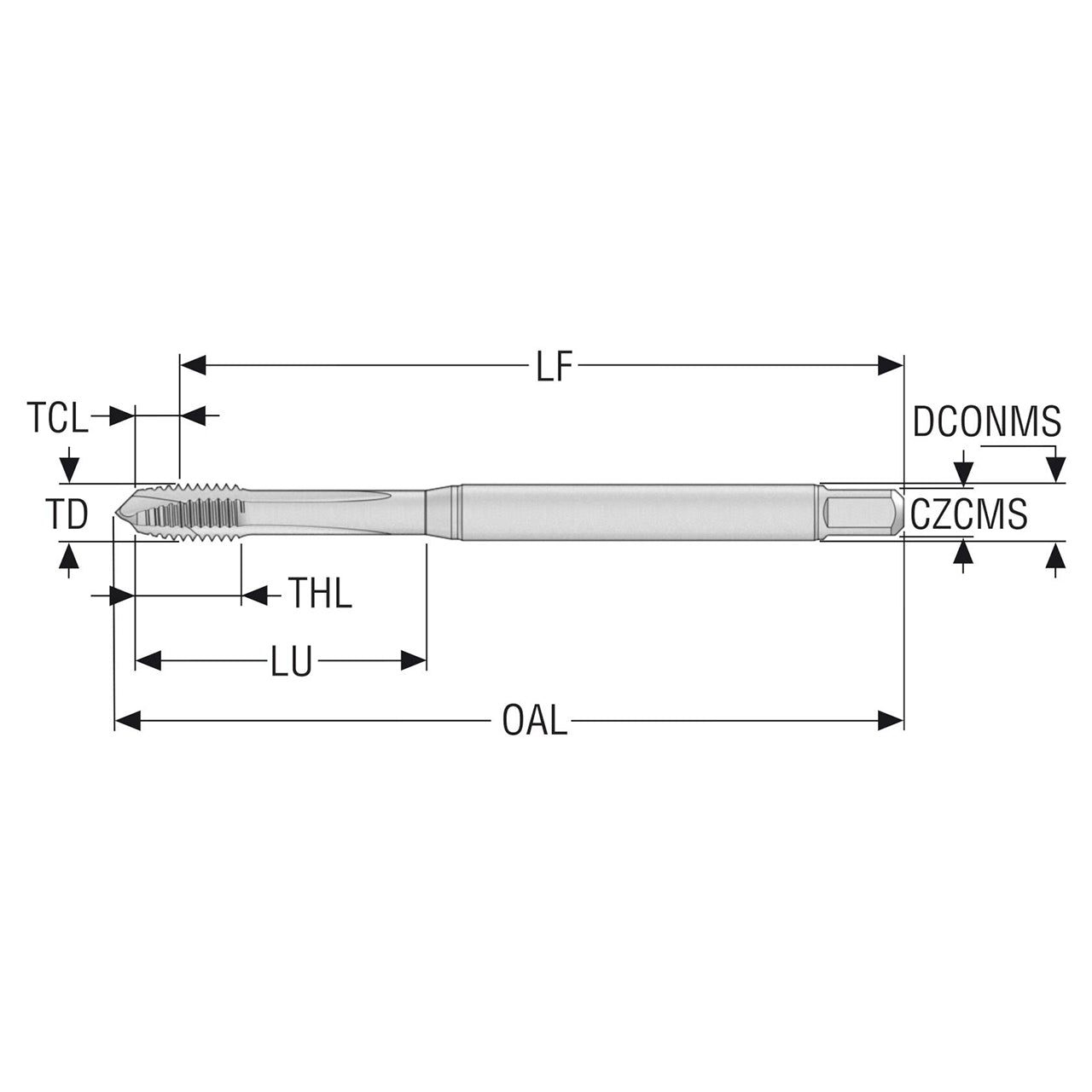

Product Specifications
| Manufacturer Part Number | 10139557 |
| Thread Diameter (Decimal Inch) | 1.041" |
| Thread Diameter (mm) | 26.44mm |
| Threading Chamfer Length (Decimal Inch) | 0.369" |
| Threading Chamfer Length (mm) | 9.36mm |
| Tap Chamfer Length (Decimal Inch) | 0.369" |
| Tap Chamfer Length (mm) | 9.36mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.787" |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (Decimal Inch) | 5.143" |
| Functional Length (mm) | 130.64mm |
| Usable Length (Decimal Inch) | 3.032" |
| Usable Length (mm) | 77.00mm |
| Overall Length (Decimal Inch) | 5.512" |
| Overall Length (mm) | 140.00mm |
| Thread Length (Decimal Inch) | 1.102" |
| Thread Length (mm) | 28.00mm |
| Thread Diameter Size | G3/4-14 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.965" |
| Recommended Premachined Hole Diameter (mm) | 24.50mm |
| Connection Size Code | 20.00X16.00 |
| Connection Size Code Machine Side | 20.00X16.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.971" |
| Maximum Premachined Hole Diameter (mm) | 24.66mm |
| Minimum Threads Per Inch (mm) | 14.00mm |
| Maximum Threads Per Inch (mm) | 14.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Threading Chamfer Type | B |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiAIN+TiN |

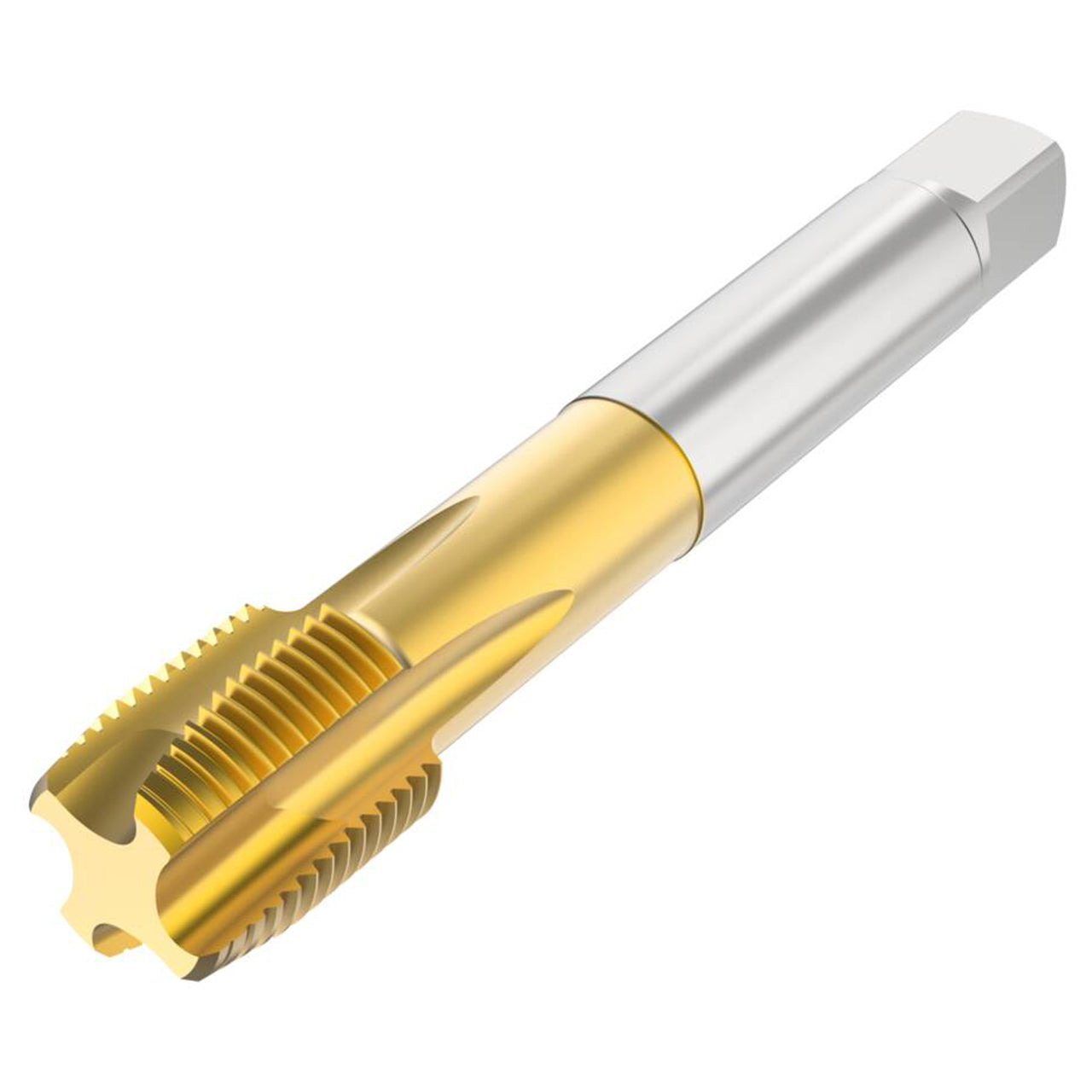

| Product Type | Straight Flute Tap |
